DX80N9X2S-P7C Banner I/O Modules

DX80N9X2S-P7C on Powermatic Associates
Banner
  • DX80N9X2S-P7C
  • DX80N9X2S-P7C

Part#:DX80N9X2S-P7C

Alt. Part#:18806

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

DX80 Performance 900 MHz Node 1 W IP20; FlexPower External Antenna RS485; Up to 12 Discrete NPN IO; External Terminals

Product Details

  • Weight
    385.5532 g
  • Country Of Origin
    US
  • Wireless
    Yes
  • RS-232
    No
  • RS-485
    Yes
  • PROFINET
    No
  • Modbus/TCP
    No
  • Point-to-Point Topology
    Yes
  • Star Topology
    Yes
  • Relative Humidity
    95%
  • Hazardous/Intrinsically Safe Classification
    Class I, Division 2/Zone 2; ATEX Zone 2
  • Max Temp Operating Conditions
    80
  • 1-wire Serial Interface
    No
  • Wireless Radio Frequency
    900 MHz
  • Modbus RTU
    No
  • EtherNet/IP
    No
  • Feature: Hazardous Area
    Yes
  • Tree Topology
    No
  • Point-to-Multipoint Topology
    Yes
  • Min Operating Temperature ( °C)
    -20
  • Ships With Battery
    No
  • Max Operating Temperature ( °C)
    80
  • Min Temp Operating Conditions
    -20
  • LCD Display
    Yes
  • Environmental Rating (NEMA)
    NEMA 1
  • Input Details
    12 NPN (not exceed 12 I/O points)
  • Environmental Rating (IP)
    IP20
  • Discrete Inputs
    Yes
  • Power Supply
    10-30 V dc or 3.6-5.5 V dc low power option
  • Discrete Outputs
    Yes
  • Output Details
    12 NMOS (not exceeding 12 I/O points)
  • Device Type
    Node
  • Input/Output
    Discrete
  • Housing Style
    External Terminals
  • Power
    Flex Power

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DX80N9X2S-P7C on Powermatic Associates is $699.00. Order now.

About the product

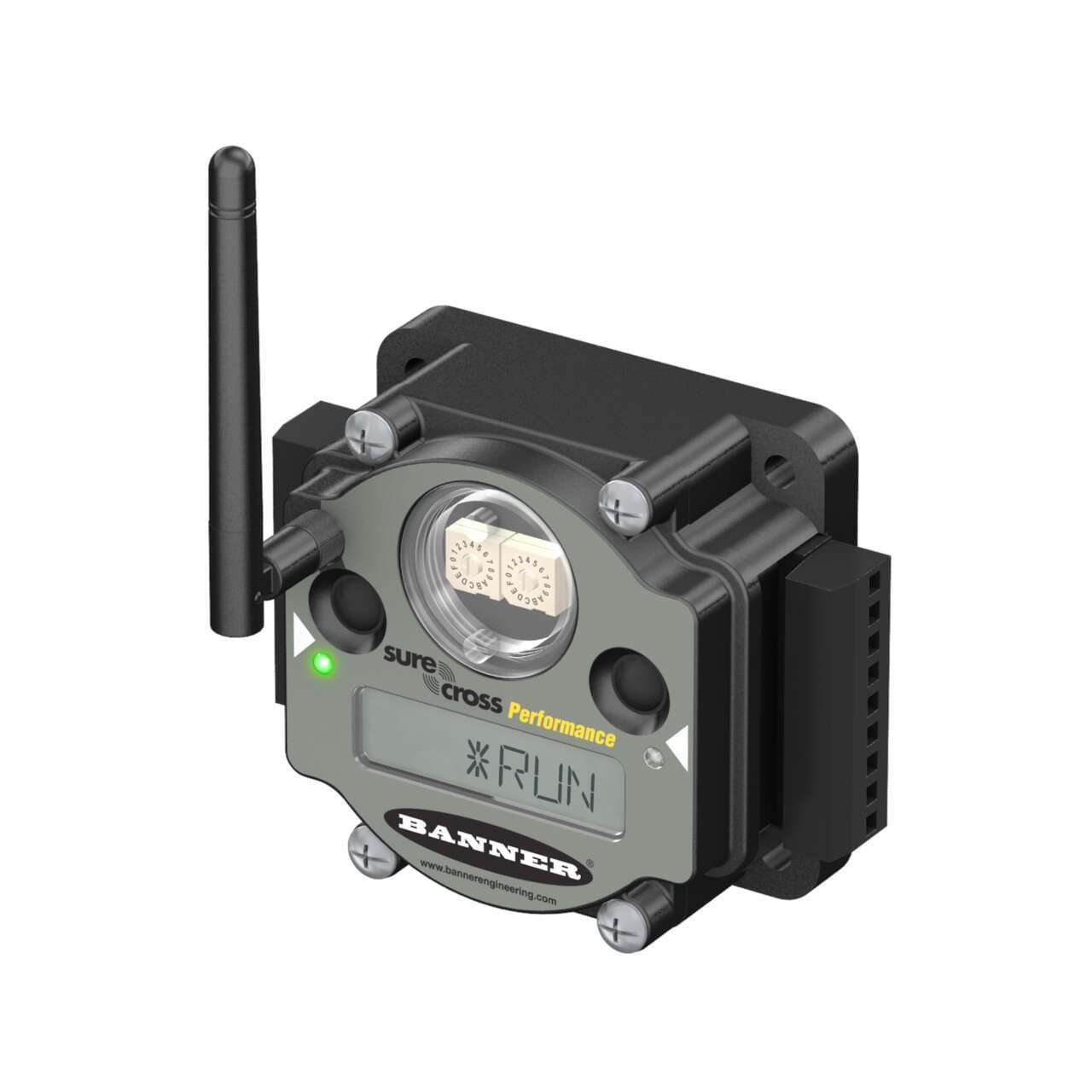

Banner Engineering DX80N9X2S-P7C is a Remote Terminal Unit (RTU) designed for surface mounting. It features a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. This unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 and NEMA 1. With dimensions of H44.5mm x W103.3mm x D80.1mm, it has a rectangular shape. The DX80N9X2S-P7C includes 12 digital inputs (30Vdc 3mA; Sinking) that can also function as digital NMOS 100mA 30Vdc outputs. It is part of the SureCross DX80 series and is designed as a performance node with 2 buttons, 2 bi-color LEDs for Ex e II applications, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology. Connection is facilitated through detachable screw-clamp connectors and an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) and operates on a 900MHz ISM band 1W frequency, capable of a maximum transmission distance of 9.6km at nominal emission power.

DX80N9X2S-P7C Related Documents

155286.pdf
