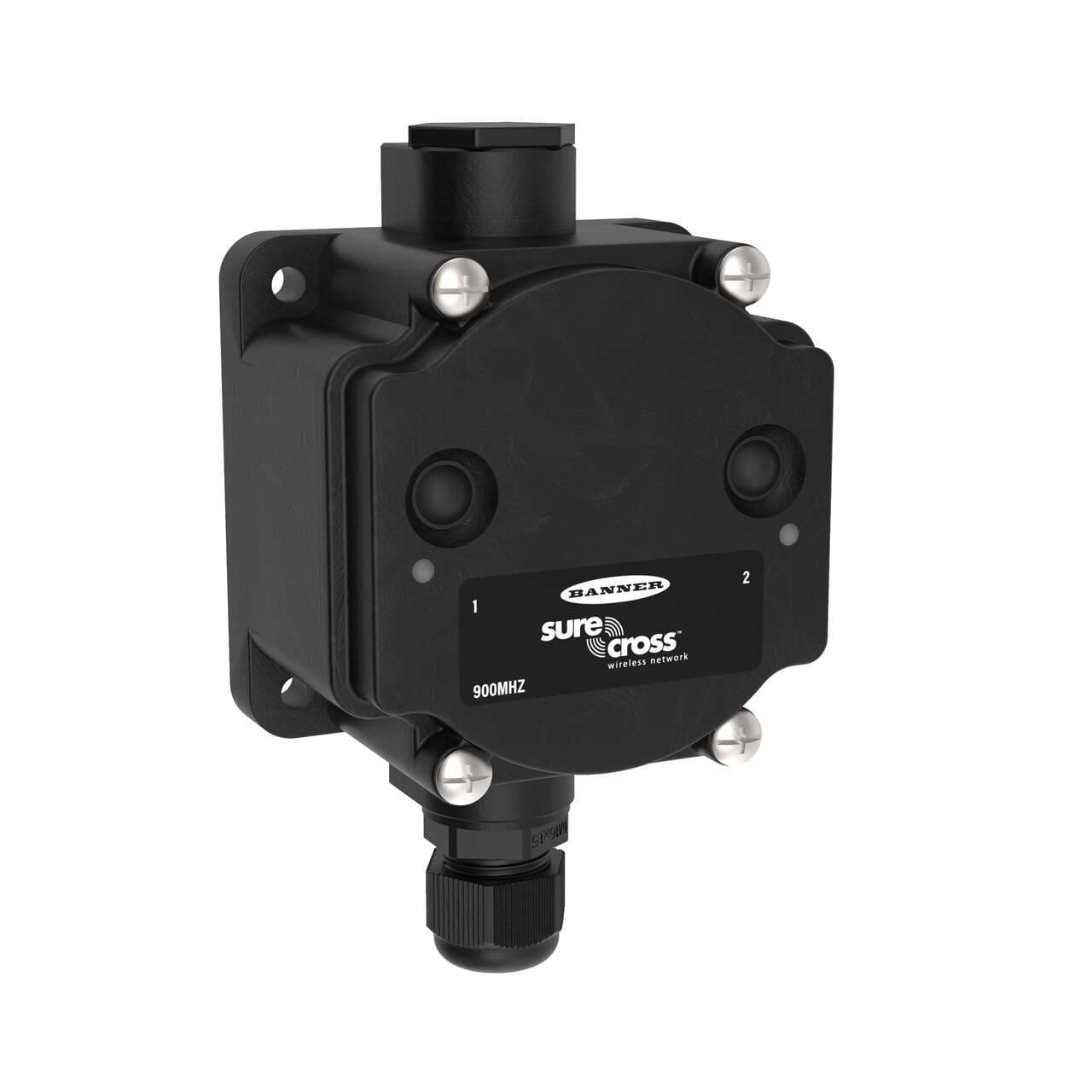

DX80N9X1W-P14L Banner I/O Modules

DX80N9X1W-P14L on Powermatic Associates
Banner

Part#:DX80N9X1W-P14L

Alt. Part#:803747

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

DX80 Performance 900 MHz Node 1 W; Internal Battery Internal Antenna; Input: 1 Configurable Discrete, 1 Analog Voltage (Configurable to Current), 1 Thermistor; 1 Switch Power Output; No LCD No Rotary Dials

Product Details

  • Weight
    517.09488 g
  • Country Of Origin
    US
  • RS-485
    Yes
  • Wireless Radio Frequency
    900 MHz
  • 1-wire Serial Interface
    No
  • Wireless
    Yes
  • Point-to-Multipoint Topology
    Yes
  • RS-232
    No
  • Modbus RTU
    Yes
  • Application: Object Counting
    Yes
  • PROFINET
    No
  • Modbus/TCP
    No
  • Application: Temperature Input
    Yes
  • Feature: Hazardous Area
    No
  • EtherNet/IP
    No
  • Tree Topology
    No
  • Star Topology
    Yes
  • Ships With Battery
    Yes
  • Point-to-Point Topology
    Yes
  • Environmental Rating (IP)
    IP67
  • Min Temp Operating Conditions
    -40
  • Max Temp Operating Conditions
    85
  • Relative Humidity
    95%
  • Environmental Rating (NEMA)
    NEMA 6
  • Power Supply
    D Cell Lithium Battery
  • Output Details
    Switch Power
  • Housing Style
    Integrated Battery
  • Input Details
    Configurable discrete, configurable analog, thermistor, asynchronous counter
  • Discrete Inputs
    Yes
  • Analog Inputs
    Yes
  • Input/Output
    Analog & Discrete
  • Device Type
    Node
  • Power
    Battery

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DX80N9X1W-P14L on Powermatic Associates is $499.00. Order now.

About the product

Banner Engineering DX80N9X1W-P14L is a Remote Terminal Unit (RTU) from the SureCross DX80 series, designed with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 and NEMA 6. This unit has dimensions of H56.6mm x W106.7mm x D80.9mm and features a rectangular shape. It includes 1 x switch power output for digital or analog signals, 1 x analog input (0-20mA / 0-10Vdc; 12-bit), 1 x analog input for a Thermistor 10kΩ, and 1 x digital input (30Vdc 3mA; PNP/NPN). The DX80N9X1W-P14L utilizes FHSS (Frequency Hopping Spread Spectrum) technology, has 2 x buttons, 2 x bi-color LEDs for design, and a wiring chamber with screw-clamp connections plus 2 x 1/2" NPT threaded cable accesses for connectivity. It is powered by a 3.6Vdc internal battery and operates on a 900MHz ISM band frequency with a 1W power output, capable of a maximum transmission distance of 9.6km at nominal emission power. The housing is black.
