DX80N9X1S-P4E Banner I/O Modules

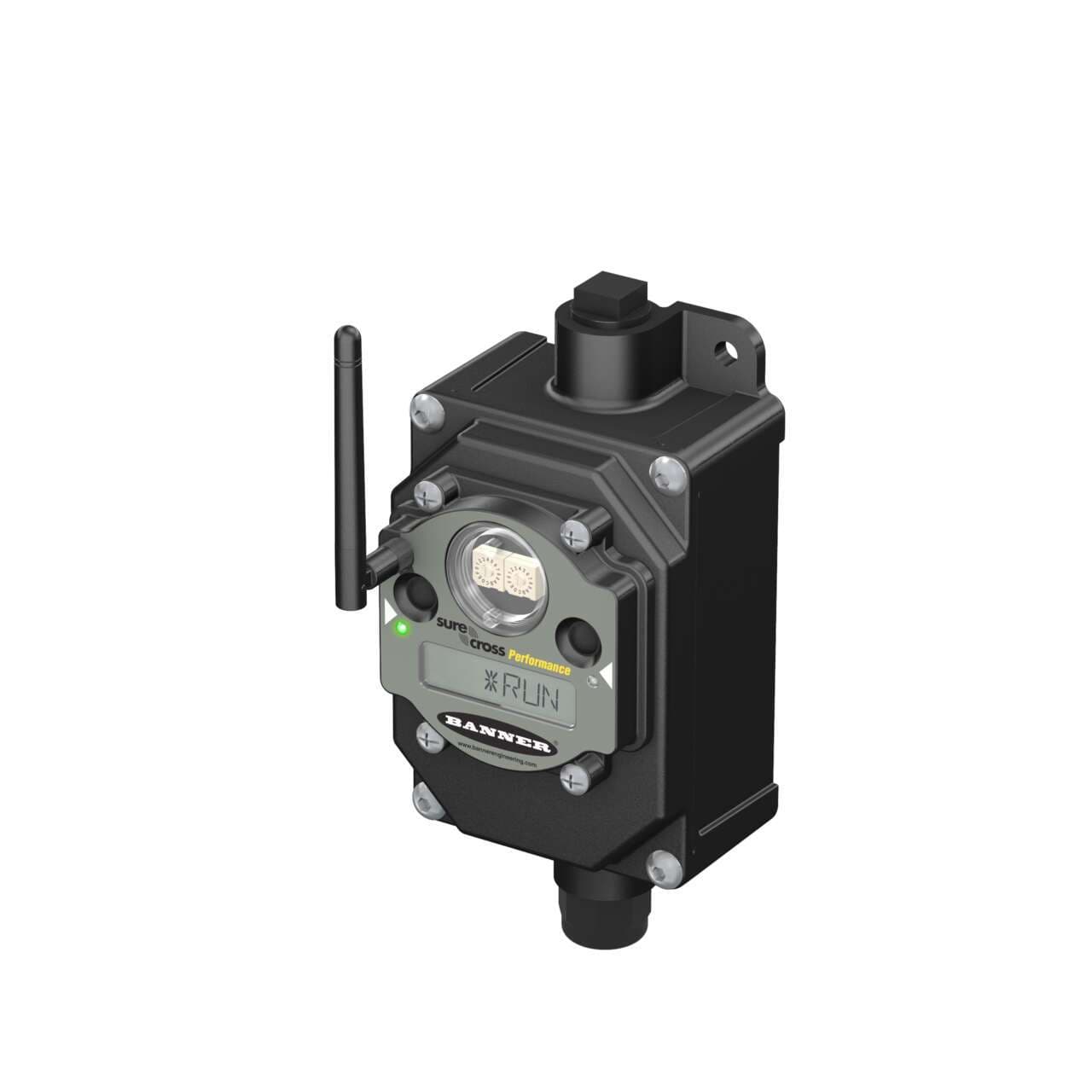

Banner Engineering DX80N9X1S-P4E is a Remote Terminal Unit (RTU) designed for surface mounting. It features a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. This unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP65 and NEMA 4X. With dimensions of H81.3mm x W167.4mm x D87.6mm, it includes 4 analog inputs for 3-wire RTD Pt100 probes. The DX80N9X1S-P4E operates on a 900 MHz transmission frequency and has a rectangular shape. As part of the SureCross DX80 series, it functions as a performance node and is designed with 2 buttons, 2 bi-color LEDs for Ex e II applications, and an environmental housing that includes an internal battery. It utilizes FHSS (Frequency Hopping Spread Spectrum) technology for communication. Connection is facilitated through a wiring chamber with screw-clamp connections and 2 x 1/2" NPT threaded cable accesses, alongside an RP-SMA connector. The supply voltage requirement is 10-30Vdc (12Vdc-24Vdc nom.), and it operates on the 900MHz ISM band with 1W power, capable of a maximum 9.6km transmission distance at nominal emission power.
