DX80N9Q120PPB11 Banner I/O Modules

DX80N9Q120PPB11 on Powermatic Associates
Banner
  • DX80N9Q120PPB11
  • DX80N9Q120PPB11

Part#:DX80N9Q120PPB11

Alt. Part#:806113

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

Wireless Q120 Pendant Node 900 Mhz; Integrated Battery; Two Operator Inputs (2 Flush Push Buttons); Four Color LED Indicator Light Output

Product Details

  • Weight
    544.3104 g
  • Country Of Origin
    US
  • Point-to-Multipoint Topology
    Yes
  • Device Type
    Push Button
  • Number of Buttons
    2
  • Relative Humidity
    90% at 50° C
  • Ships With Battery
    Yes
  • Min Temp Operating Conditions
    -25
  • Max Temp Operating Conditions
    70
  • Housing Style
    Integrated Battery
  • Output Details
    Light
  • Environmental Rating (IP)
    IP65
  • Power
    Battery
  • Input Details
    Two Button
  • Discrete Inputs
    Yes
  • Wireless Radio Frequency
    900 MHz
  • Wireless
    Yes
  • 1-wire Serial Interface
    No
  • RS-485
    No
  • RS-232
    No
  • Modbus RTU
    No
  • PROFINET
    No
  • Modbus/TCP
    No
  • EtherNet/IP
    No
  • Application: Indicator Light
    Yes
  • Feature: Hazardous Area
    No
  • Star Topology
    Yes
  • Tree Topology
    No
  • Point-to-Point Topology
    Yes
  • Operator Type
    Flush Button - Flush Button
  • Input/Output
    Discrete
  • Power Supply
    2 AA Batteries

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DX80N9Q120PPB11 on Powermatic Associates is $499.00. Order now.

About the product

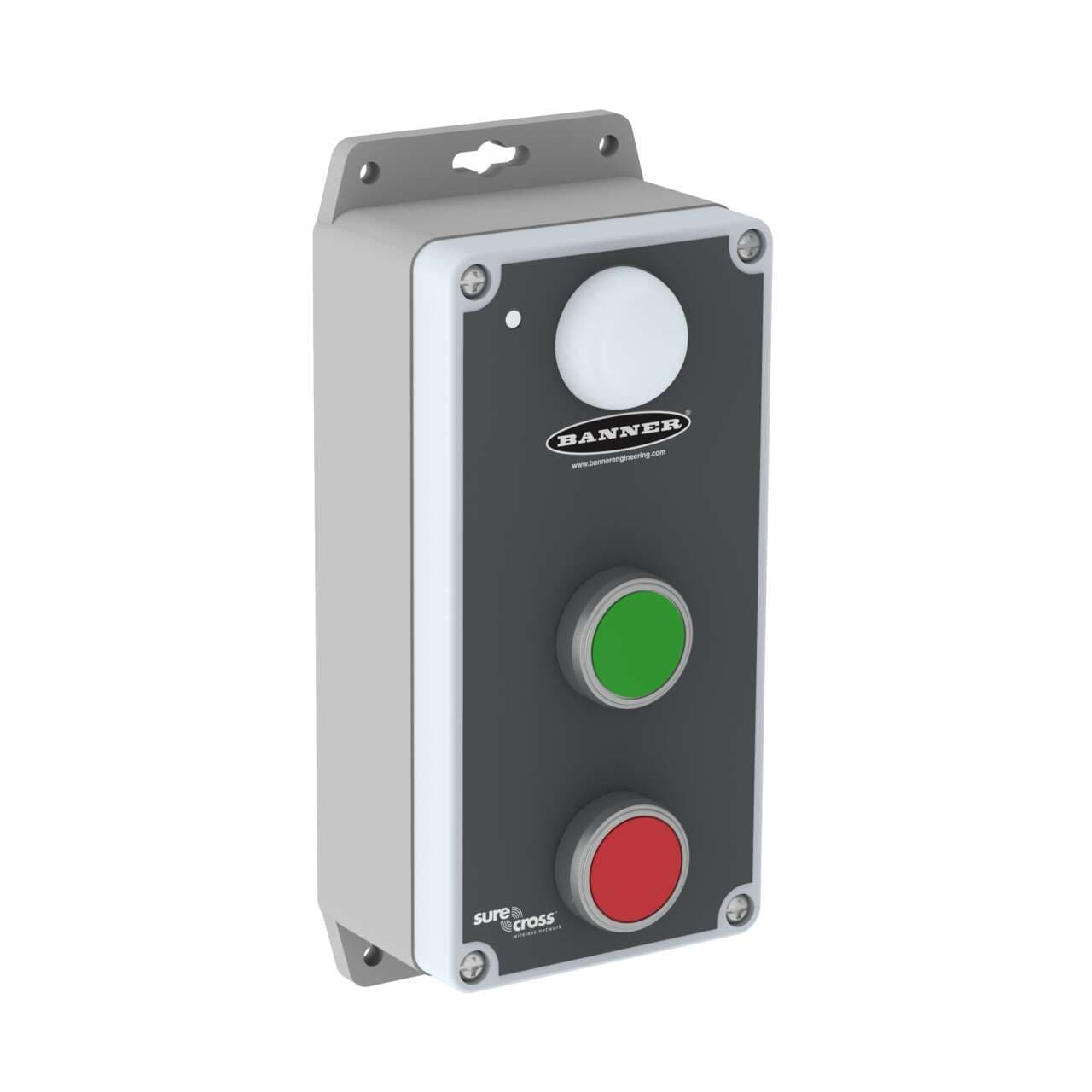

Banner Engineering DX80N9Q120PPB11 is a control station from the SureCross series, featuring a polycarbonate housing with stainless steel hardware designed for durability. It operates within an ambient air temperature range of -25°C to +70°C and offers an IP65 degree of protection against dust and water ingress. This model functions on a 900MHz ISM band with a 1W wireless battery-powered pendant station that includes an indicator. It is equipped with two flush push-buttons with LED illumination for clear operation status indication. The operating mode can be set to either momentary or latched NO (Normally Open) touch output, catering to various application needs. The supply voltage required for operation is 3.6Vdc, and it features a gray housing color.
