DX80N9DSTS Banner I/O Modules

DX80N9DSTS on Powermatic Associates
Banner
  • DX80N9DSTS
  • DX80N9DSTS

Part#:DX80N9DSTS

Alt. Part#:808588

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

Wireless Operator Interface Node; 900 MHz 1 W, LCD Display 0-999; Multicolor Capacitive Touch

Product Details

  • Weight
    231.33192 g
  • Country Of Origin
    US
  • Wireless
    Yes
  • Wireless Radio Frequency
    900 MHz
  • 1-wire Serial Interface
    No
  • RS-232
    No
  • RS-485
    No
  • Application: Indicator Light
    Yes
  • Modbus/TCP
    No
  • PROFINET
    No
  • Modbus RTU
    No
  • Min Temp Operating Conditions
    -25
  • Application: Pick-to-Light
    Yes
  • Tree Topology
    No
  • Feature: Hazardous Area
    No
  • Star Topology
    Yes
  • LCD Display
    Yes
  • Input Details
    1 capacitive touch, 4 buttons
  • Point-to-Point Topology
    Yes
  • Relative Humidity
    90% at 50° C
  • Point-to-Multipoint Topology
    Yes
  • Ships With Battery
    Yes
  • Power
    Battery
  • Input/Output
    Discrete
  • Device Type
    Sensor and Node
  • Power Supply
    C Cell Lithium Battery
  • Max Temp Operating Conditions
    70
  • Environmental Rating (IP)
    IP65
  • Housing Style
    Integrated Battery
  • Output Details
    Multicolor indicator, numerical LCD

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DX80N9DSTS on Powermatic Associates is $399.00. Order now.

About the product

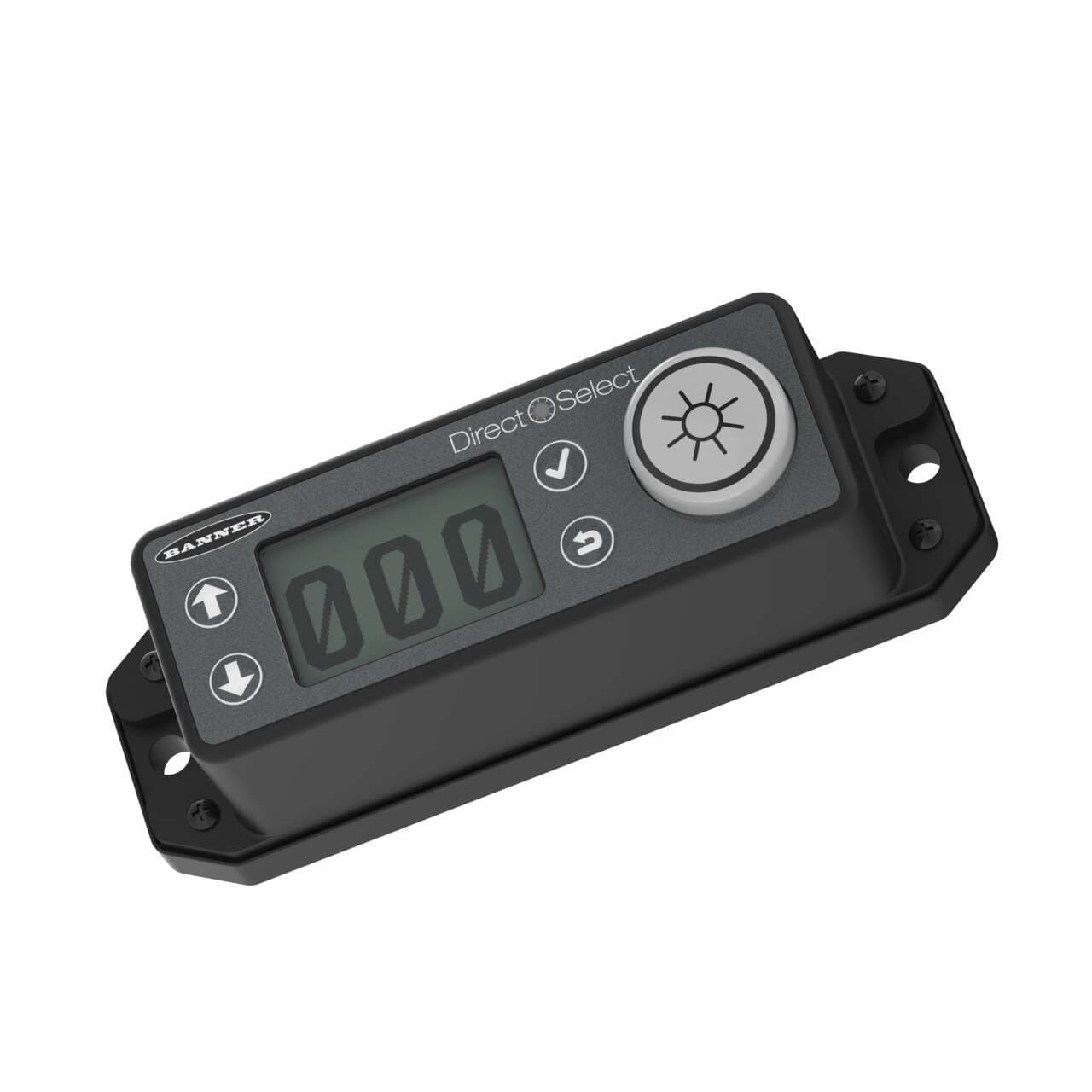

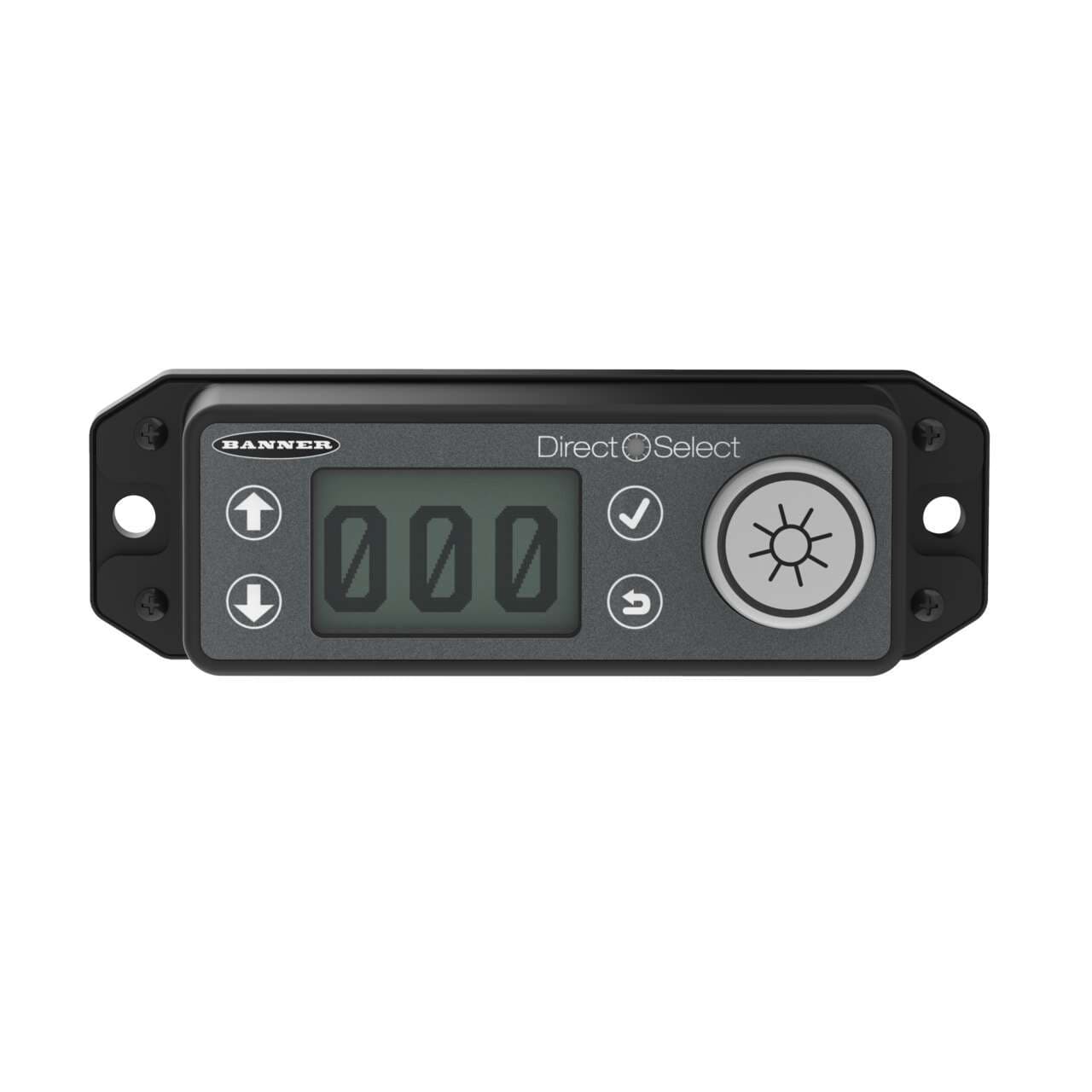

Banner Engineering DX80N9DSTS is a SureCross Wireless (900MHz) battery-powered capacitive touch-sensitive pick-to-light node with a rectangular-shaped body, designed for use in automation environments. It features a polycarbonate housing in black, ensuring durability within an ambient air temperature range of -25°C to +55°C. This part offers IP65 degree of protection, making it suitable for various industrial applications. It operates with a supply voltage of 3.6Vdc and incorporates LED illumination for clear job indication. The operating mode includes a green LED (G) that remains on when the job input is active, and touch activation triggers the output. Additionally, touching with an inactive job input activates a mispick light (red, R). The dimensions of this device are H47.3mm x W148mm x D56.4mm, fitting seamlessly into a wide range of setups within the SureCross series.
