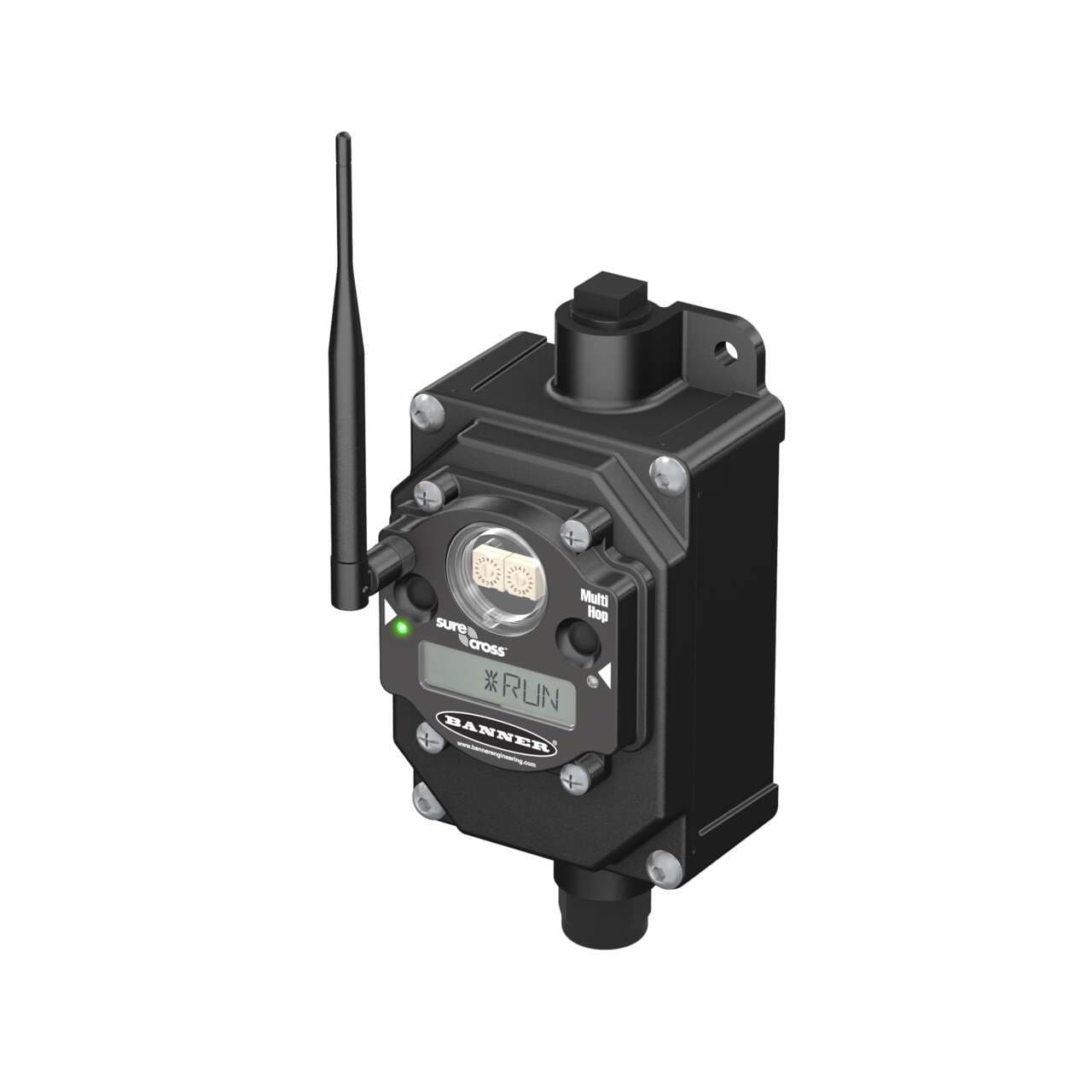

DX80N2X7S-P15E Banner I/O Modules

DX80N2X7S-P15E on Powermatic Associates
Banner

Part#:DX80N2X7S-P15E

Alt. Part#:801577

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

DX80 Performance 2.4 GHz Node 65 mW IP65; 100 - 277 V ac, Field Wireable 25W Supply, External Antenna; Inputs: Two Selectable Discrete, Two 0-10 V Analog; Outputs: Two AC/DC Relay (SPDT), Two PNP Discrete, Two 0-10 V Analog

Product Details

  • Weight
    680.388 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    No
  • Wireless
    Yes
  • Wireless Radio Frequency
    2.4 GHz
  • RS-232
    No
  • RS-485
    No
  • PROFINET
    No
  • Modbus/TCP
    No
  • Modbus RTU
    No
  • EtherNet/IP
    No
  • Feature: Hazardous Area
    No
  • Star Topology
    Yes
  • Tree Topology
    No
  • Point-to-Point Topology
    Yes
  • Relative Humidity
    95%
  • LCD Display
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Min Temp Operating Conditions
    -20
  • Max Temp Operating Conditions
    80
  • Output Details
    2 Discrete, two 0 - 10 V dc analog, two AC/DC relay
  • Environmental Rating (NEMA)
    NEMA 4x
  • Environmental Rating (IP)
    IP65
  • Power Supply
    100-277 V ac at 50/60 Hz
  • Input Details
    2 Discrete, two 0 - 10 V dc analog
  • Discrete Outputs
    Yes
  • Analog Outputs
    Yes
  • Discrete Inputs
    Yes
  • Input/Output
    Analog & Discrete
  • Analog Inputs
    Yes
  • Housing Style
    Enclosed Terminals
  • Device Type
    Node
  • Power
    AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DX80N2X7S-P15E on Powermatic Associates is $730.00. Order now.

About the product

Banner Engineering DX80N2X7S-P15E is a Remote Terminal Unit (RTU) from the SureCross DX80 series, designed with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers an IP65 degree of protection. The unit measures H81.3mm x W167.4mm x D87.6mm and features a rectangular shape. It is equipped with 2 digital outputs (30Vdc; PNP), 2 digital outputs (SPDT / Form-C / NO/NC contact type; 10A / 277Vac), 2 analog inputs (0-10Vdc; 12-bit), and 2 digital inputs (30Vdc 3mA; PNP/NPN) plus 2 digital inputs (25kHz counter). The DX80N2X7S-P15E utilizes FHSS (Frequency Hopping Spread Spectrum) technology, operates on a 2.4GHz ISM band frequency with a 65mW power, and can achieve a maximum transmission distance of 3.2km at nominal emission power. It includes 2 buttons, 2 bi-color LEDs, and offers connection via 2 x 1/2"-14 NPSM ports. The supply voltage is 120-277Vac, and the unit comes in a black housing.
