DX80N2X6S-PM8C Banner I/O Modules

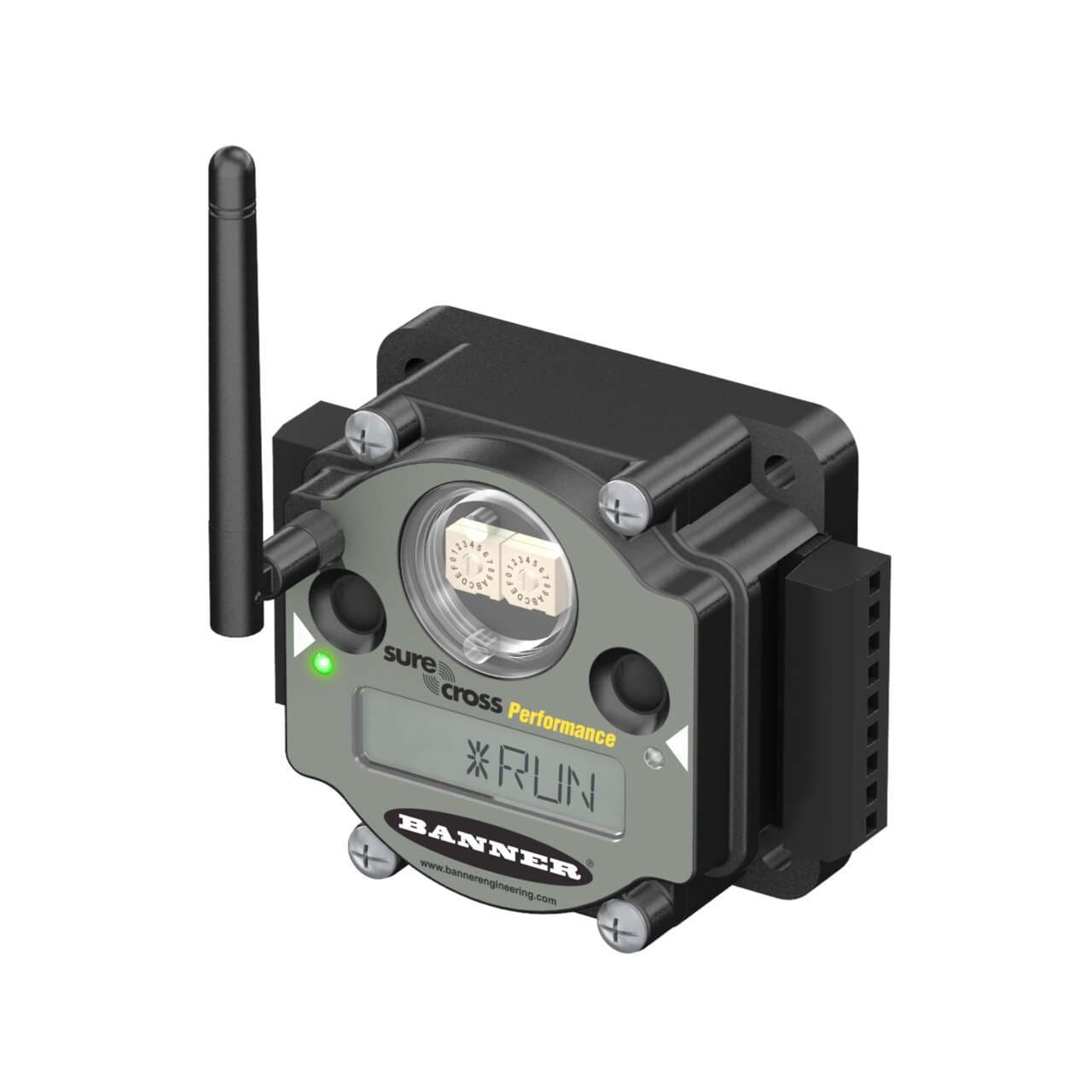

Banner Engineering DX80N2X6S-PM8C is a Remote Terminal Unit (RTU) designed for surface mounting. It features a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. This unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 and NEMA 1. With dimensions of H44.5mm x W103.3mm x D80.1mm, it includes 6 digital outputs (30Vdc; Sourcing; 100mA) and 6 digital inputs (30Vdc 3mA; Sourcing), suitable for diverse applications. The DX80N2X6S-PM8C operates on a transmission frequency of 2400 MHz within the 2.4GHz ISM band, utilizing FHSS (Frequency Hopping Spread Spectrum) technology for enhanced communication reliability. It supports a maximum transmission distance of 3.2km at nominal emission power, with a supply voltage range of 10-30Vdc (12Vdc-24Vdc nom.). This rectangular-shaped unit is part of the PM series, designed for wire replacement and features I.O. mapping, 2 buttons, 2 bi-color LEDs for Ex e II applications, detachable screw-clamp connectors, and an RP-SMA connector, making it a versatile choice for industrial automation needs.
