DX80N2X6S-PM2C Banner I/O Modules

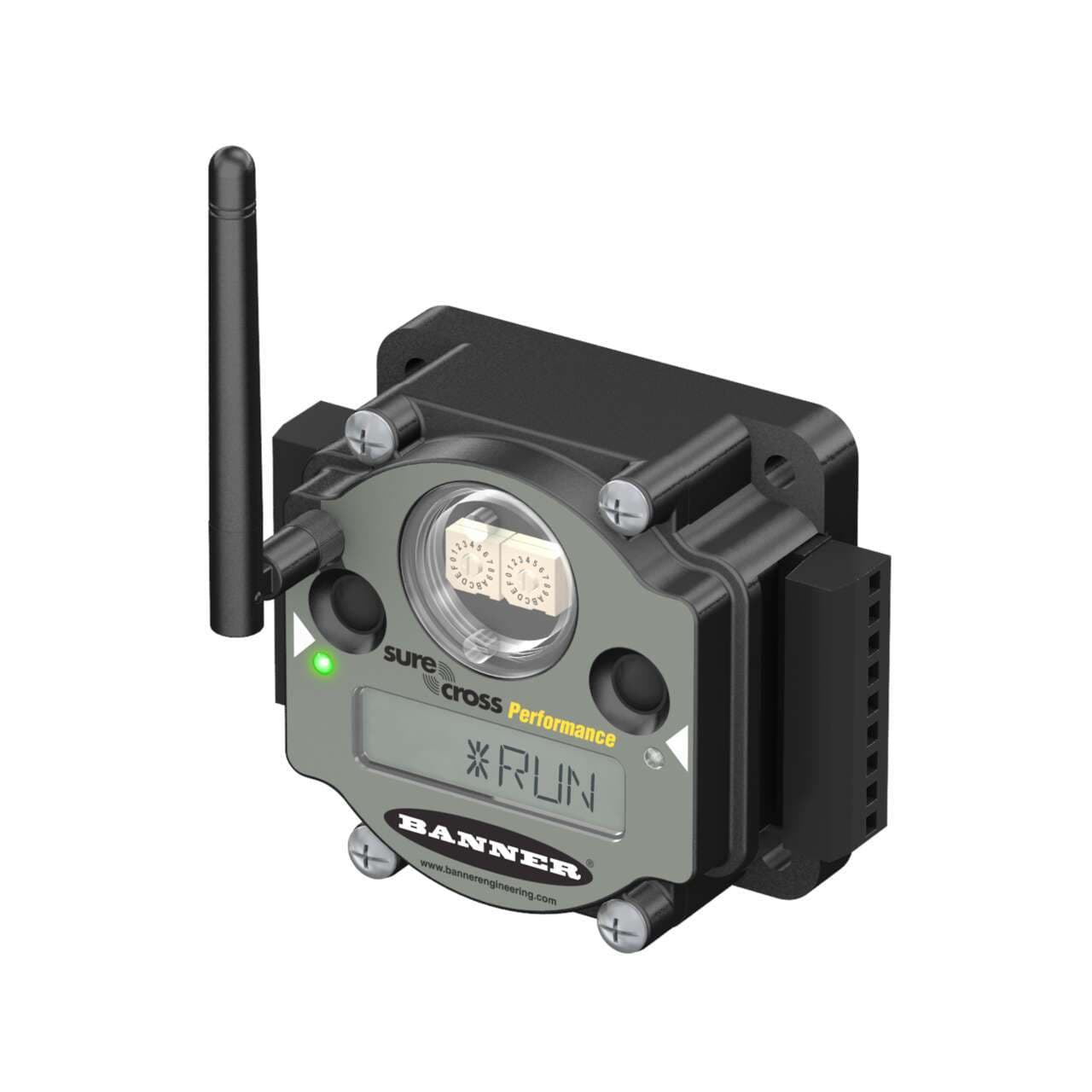

Banner Engineering DX80N2X6S-PM2C is a Remote Terminal Unit (RTU) designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers 2 analog outputs (0-20mA; 12-bit), with a degree of protection rated at IP20 NEMA 1. The dimensions of this unit are H44.5mm x W103.3mm x D80.1mm. It also features 2 digital outputs (30Vdc; PNP; 100mA), 2 analog inputs (0-20mA; 12-bit), and 4 digital inputs (30Vdc 3mA; PNP/NPN). The transmission frequency is set at 2400 MHz, and it has a rectangular shape. This RTU is part of the PM series, designed for wire replacement and includes I.O. mapping, 2 buttons, 2 bi-color LEDs for Ex e II applications, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology. Connection is facilitated through detachable screw-clamp connectors and an RP-SMA connector, with a supply voltage requirement of 10-30Vdc (12Vdc-24Vdc nom.). It operates on a 2.4GHz ISM band frequency with 65mW power, capable of a maximum 3.2km transmission distance at nominal emission power.
