DX80N2X6S-PB2-KR Banner I/O Modules

DX80N2X6S-PB2-KR on Powermatic Associates
Banner
  • DX80N2X6S-PB2-KR
  • DX80N2X6S-PB2-KR

Part#:DX80N2X6S-PB2-KR

Alt. Part#:91014

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

DX80 Performance 2.4 GHz Node 65 mW; 10-30 V dc External Antenna; Input: 2 Discrete 2 Analog; Output: 2 Discrete 2 Analog

Product Details

  • Weight
    167.82904 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    No
  • Wireless
    Yes
  • Modbus/TCP
    No
  • Wireless Radio Frequency
    2.4 GHz
  • RS-232
    No
  • Modbus RTU
    No
  • RS-485
    No
  • PROFINET
    No
  • Tree Topology
    No
  • Feature: Hazardous Area
    Yes
  • EtherNet/IP
    No
  • Star Topology
    Yes
  • Point-to-Point Topology
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Relative Humidity
    95%
  • Min Temp Operating Conditions
    -40
  • LCD Display
    Yes
  • Hazardous/Intrinsically Safe Classification
    Class I, Division 2/Zone 2; ATEX Zone 2
  • Max Temp Operating Conditions
    85
  • Power Supply
    10-30 V dc
  • Output Details
    2 PNP, 2 0-20 mA Analog
  • Input/Output
    Analog & Discrete
  • Analog Inputs
    Yes
  • Housing Style
    Board Level
  • Device Type
    Node
  • Discrete Outputs
    Yes
  • Input Details
    2 Selectable Discrete, 2 0-20 mA
  • Analog Outputs
    Yes
  • Discrete Inputs
    Yes
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DX80N2X6S-PB2-KR on Powermatic Associates is $399.00. Order now.

About the product

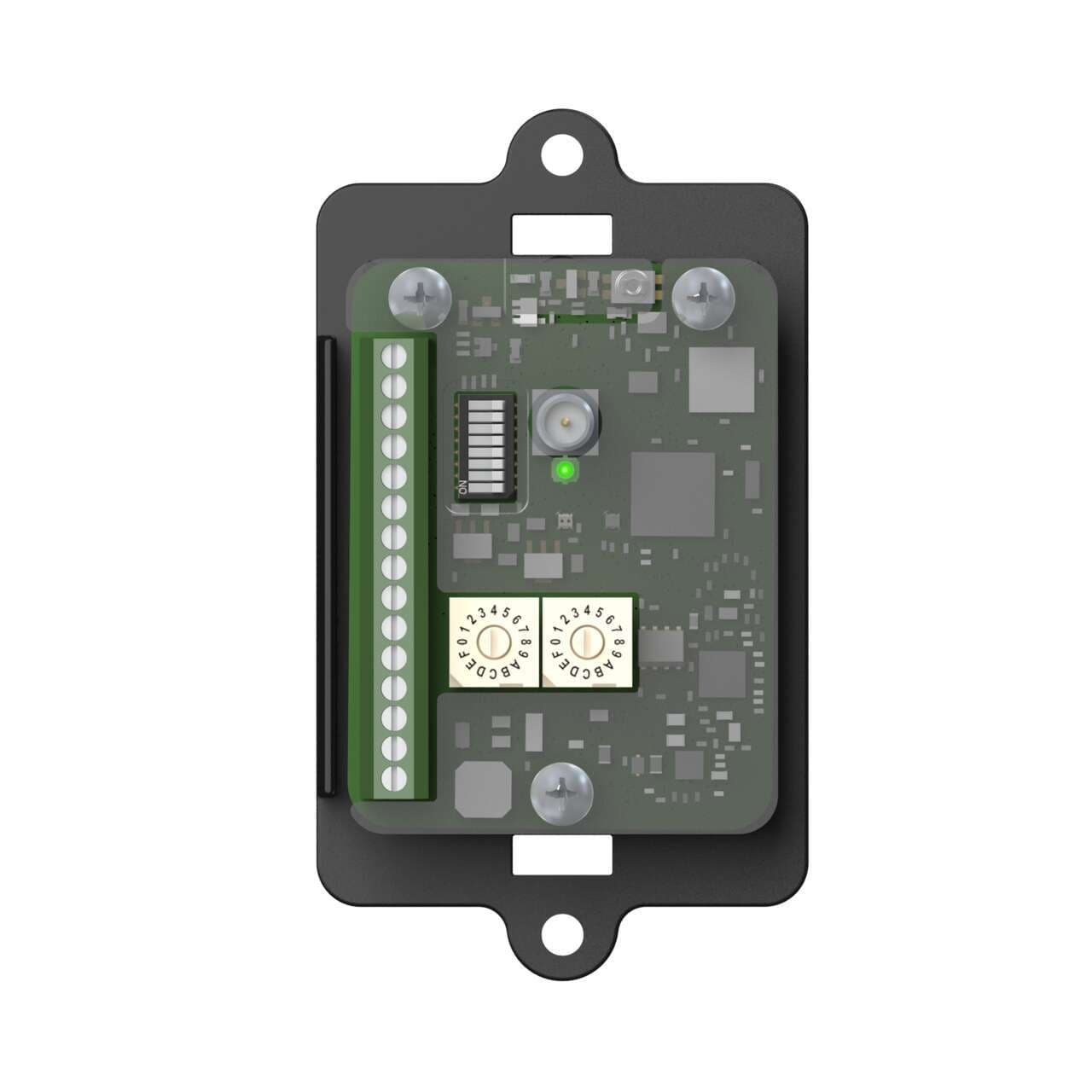

Banner Engineering DX80N2X6S-PB2-KR is a Remote Terminal Unit (RTU) from the SureCross DX80 series designed for surface mounting. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 NEMA 1. This unit features dimensions of H53mm x W94mm x D26.8mm and is equipped with 2 analog outputs (0-20mA; 12-bit), 2 digital outputs (30Vdc; PNP; 100mA), 2 analog inputs (0-20mA; 12-bit), and 2 digital inputs (30Vdc 3mA; PNP). It operates on a transmission frequency of 2400 MHz within the 2.4GHz ISM band at 65mW, capable of a maximum transmission distance of 3.2km at nominal emission power. The design includes a rectangular shape with a bi-color LED suitable for Ex e II applications in South Korea, utilizing FHSS (Frequency Hopping Spread Spectrum) technology. Connection is facilitated through detachable screw-clamp connectors and an RP-SMA connector, with a supply voltage requirement of 10-30Vdc (12Vdc-24Vdc nom.).
