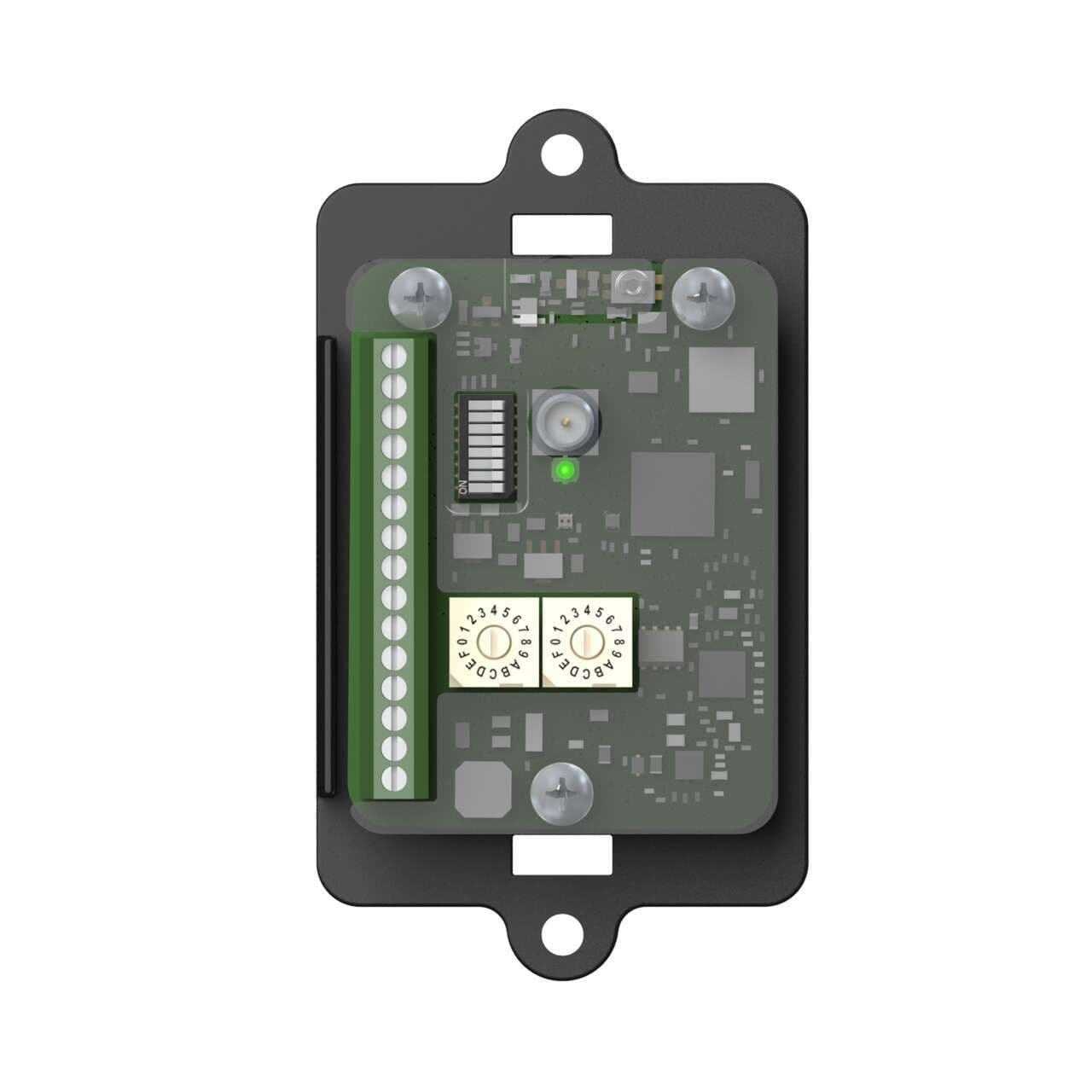

DX80N2X2S-PB1 Banner I/O Modules

DX80N2X2S-PB1 on Powermatic Associates
Banner

Part#:DX80N2X2S-PB1

Alt. Part#:25758

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

DX80 Performance 2.4 GHz Node 65 mW; FlexPower External Antenna; Input: 2 Discrete 2 Analog; Output: 2 Discrete NMOS

Product Details

  • Weight
    35.380176 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    No
  • Wireless Radio Frequency
    2.4 GHz
  • Wireless
    Yes
  • Star Topology
    Yes
  • RS-232
    No
  • RS-485
    No
  • PROFINET
    No
  • Modbus/TCP
    No
  • EtherNet/IP
    No
  • Modbus RTU
    No
  • Tree Topology
    No
  • Point-to-Point Topology
    Yes
  • Feature: Hazardous Area
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Min Operating Temperature ( °C)
    -40
  • Max Operating Temperature ( °C)
    85
  • Ships With Battery
    No
  • Min Temp Operating Conditions
    -40
  • Relative Humidity
    95%
  • Hazardous/Intrinsically Safe Classification
    Class I, Division 2/Zone 2; ATEX Zone 2
  • Max Temp Operating Conditions
    85
  • Environmental Rating (IP)
    IP67
  • Environmental Rating (NEMA)
    NEMA 6
  • Discrete Outputs
    Yes
  • Output Details
    2 NMOS Discrete
  • Input Details
    2 NPN Discrete, 2 0-20 mA Analog
  • Discrete Inputs
    Yes
  • Power Supply
    10-30 V dc or 3.6-5.5 V dc low power option
  • Analog Inputs
    Yes
  • Input/Output
    Analog & Discrete
  • Device Type
    Node
  • Housing Style
    Board Level
  • Power
    Flex Power

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DX80N2X2S-PB1 on Powermatic Associates is $450.00. Order now.

About the product

Banner Engineering DX80N2X2S-PB1 is a Remote Terminal Unit (RTU) from the SureCross DX80 series, designed for surface mounting. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 NEMA 6. The unit has dimensions of H53mm x W94mm x D26.8mm. It features 2 digital outputs (30Vdc; NMOS; 10mA) and 2 analog inputs (0-20mA; 12-bit), alongside 2 digital inputs (30Vdc 3mA; NPN). This RTU utilizes Flexpower performance radio module technology and is equipped with a bi-color LED for Ex e II applications, incorporating FHSS (Frequency Hopping Spread Spectrum) technology for enhanced communication. Connection is facilitated through detachable screw-clamp connectors and an RP-SMA connector. The device requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) and operates on a 2.4GHz ISM band frequency with a 65mW power output, capable of achieving a maximum transmission distance of 3.2km at nominal emission power.
