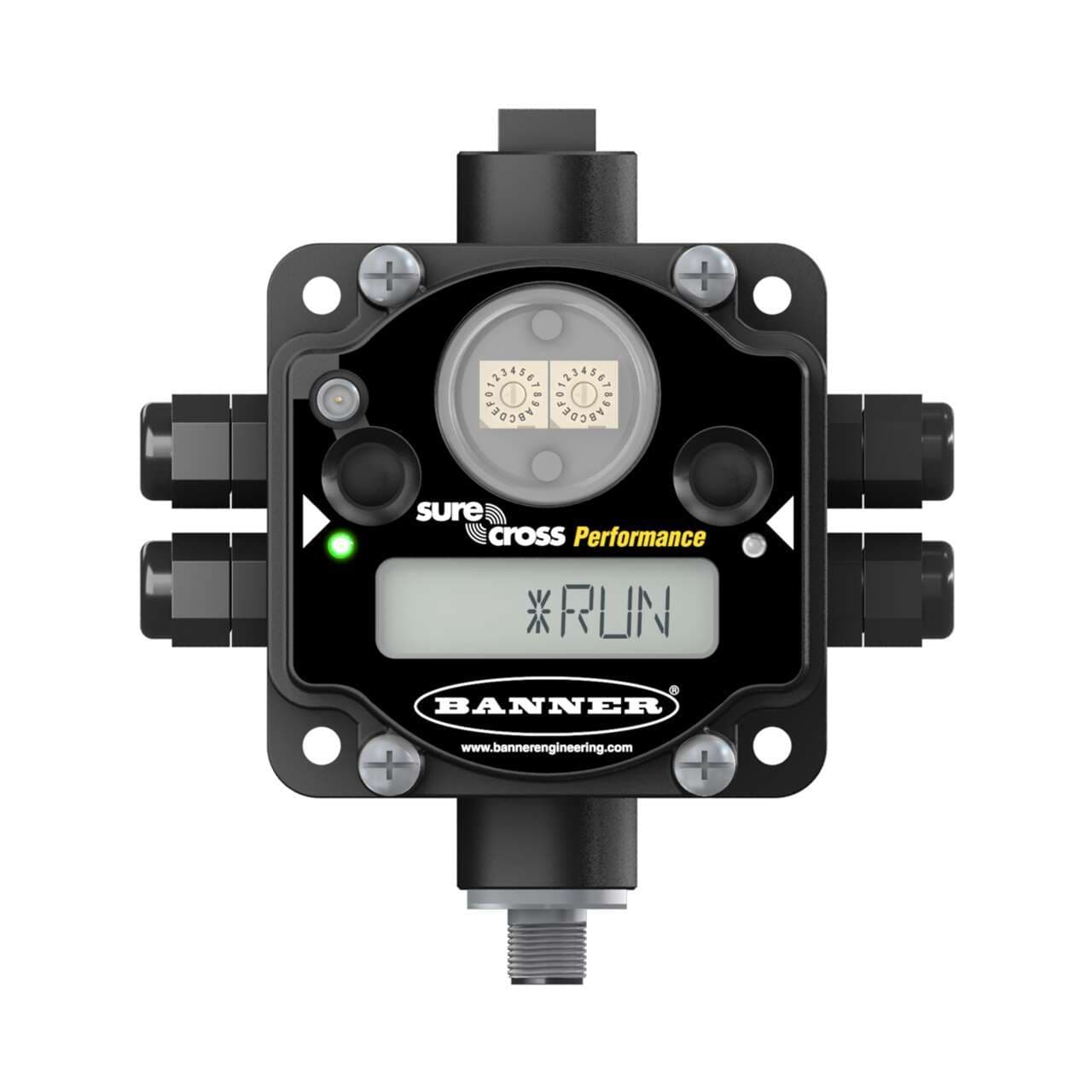

DX80N2X2S-P5 Banner I/O Modules

Banner Engineering DX80N2X2S-P5 is a Remote Terminal Unit (RTU) designed for surface mounting, featuring a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 NEMA 6. The unit's dimensions are H59.8mm x W126.7mm x D117.4mm. It includes 2 digital outputs (30Vdc; NMOS; 1A) and 4 analog inputs (0-20mA / 0-10Vdc; 12-bit), with a transmission frequency of 2400 MHz. The shape is rectangular, and it also features 2 digital inputs (30Vdc 3mA; NPN). As a performance node in the SureCross DX80 series, its design incorporates 2 buttons, 2 bi-color LEDs, FHSS (Frequency Hopping Spread Spectrum) technology, and Time Division Multiple Access (TDMA). Connection options include a wiring chamber with screw-clamp connections, 4 x Pg7 cable accesses equipped with gld. 1/2" NPT threaded cable access, a 5-pin M12 male connector, and an RP-SMA connector. The supply voltage requirement is 10-30Vdc (12Vdc-24Vdc nom.), operating on a 2.4GHz ISM band frequency at 65mW, capable of a maximum 3.2km transmission distance at nominal emission power.
