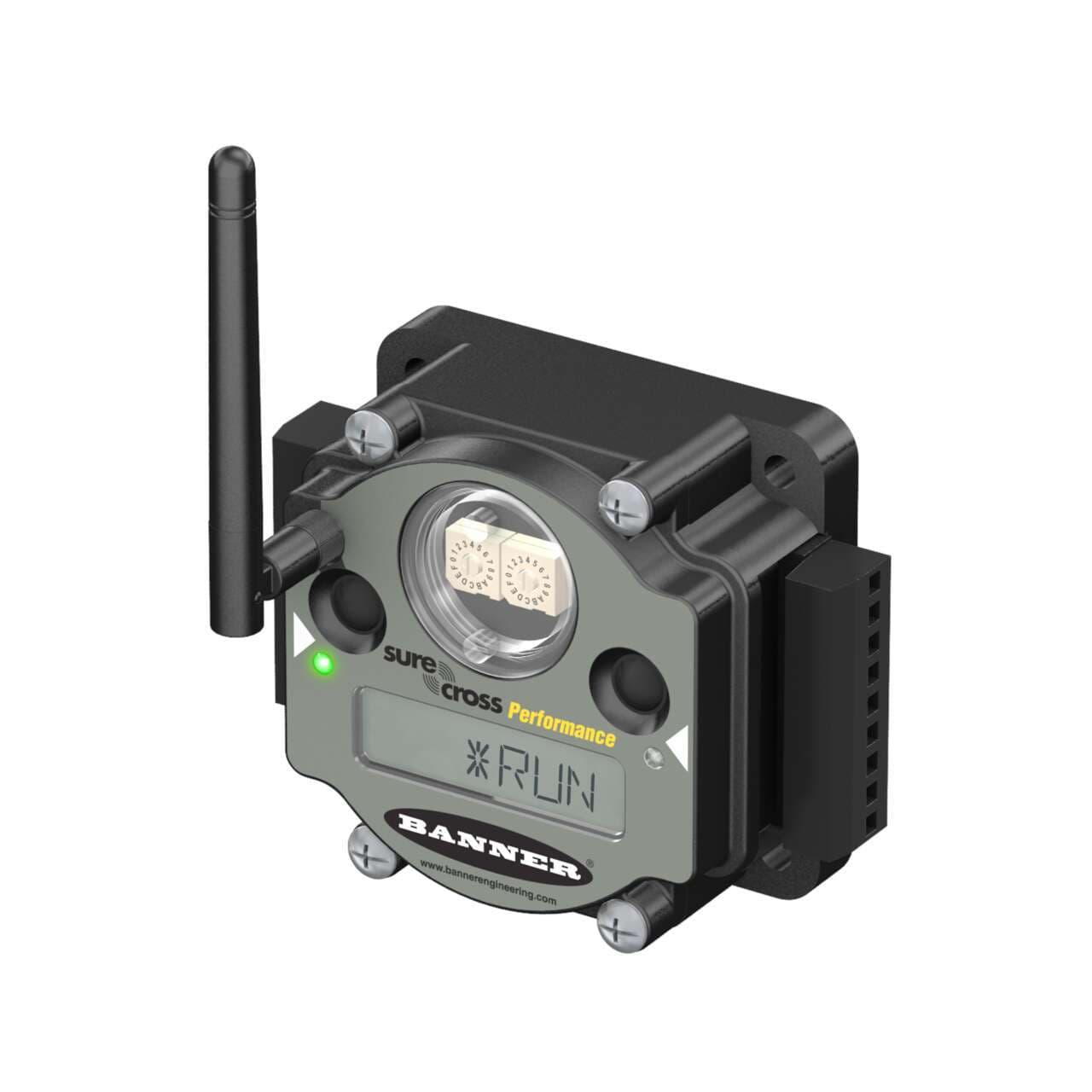

DX80N2X2S-P3C Banner I/O Modules

DX80N2X2S-P3C on Powermatic Associates
Banner

Part#:DX80N2X2S-P3C

Manufacturer:Banner

Category:I/O Modules

Alt. Part#:18800

Product Lifecycle:Active

Get a quick Quote!

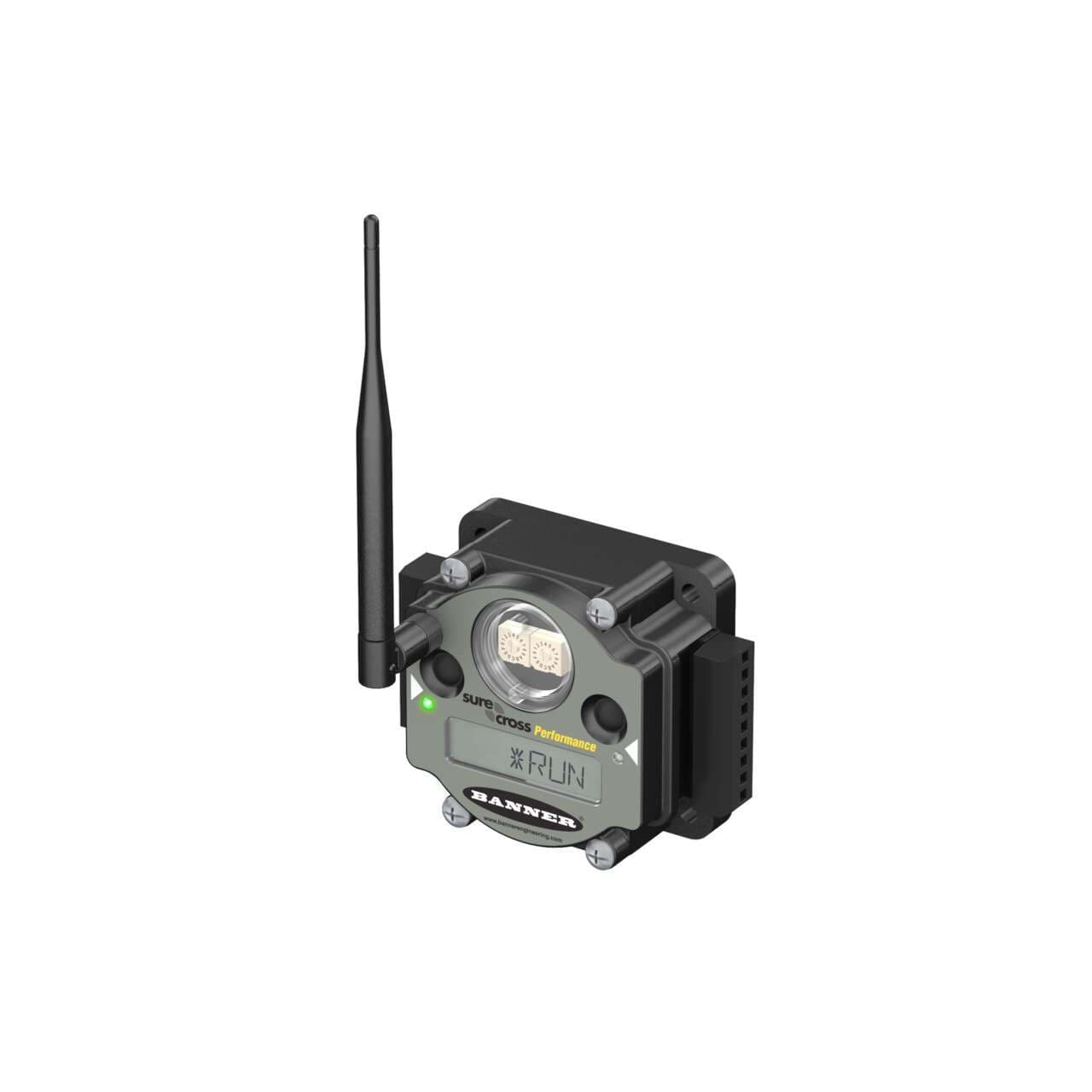

DX80 Performance 2.4 GHz Node 65 mW IP20; FlexPower External Antenna; Input: 2 Discrete 4 Thermocouple; Output: 1 Discrete NMOS; External Terminals

About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DX80N2X2S-P3C Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    385.5532 g
  • Country Of Origin
    US
  • Wireless
    Yes
  • RS-232
    No
  • RS-485
    No
  • 1-wire Serial Interface
    No
  • Wireless Radio Frequency
    2.4 GHz
  • PROFINET
    No
  • EtherNet/IP
    No
  • Modbus/TCP
    No
  • Modbus RTU
    No
  • Star Topology
    Yes
  • Feature: Hazardous Area
    Yes
  • Application: Temperature Input
    Yes
  • Tree Topology
    No
  • Relative Humidity
    95%
  • Point-to-Point Topology
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Max Operating Temperature ( °C)
    80
  • Hazardous/Intrinsically Safe Classification
    Class I, Division 2/Zone 2; ATEX Zone 2
  • Min Temp Operating Conditions
    -20
  • Environmental Rating (NEMA)
    NEMA 1
  • Min Operating Temperature ( °C)
    -20
  • Ships With Battery
    No
  • LCD Display
    Yes
  • Max Temp Operating Conditions
    80
  • Environmental Rating (IP)
    IP20
  • Input/Output
    Thermocouple
  • Power Supply
    10-30 V dc or 3.6-5.5 V dc low power option
  • Input Details
    2 Selectable Discrete, 4 Thermocouple, 1 Thermistor
  • Output Details
    1 NMOS Discrete
  • Discrete Outputs
    Yes
  • Discrete Inputs
    Yes
  • Device Type
    Node
  • Housing Style
    External Terminals
  • Power
    Flex Power

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DX80N2X2S-P3C Description

Banner Engineering DX80N2X2S-P3C is a Remote Terminal Unit (RTU) from the SureCross DX80 series, designed for surface mounting. It features a polycarbonate housing, rotary dial cover, polyester labels, an EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. This unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 and NEMA 1. Its dimensions are H44.5mm x W103.3mm x D80.1mm. The RTU includes 1 digital output (30Vdc; NMOS; 1A), 4 analog inputs for thermocouples (types B, C, E, J, K, L, N, R, S, T, U with 24-bit A/D conversion), and 1 analog input for a thermistor (for CJC with 24-bit A/D conversion). It also features 2 digital inputs (30Vdc 3mA; PNP/NPN), operates on a 2400 MHz transmission frequency with FHSS technology, and has a rectangular shape. The design incorporates 2 buttons, 2 bi-color LEDs for Ex e II applications, detachable screw-clamp connectors, and an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) and operates on a 2.4GHz ISM band frequency with 65mW power, capable of a maximum transmission distance of 3.2km at nominal emission power.

Related documents DX80N2X2S-P3C Specs

DX80N2X2S-P3C 155863.pdf
