Powermatic Associates Logo

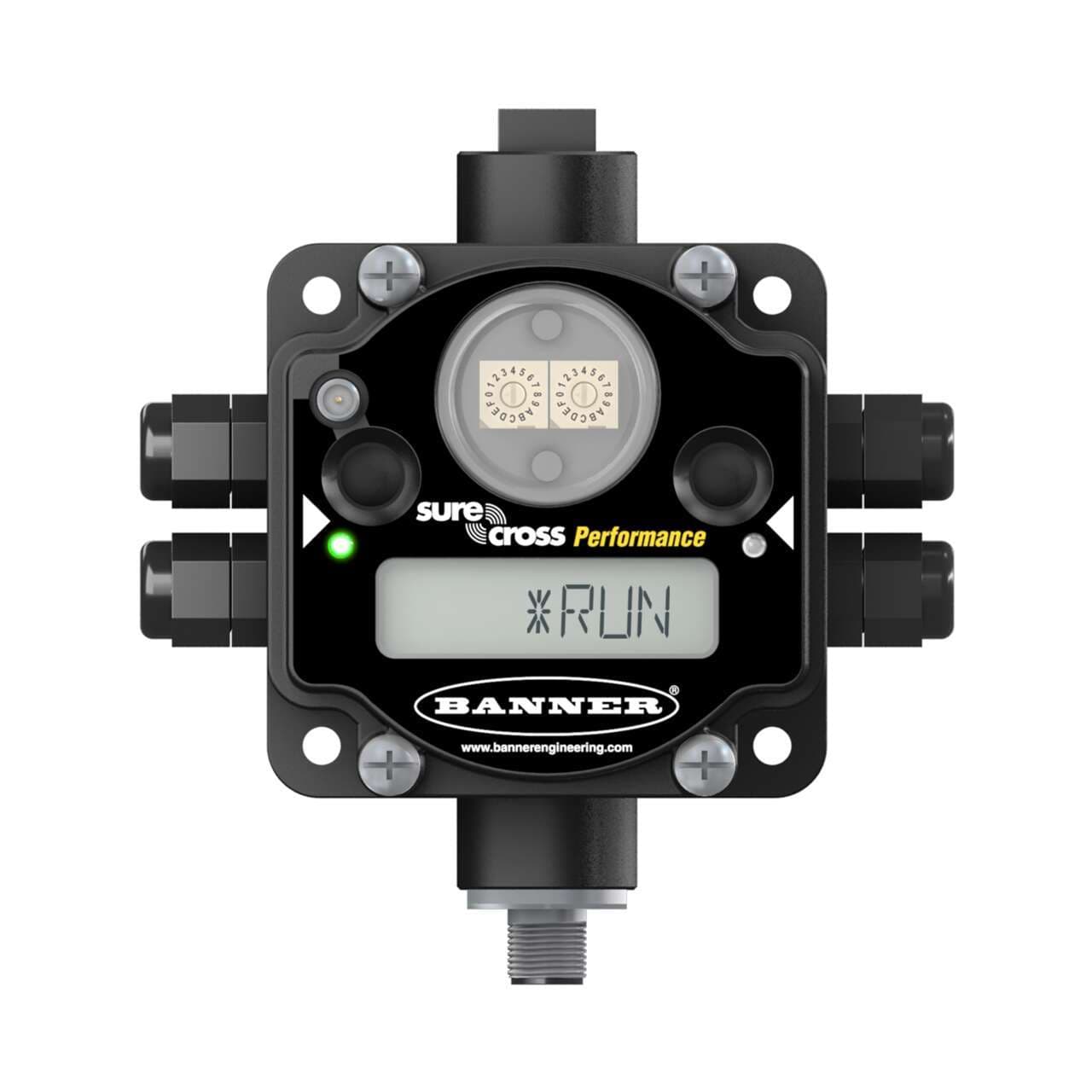

DX80N2X1S-P6 Banner I/O Modules

DX80N2X1S-P6 on Powermatic Associates
Banner

Part#:DX80N2X1S-P6

Alt. Part#:18657

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

DX80 Performance 2.4 GHz Node 65 mW IP67; 1-Wire Serial Interface; Integrated Battery

Product Details

  • Weight
    680.388 g
  • Country Of Origin
    US
  • Wireless
    Yes
  • RS-485
    No
  • RS-232
    No
  • Wireless Radio Frequency
    2.4 GHz
  • PROFINET
    No
  • 1-wire Serial Interface
    Yes
  • Modbus/TCP
    No
  • EtherNet/IP
    No
  • Modbus RTU
    No
  • Application: Tank Level
    Yes
  • Application: Vibration Sensor Input
    Yes
  • Application: Temperature Input
    Yes
  • Point-to-Point Topology
    Yes
  • Application: Ultrasonic
    Yes
  • Application: Relative Humidity Input
    Yes
  • Tree Topology
    No
  • Star Topology
    Yes
  • Feature: Hazardous Area
    Yes
  • Max Operating Temperature ( °C)
    85
  • Point-to-Multipoint Topology
    Yes
  • LCD Display
    Yes
  • Min Temp Operating Conditions
    -40
  • Relative Humidity
    95%
  • Min Operating Temperature ( °C)
    -40
  • Ships With Battery
    Yes
  • Max Temp Operating Conditions
    85
  • Hazardous/Intrinsically Safe Classification
    Class I, Division 2/Zone 2; ATEX Zone 2
  • Environmental Rating (IP)
    IP67
  • Environmental Rating (NEMA)
    NEMA 6
  • Power Supply
    D Cell Lithium Battery
  • Device Type
    Node
  • Input Details
    1 Wire Serial interface
  • Input/Output
    Serial
  • Housing Style
    Integrated Battery
  • Power
    Battery

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DX80N2X1S-P6 on Powermatic Associates is $599.00. Order now.

About the product

Banner Engineering DX80N2X1S-P6 is a Remote Terminal Unit (RTU) from the SureCross DX80 series, designed for surface mounting. It features a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. This unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 and NEMA 6, suitable for demanding conditions. It utilizes a 2400 MHz transmission frequency within the 2.4GHz ISM band, supported by FHSS (Frequency Hopping Spread Spectrum) technology and Time Division Multiple Access (TDMA) for enhanced communication reliability. The rectangular-shaped RTU includes performance node functionality with a 1-wire serial interface, 2 buttons, 2 bi-color LEDs for Ex e II applications, and supports a maximum transmission distance of 3.2km at nominal emission power. Connection is facilitated through a 5-pin M12 female connector and an RP-SMA connector, with a supply voltage requirement of 3.6Vdc from an internal battery.

DX80N2X1S-P6 Related Documents

157189.pdf

Similar products from: Banner I/O Modules

DXM100-S1R2 on Powermatic Associates

DXM100-S1R2

Banner

DXM100 Modbus Slave Device; Multihop Radio 900 MHz 1 W; Inputs: 4 Universal; Outputs: 4 NMOS Discrete, 2 Selectable Analog, 2 Switched Power, 1 Courtesy Power; RS485

2 in stock
DX80N9X6S-PM8C on Powermatic Associates

DX80N9X6S-PM8C

Banner

PM Series Node - LCD for Diagnostics; 900 MHz IP20, NEMA 1; Inputs: Six Sourcing/PNP Discrete; Outputs: Six Sourcing/PNP Discrete; External Terminals

2 in stock
DX80K9M6-PM8 on Powermatic Associates

DX80K9M6-PM8

Banner

PM8 Series Kit; Includes One Gateway And One Node; Pre-Mapped And Pre-Bound; 900 MHz 1 W/250 mW; LCD Selectable I/O Mapping; IP67, NEMA 6; Inputs: Six Sourcing/PNP Discrete; Outputs: Six Sourcing/PNP Discrete

1 in stock

This item can ship within 0 day!

Manufacturer warranty

DX80N2X1S-P6 Banner

$599.00

Your price can be lower.
Log in or Create account to check your discount

Stock:

0

Select Qty:

$599.00

$599.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare DX80N2X1S-P6 with other I/O Modules products

Weight

Country Of Origin

Wireless

RS-485

RS-232

Wireless Radio Frequency

PROFINET

1-wire Serial Interface

Modbus/TCP

EtherNet/IP

Selected product

DX80N2X1S-P6
Backordered
DX80N2X1S-P6
Banner

DX80 Performance 2.4 GHz Node 65 mW IP67; 1-Wire Serial Interface; Integrated Battery

Weight680.388 g

Country Of OriginUS

WirelessYes

RS-485No

RS-232No

Wireless Radio Frequency2.4 GHz

PROFINETNo

1-wire Serial InterfaceYes

Modbus/TCPNo

EtherNet/IPNo

DX80N9X6S-PM8C
2 in stock
DX80N9X6S-PM8C
Banner

PM Series Node - LCD for Diagnostics; 900 MHz IP20, NEMA 1; Inputs: Six Sourcing/PNP Discrete; Outpu...

Weight421.84056 g

Country Of OriginUS

Wireless-

RS-485-

RS-232-

Wireless Radio Frequency-

PROFINET-

1-wire Serial Interface-

Modbus/TCP-

EtherNet/IP-

DX80K9M6-PM8
1 in stock
DX80K9M6-PM8
Banner

PM8 Series Kit; Includes One Gateway And One Node; Pre-Mapped And Pre-Bound; 900 MHz 1 W/250 mW; LCD...

Weight907.184 g

Country Of OriginUS

Wireless-

RS-485-

RS-232-

Wireless Radio Frequency-

PROFINET-

1-wire Serial Interface-

Modbus/TCP-

EtherNet/IP-

About the manufacturer

Banner

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...

About the Product Category

Industrial I/O (input/output) modules are critical industrial network components that deliver input signals from a field device, such as a sensor or actuator, to a controller.

I/O Modules

Recently viewed products

MDI4MRQ34B2-EQ on Powermatic Associates

MDI4MRQ34B2-EQ

Novanta IMS

Novanta IMS MDI4MRQ34B2-EQ is a stepper motor within the Stepper motors sub-range, featuring an integrated driver and a 2-phase AC stepper motor design. It is equipped with an external single-end 512-line optical encoder and a double (2) motor stack, Plus 2 version for expanded features. The connection is facilitated through a 19-pin M23 male connector and a 5-pin M12 female connector, supporting RS-422 and RS-485 communication protocols. This stepper motor operates on a 240Vac supply voltage and is designed for mounting with an 85x85mm flange. It can operate in ambient air temperatures ranging from 0 to +85°C and has a degree of protection rated at IP65. The moment of inertia is specified at 1.6kg.cm2, with a stall torque of 353N.cm, and a resolution characterized by a 1.8° step angle.

0 in stock

Relevant products

FAQ

What is the price of DX80N2X1S-P6?
Purchase the DX80N2X1S-P6 from Powermatic Associates at the price of $599.00. Order today.

Out if stock but available for backorder.

DX80 Performance 2.4 GHz Node 65 mW IP67; 1-Wire Serial Interface; Integrated Battery
