DX80N2X1S-P4E Banner I/O Modules

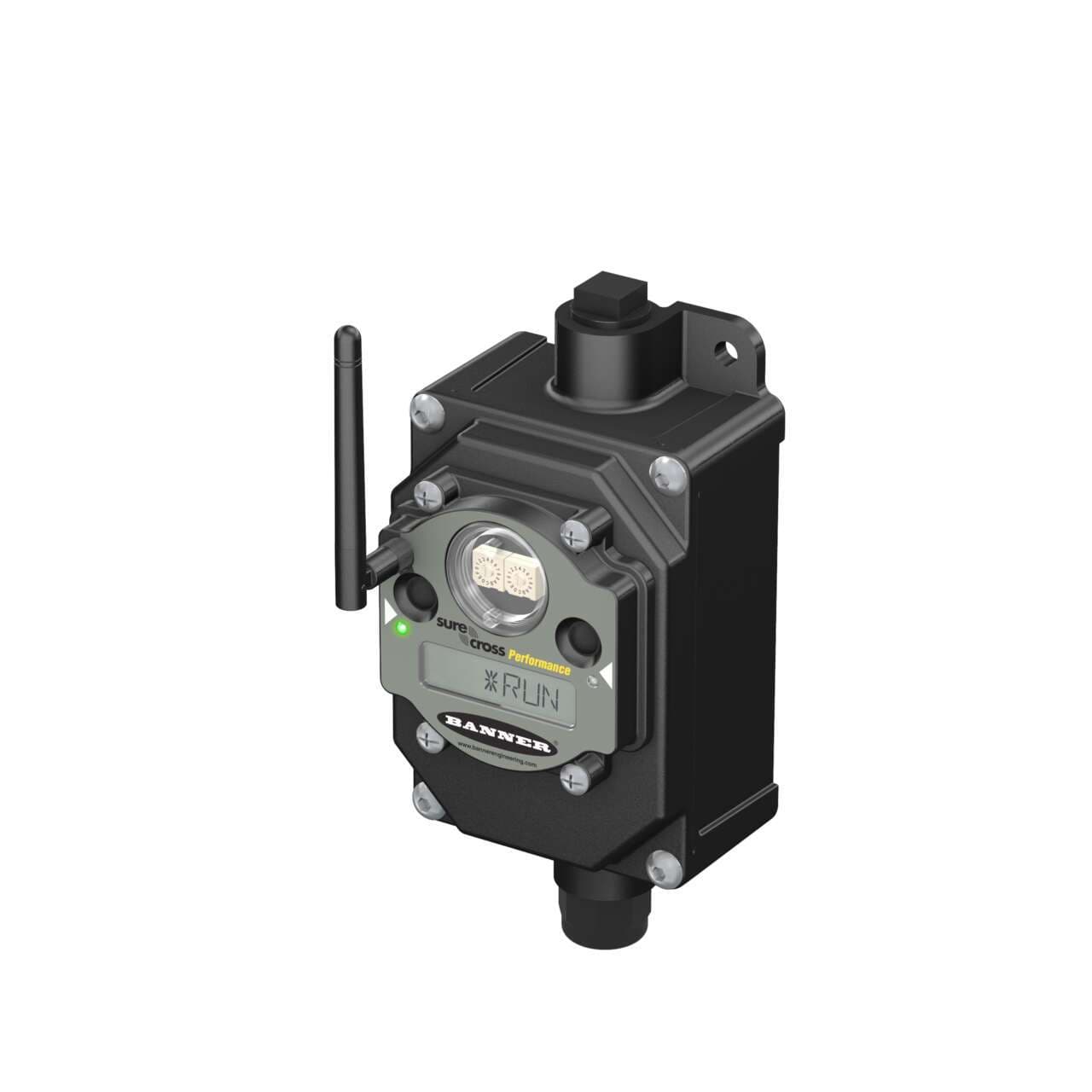

Banner Engineering DX80N2X1S-P4E is a Remote Terminal Unit (RTU) designed for surface mounting. It features a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. The unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP65 NEMA 4X. With dimensions of H81.3mm x W167.4mm x D87.6mm, this rectangular-shaped RTU includes 4 analog inputs for 3-wire RTD Pt100 probes. It utilizes a 2400 MHz transmission frequency and is part of the SureCross DX80 series. The design incorporates 2 buttons, 2 bi-color LEDs suitable for Ex e II applications, and an environmental housing with an internal battery. It employs FHSS (Frequency Hopping Spread Spectrum) technology for communication. Connection is facilitated through a wiring chamber with screw-clamp connections and 2 x 1/2" NPT threaded cable accesses, alongside an RP-SMA connector. The supply voltage requirement is 10-30Vdc (12Vdc-24Vdc nom.), operating on a 2.4GHz ISM band 65mW frequency. It can achieve a maximum transmission distance of 3.2km at nominal emission power.
