DX80N2X1S-P3E Banner I/O Modules

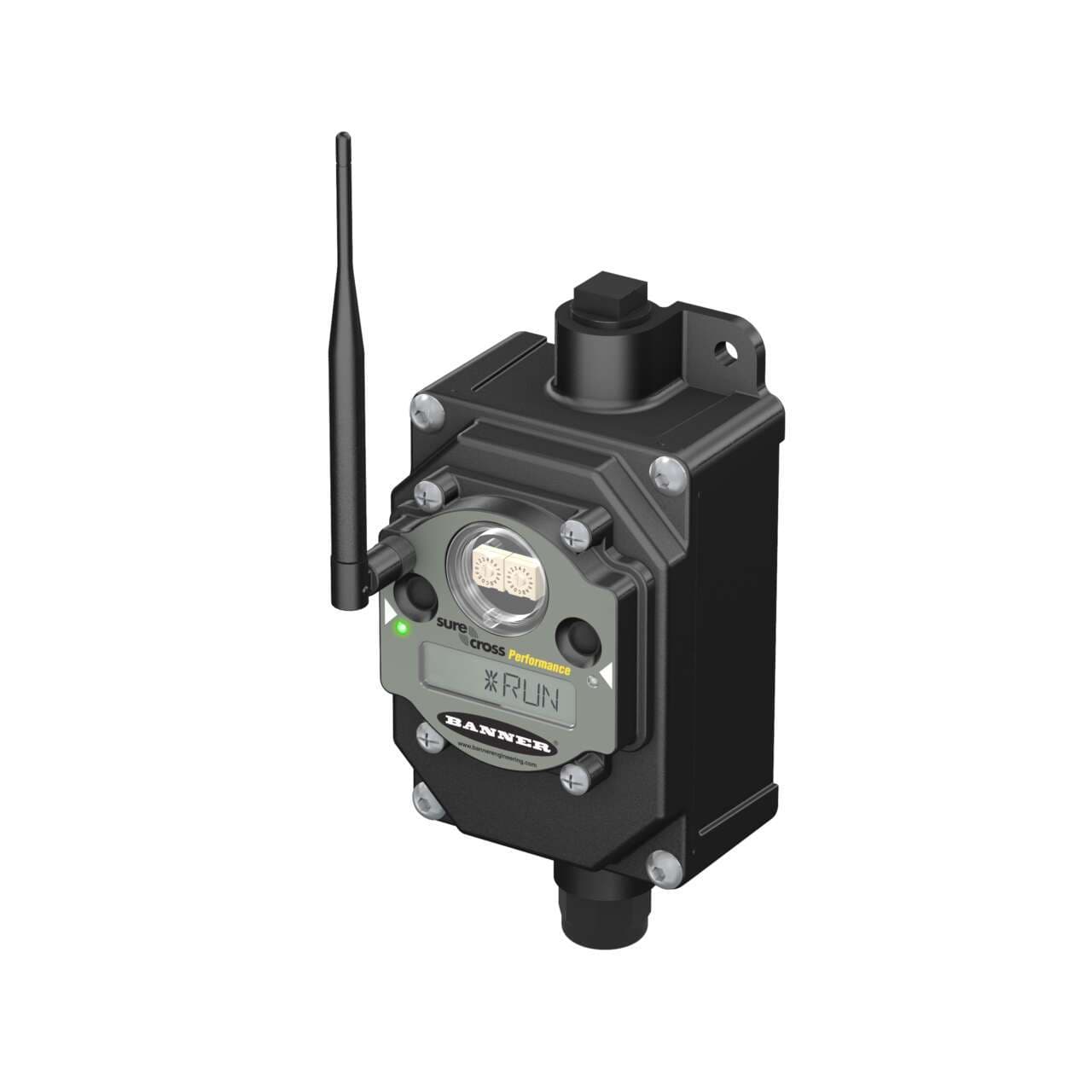

Banner Engineering DX80N2X1S-P3E is a Remote Terminal Unit (RTU) designed for surface mounting. It features a polycarbonate housing, a polycarbonate rotary dial cover, polyester labels, an EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. This unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP65 and NEMA 4X. Its dimensions are H81.3mm x W167.4mm x D87.6mm. The DX80N2X1S-P3E includes 1 digital output (30Vdc; NMOS; 1A), 4 analog inputs for thermocouples (types B, C, E, J, K, L, N, R, S, T, U; with 24-bit A/D conversion), and 1 analog input for a thermistor for CJC (with 24-bit A/D conversion). It also features 2 digital inputs (30Vdc 3mA; PNP/NPN), operates on a transmission frequency of 2400 MHz, and has a rectangular shape. This RTU is part of the SureCross DX80 series and is designed with 2 buttons, 2 bi-color LEDs for Ex e II applications, an environmental housing with an internal battery, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology. Connection is facilitated through a wiring chamber with screw-clamp connections and 2 x 1/2" NPT threaded cable accesses, along with an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.), operates on a frequency of 2.4GHz ISM band at 65mW, and can achieve a maximum transmission distance of 3.2km at nominal emission power.
