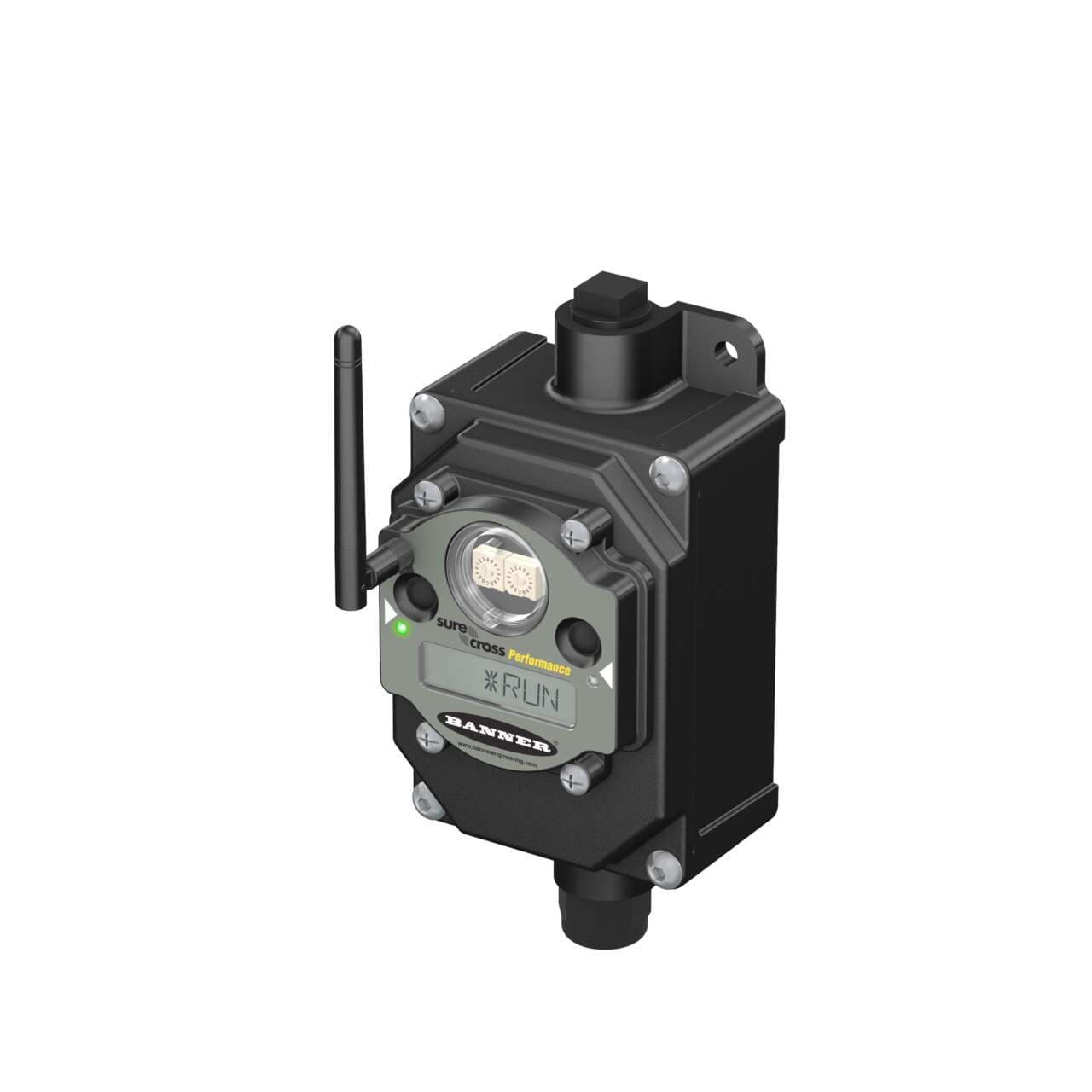

DX80N2X1S-P1E Banner I/O Modules

Banner Engineering DX80N2X1S-P1E is a Remote Terminal Unit (RTU) designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP65 and NEMA 4X. The dimensions of this rectangular-shaped unit are H81.3mm x W167.4mm x D87.6mm. It features 2 digital outputs (30Vdc; NMOS Sinking; 1A), 2 analog inputs (0-20mA / 0-10Vdc / Thermistor 10kΩ; 12-bit), and 2 digital inputs (30Vdc 3mA; PNP/NPN). This part of the SureCross DX80 series incorporates performance node functions, 2 buttons, 2 bi-color LEDs for Ex e II applications, and an environmental housing with an internal battery. It utilizes FHSS (Frequency Hopping Spread Spectrum) technology for communication, with a transmission frequency of 2400 MHz. The connection type is a wiring chamber with screw-clamp connections and 2 x 1/2" NPT threaded cable accesses alongside an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.), operates on a 2.4GHz ISM band at 65mW, and can achieve a maximum transmission distance of 3.2km at nominal emission power.
