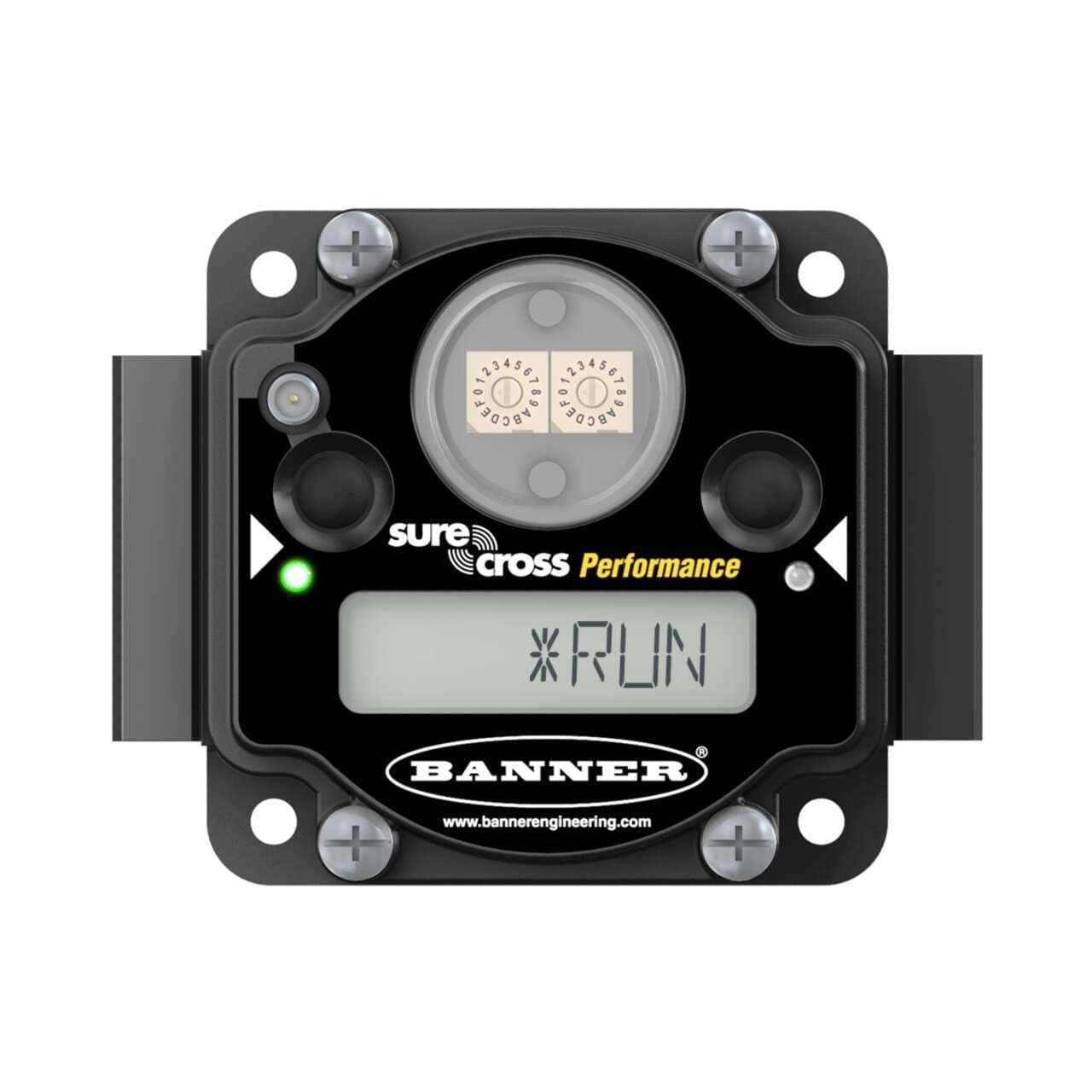

DX80G9M6S-PM8C Banner I/O Modules

DX80G9M6S-PM8C on Powermatic Associates
Banner

Part#:DX80G9M6S-PM8C

Manufacturer:Banner

Alt. Part#:87102

Product Lifecycle:Active

Get a quick Quote!

PM Series Gateway - LCD Selectable I/O Mapping; 900 MHz IP20, NEMA 1; Inputs: Six Sourcing/PNP Discrete; Outputs: Six Sourcing/PNP Discrete; External Terminals

About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DX80G9M6S-PM8C Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    421.84056 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    No
  • Wireless
    Yes
  • RS-485
    Yes
  • Wireless Radio Frequency
    900 MHz
  • RS-232
    No
  • PROFINET
    No
  • Modbus/TCP
    No
  • Modbus RTU
    Yes
  • Feature: Hazardous Area
    Yes
  • EtherNet/IP
    No
  • Point-to-Point Topology
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Relative Humidity
    95%
  • Tree Topology
    No
  • Hazardous/Intrinsically Safe Classification
    Class I, Division 2/Zone 2; ATEX Zone 2
  • Max Operating Temperature ( °C)
    85
  • Min Temp Operating Conditions
    -40
  • LCD Display
    Yes
  • Star Topology
    Yes
  • Min Operating Temperature ( °C)
    -40
  • Max Temp Operating Conditions
    85
  • Environmental Rating (NEMA)
    NEMA 1
  • Power Supply
    10-30 V dc
  • Output Details
    6 PNP Discrete
  • Environmental Rating (IP)
    IP20
  • Input/Output
    Discrete
  • Device Type
    Gateway
  • Power
    DC
  • Discrete Outputs
    Yes
  • Input Details
    6 PNP Discrete
  • Housing Style
    External Terminals
  • Discrete Inputs
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DX80G9M6S-PM8C Description

Banner Engineering DX80G9M6S-PM8C is a gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 and NEMA 1. This rectangular-shaped gateway measures H44.5mm x W103.3mm x D80.1mm and features 6 digital outputs (30Vdc; PNP; 100mA) and 6 digital inputs (30Vdc 3mA; Sourcing), suitable for diverse applications. It utilizes a 900 MHz transmission frequency with a maximum transmission distance of 9.6km at nominal emission power. The DX80G9M6S-PM8C supports RS-485 Modbus RTU communication protocol and operates on a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.). Its design includes I.O. mapping, 2 buttons, 2 bi-color LEDs for Ex e II applications, and employs FHSS (Frequency Hopping Spread Spectrum) technology for enhanced communication reliability. Connection is facilitated through detachable screw-clamp connectors and an RP-SMA connector, aligning with the PM series' focus on wire replacement solutions.

Related documents DX80G9M6S-PM8C Specs

DX80G9M6S-PM8C 173569.pdf
