DX80G9M6S-PM2C Banner I/O Modules

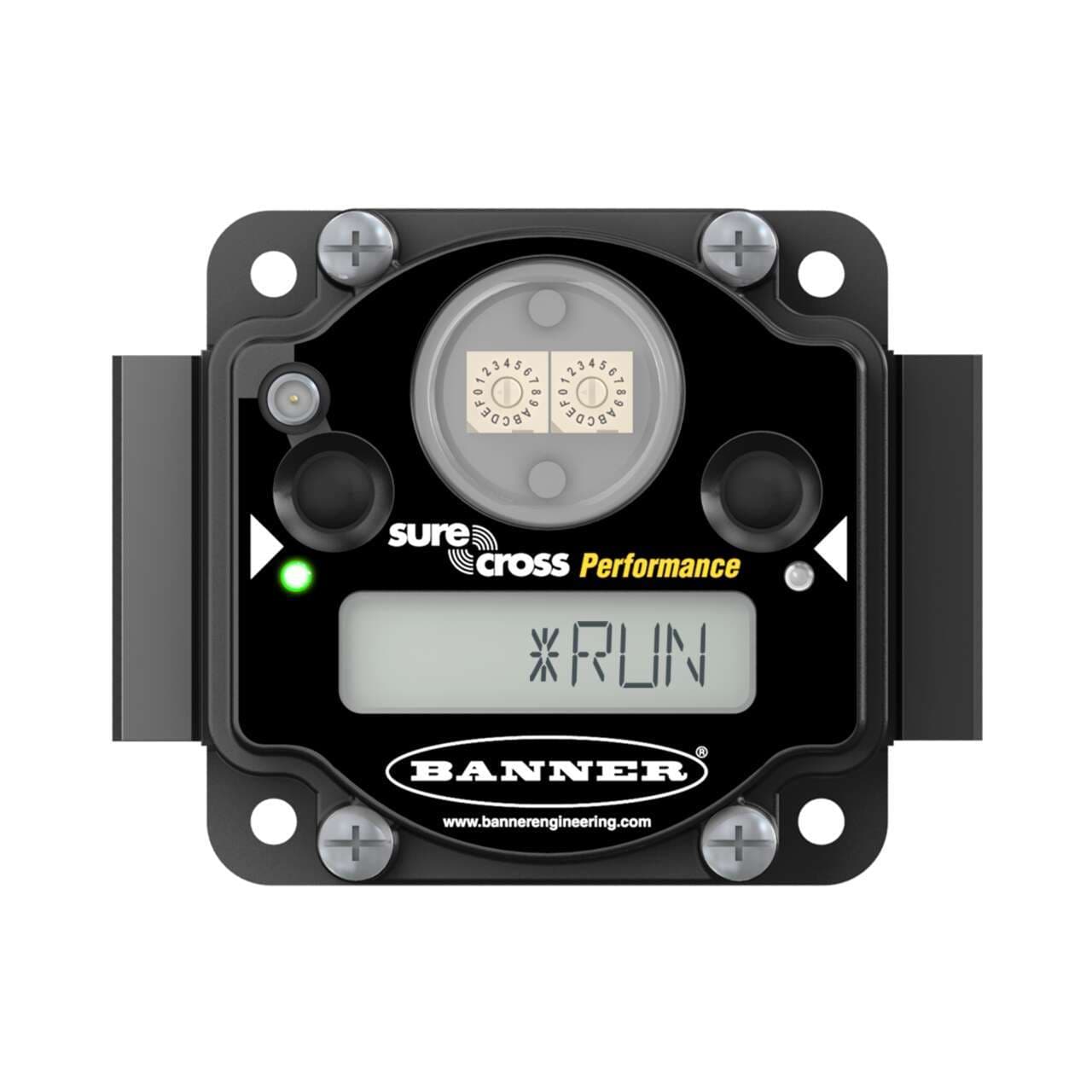

Banner Engineering DX80G9M6S-PM2C is a gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers 2 analog outputs (0-20mA; 12-bit), with a degree of protection rated at IP20 NEMA 1. The dimensions of this rectangular-shaped gateway are H44.5mm x W103.3mm x D80.1mm. It features 4 digital outputs (30Vdc; PNP; 100mA) and 2 analog inputs (0-20mA; 12-bit), alongside 4 digital inputs (30Vdc 3mA; PNP/NPN). This part of the PM series - wire replacement operates on a 900 MHz transmission frequency with FHSS (Frequency Hopping Spread Spectrum) technology for Ex e II applications, including I.O. mapping, 2 x buttons, and 2 x bi-color LEDs. It uses detachable screw-clamp connectors and an RP-SMA connector for connections, requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.), and supports the RS-485 Modbus RTU communication protocol. The frequency is set at the 900MHz ISM band 1W, capable of a maximum 9.6km transmission distance at nominal emission power.
