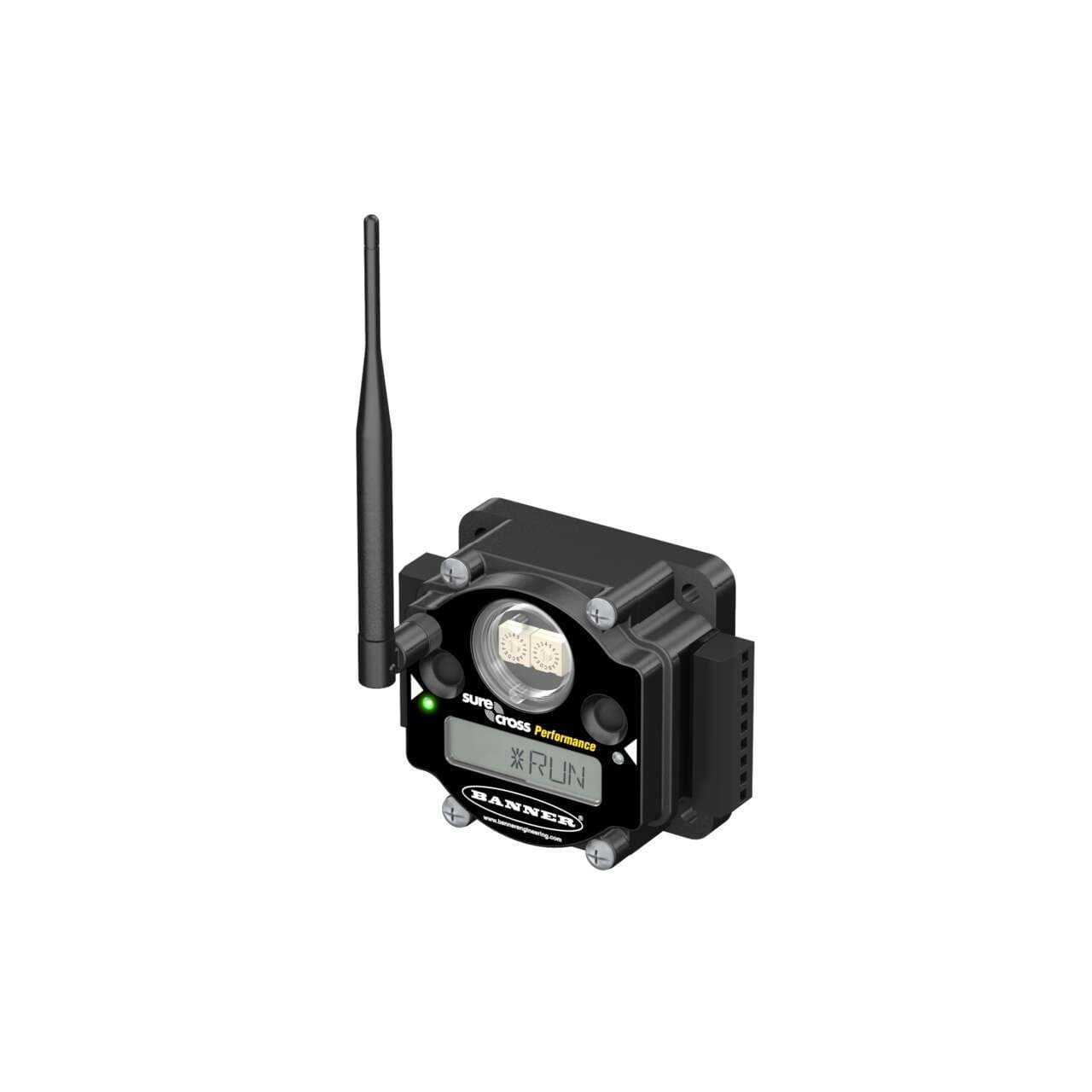

DX80G9M6S-P8C Banner I/O Modules

DX80G9M6S-P8C on Powermatic Associates
Banner

Part#:DX80G9M6S-P8C

Manufacturer:Banner

Alt. Part#:18792

Product Lifecycle:Active

Get a quick Quote!

DX80 Perf 900 mHz Gateway 1 W IP20 C; 10-30 V dc Ext Antenna RS485; Up to 12 Disc PNP IO; External Terminals

About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DX80G9M6S-P8C Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    476.2716 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    No
  • Wireless Radio Frequency
    900 MHz
  • Wireless
    Yes
  • RS-232
    No
  • PROFINET
    No
  • RS-485
    Yes
  • Modbus/TCP
    No
  • Modbus RTU
    Yes
  • Tree Topology
    No
  • EtherNet/IP
    No
  • Feature: Hazardous Area
    Yes
  • Star Topology
    Yes
  • Point-to-Point Topology
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Relative Humidity
    95%
  • Min Operating Temperature ( °C)
    -40
  • Max Operating Temperature ( °C)
    85
  • Environmental Rating (NEMA)
    NEMA 1
  • Min Temp Operating Conditions
    -40
  • Hazardous/Intrinsically Safe Classification
    Class I, Division 2/Zone 2; ATEX Zone 2
  • LCD Display
    Yes
  • Max Temp Operating Conditions
    85
  • Environmental Rating (IP)
    IP20
  • Power Supply
    10-30 V dc
  • Housing Style
    External Terminals
  • Input Details
    up to 12 sourcing inputs
  • Device Type
    Gateway
  • Output Details
    up to 12 sourcing outputs
  • Discrete Outputs
    Yes
  • Discrete Inputs
    Yes
  • Input/Output
    Discrete
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DX80G9M6S-P8C Description

Banner Engineering DX80G9M6S-P8C is a gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 NEMA 1. This rectangular-shaped gateway measures H44.5mm x W103.3mm x D80.1mm and utilizes a 900 MHz transmission frequency. It features 12 digital inputs (30Vdc 3mA; Sourcing) that can also function as digital sourcing outputs (100mA 30Vdc). As part of the SureCross DX80 series, it is designed for Ex e II applications and incorporates FHSS (Frequency Hopping Spread Spectrum) technology and Time Division Multiple Access (TDMA) to enhance performance. The DX80G9M6S-P8C includes detachable screw-clamp connectors and an RP-SMA connector for connectivity, requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.), and supports RS-485 Modbus RTU communication protocol. With a frequency of 900MHz ISM band 1W, it can achieve a maximum transmission distance of 9.6km at nominal emission power.

Related documents DX80G9M6S-P8C Specs

DX80G9M6S-P8C 158214.pdf
