DX80G9M6S-P2C Banner I/O Modules
Part#:DX80G9M6S-P2C
Manufacturer:Banner
Alt. Part#:18787
Product Lifecycle:Active
Get a quick Quote!
DX80 Perf 900 mHz Gateway 1 W IP20 C; 10-30 V dc Ext Antenna RS485; In: 4 Disc 2 Anlg Uni; Out: 4 Disc PNP 2 Anlg 0-20 mA; External Terminals
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80G9M6S-P2C Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 498.9512 g
- Country Of Origin US
- 1-wire Serial Interface No
- Feature: Hazardous Area Yes
- Wireless Radio Frequency 900 MHz
- RS-485 Yes
- Wireless Yes
- Modbus RTU Yes
- Modbus/TCP No
- EtherNet/IP No
- RS-232 No
- Tree Topology No
- Point-to-Point Topology Yes
- Star Topology Yes
- PROFINET No
- Point-to-Multipoint Topology Yes
- Relative Humidity 95%
- Min Operating Temperature ( °C) -40
- Max Operating Temperature ( °C) 85
- Min Temp Operating Conditions -40
- LCD Display Yes
- Environmental Rating (IP) IP20
- Max Temp Operating Conditions 85
- Environmental Rating (NEMA) NEMA 1
- Hazardous/Intrinsically Safe Classification Class I, Division 2/Zone 2; ATEX Zone 2
- Power Supply 10-30 V dc
- Output Details 4 Sourcing Discrete, 2 0-20mA Analog
- Input/Output Analog & Discrete
- Analog Outputs Yes
- Input Details 4 Selectable Discrete, 2 0-20 mA or 0-10 V
- Analog Inputs Yes
- Power DC
- Discrete Outputs Yes
- Housing Style External Terminals
- Device Type Gateway
- Discrete Inputs Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
DX80G9M6S-P2C Description

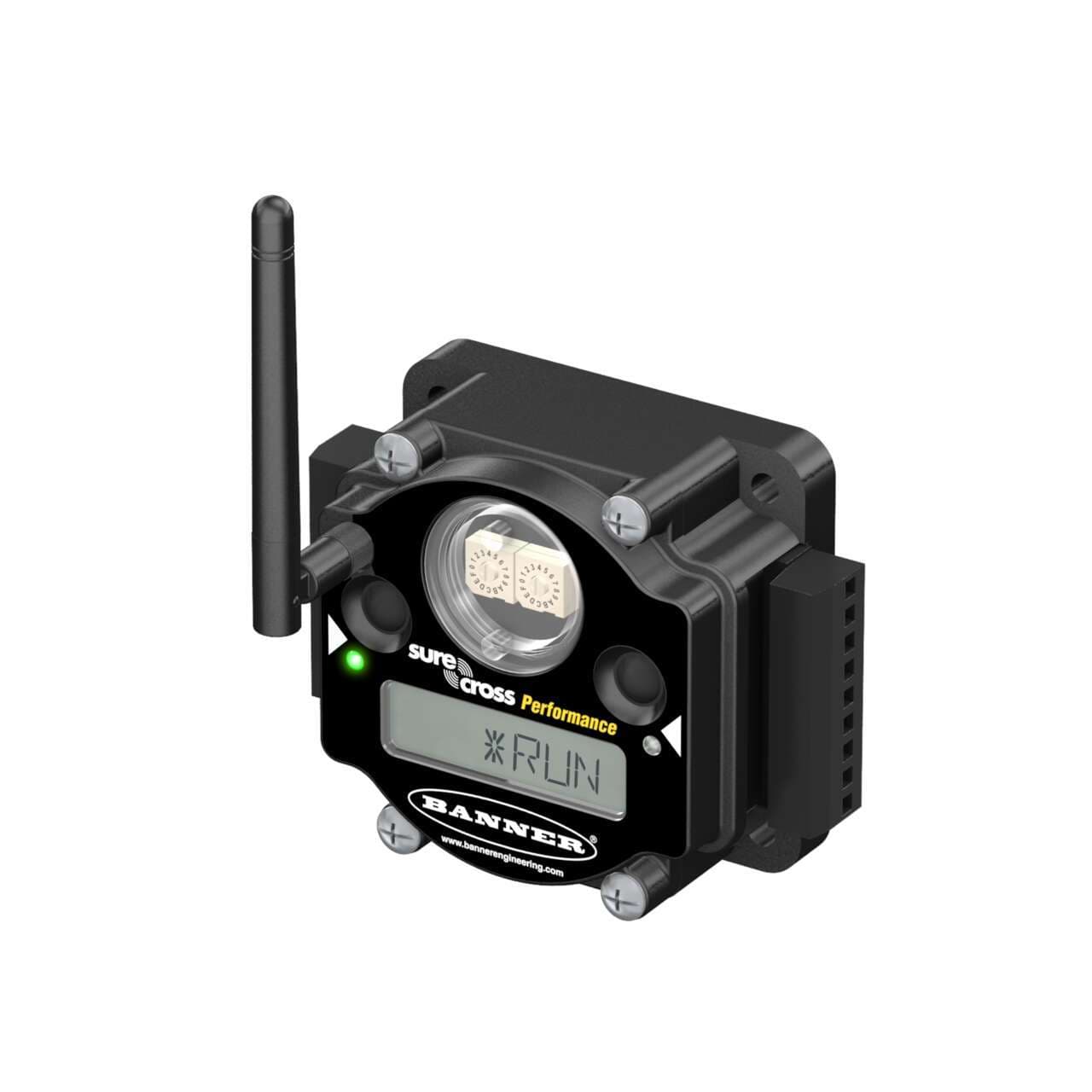

Banner Engineering DX80G9M6S-P2C is a gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers 2 analog outputs (0-20mA; 12-bit), ensuring compatibility with various analog devices. This gateway is protected to IP20 and NEMA 1 standards, with dimensions of H44.5mm x W103.3mm x D80.1mm. It features 4 digital outputs (30Vdc; PNP; 100mA) and 2 analog inputs (0-20mA / 0-10Vdc; 12-bit), alongside 4 digital inputs (30Vdc 3mA; PNP/NPN), catering to a wide range of digital and analog signal requirements. The DX80G9M6S-P2C operates on a 900 MHz transmission frequency with a maximum transmission distance of 9.6km (at nominal emission power), utilizing FHSS (Frequency Hopping Spread Spectrum) technology for enhanced communication reliability. It is designed with 2 buttons, 2 bi-color LEDs for Ex e II applications, detachable screw-clamp connectors, and an RP-SMA connector for versatile connectivity options. The supply voltage ranges from 10-30Vdc (12Vdc-24Vdc nom.), and it supports RS-485 Modbus RTU communication protocol, making it suitable for a variety of industrial applications within the SureCross DX80 series.
Related documents DX80G9M6S-P2C Specs
Manufacturer warranty
$699.00
Request a quote, and we will send availability within minutes.
Select Qty:
$699.00
$699.00 each
