DX80G2M6S-PM8C Banner I/O Modules

Name: DX80G2M6S-PM8C
Brand: Banner
Price: 599 USD
Availability: BackOrder

Part#:DX80G2M6S-PM8C

Manufacturer:Banner

Alt. Part#:87103

Product Lifecycle:Active

Get a quick Quote!

PM Series Gateway - LCD Selectable I/O Mapping; 2.4 GHz IP20, NEMA 1; Inputs: Six Sourcing/PNP Discrete; Outputs: Six Sourcing/PNP Discrete; External Terminals

About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DX80G2M6S-PM8C Banner price in the box on the right side or send a quick quote.

Product Details

Weight
421.84056 g
Country Of Origin
US
Wireless Radio Frequency
2.4 GHz
1-wire Serial Interface
No
PROFINET
No
Modbus/TCP
No
Wireless
Yes
RS-485
Yes
RS-232
No
Feature: Hazardous Area
Yes
Modbus RTU
Yes
EtherNet/IP
No
Tree Topology
No
Star Topology
Yes
Point-to-Point Topology
Yes
Point-to-Multipoint Topology
Yes
Relative Humidity
95%
Max Temp Operating Conditions
85
LCD Display
Yes
Max Operating Temperature ( °C)
85

Min Temp Operating Conditions

-40

Min Operating Temperature ( °C)

-40

Hazardous/Intrinsically Safe Classification

Class I, Division 2/Zone 2; ATEX Zone 2

Environmental Rating (NEMA)

NEMA 1

Environmental Rating (IP)

IP20

Input Details

6 PNP Discrete

Output Details

6 PNP Discrete

Housing Style

External Terminals

Discrete Inputs

Yes

Power Supply

10-30 V dc

Discrete Outputs

Yes

Input/Output

Discrete

Device Type

Gateway

Power

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DX80G2M6S-PM8C Description

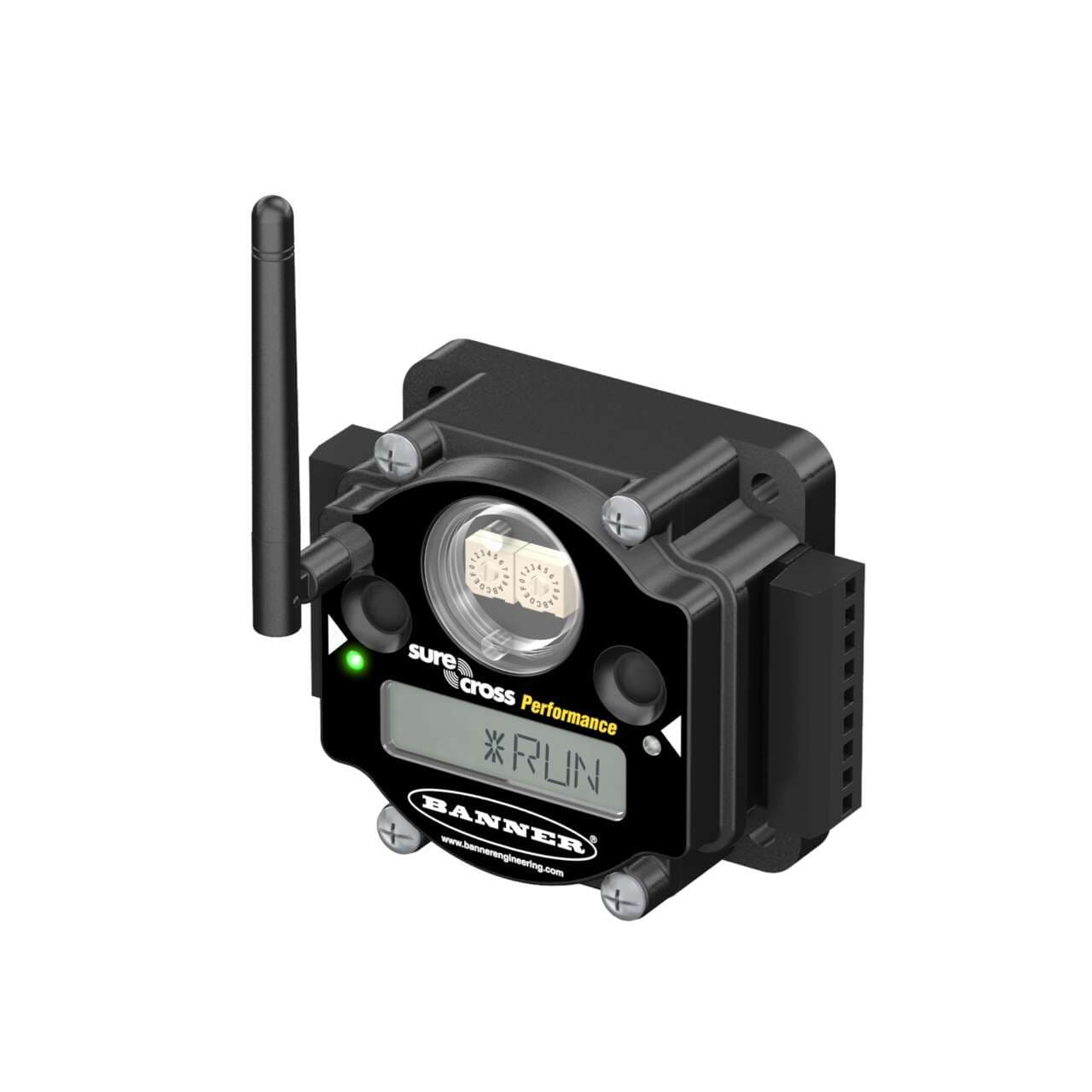

Banner Engineering DX80G2M6S-PM8C is a gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 NEMA 1. The dimensions of this rectangular-shaped gateway are H44.5mm x W103.3mm x D80.1mm. It features 6 digital outputs (30Vdc; PNP; 100mA) and 6 digital inputs (30Vdc 3mA; Sourcing), suitable for diverse applications. The DX80G2M6S-PM8C operates on a transmission frequency of 2400 MHz and utilizes FHSS (Frequency Hopping Spread Spectrum) technology for enhanced communication reliability. It is part of the PM series, designed for wire replacement in Ex e II applications, and includes I.O. mapping, 2 buttons, and 2 bi-color LEDs for operational status indication. Connection is facilitated through detachable screw-clamp connectors and an RP-SMA connector, with a supply voltage requirement of 10-30Vdc (12Vdc-24Vdc nom.). This gateway supports RS-485 Modbus RTU communication protocol and operates on the 2.4GHz ISM band with a 65mW frequency, capable of achieving a maximum transmission distance of 3.2km at nominal emission power.
