DX80G2M6S-PM8 Banner I/O Modules

Name: DX80G2M6S-PM8
Brand: Banner
Price: 599 USD
Availability: BackOrder

Part#:DX80G2M6S-PM8

Manufacturer:Banner

Alt. Part#:87099

Product Lifecycle:Active

Get a quick Quote!

PM Series Gateway - LCD Selectable I/O Mapping; 2.4 GHz IP67, NEMA 6; Inputs: Six Sourcing/PNP Discrete; Outputs: Six Sourcing/PNP Discrete

About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DX80G2M6S-PM8 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
421.84056 g
Country Of Origin
US
Wireless
Yes
1-wire Serial Interface
No
Wireless Radio Frequency
2.4 GHz
RS-485
Yes
RS-232
No
PROFINET
No
Modbus/TCP
No
Modbus RTU
Yes
EtherNet/IP
No
Tree Topology
No
Point-to-Point Topology
Yes
Feature: Hazardous Area
No
Star Topology
Yes
Point-to-Multipoint Topology
Yes
Relative Humidity
95%
Min Temp Operating Conditions
-40
Min Operating Temperature ( °C)
-40
Max Operating Temperature ( °C)
85

Environmental Rating (NEMA)

NEMA 6

Environmental Rating (IP)

IP67

Max Temp Operating Conditions

Power Supply

10-30 V dc

Output Details

6 PNP Discrete

LCD Display

Yes

Input Details

6 PNP Discrete

Discrete Inputs

Yes

Input/Output

Discrete

Device Type

Gateway

Power

Discrete Outputs

Yes

Housing Style

Enclosed Terminals

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DX80G2M6S-PM8 Description

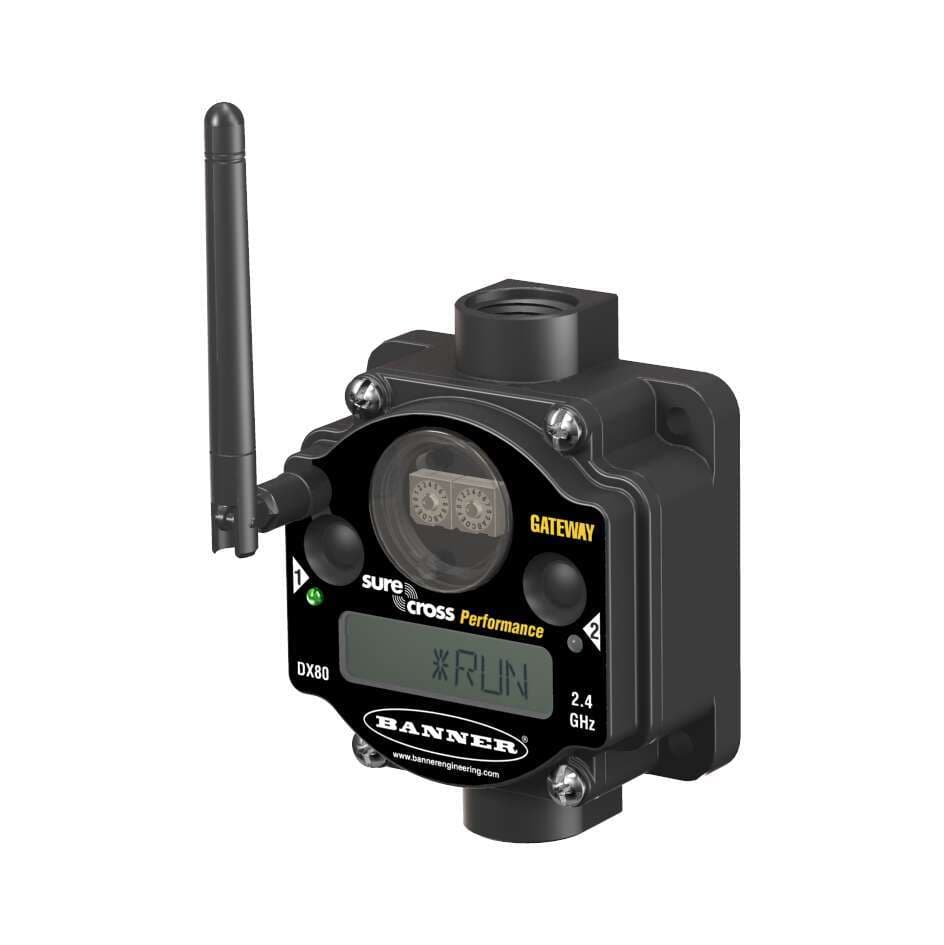

Banner Engineering DX80G2M6S-PM8 is a gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 NEMA 6. The dimensions of this rectangular-shaped gateway are H47.3mm x W80.9mm x D80.1mm. It features 6 digital outputs (30Vdc; PNP; 100mA) and 6 digital inputs (30Vdc 3mA; Sourcing). This part of the PM series supports I.O. mapping, has 2 buttons, 2 bi-color LEDs, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology for communication. The connection is facilitated through a wiring chamber with screw-clamp connections and 2 x 1/2" NPT threaded cable accesses alongside an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) and communicates via RS-485 Modbus RTU protocol. Operating on a frequency of 2.4GHz ISM band 65mW, it can achieve a maximum transmission distance of 3.2km at nominal emission power.

$599.00
