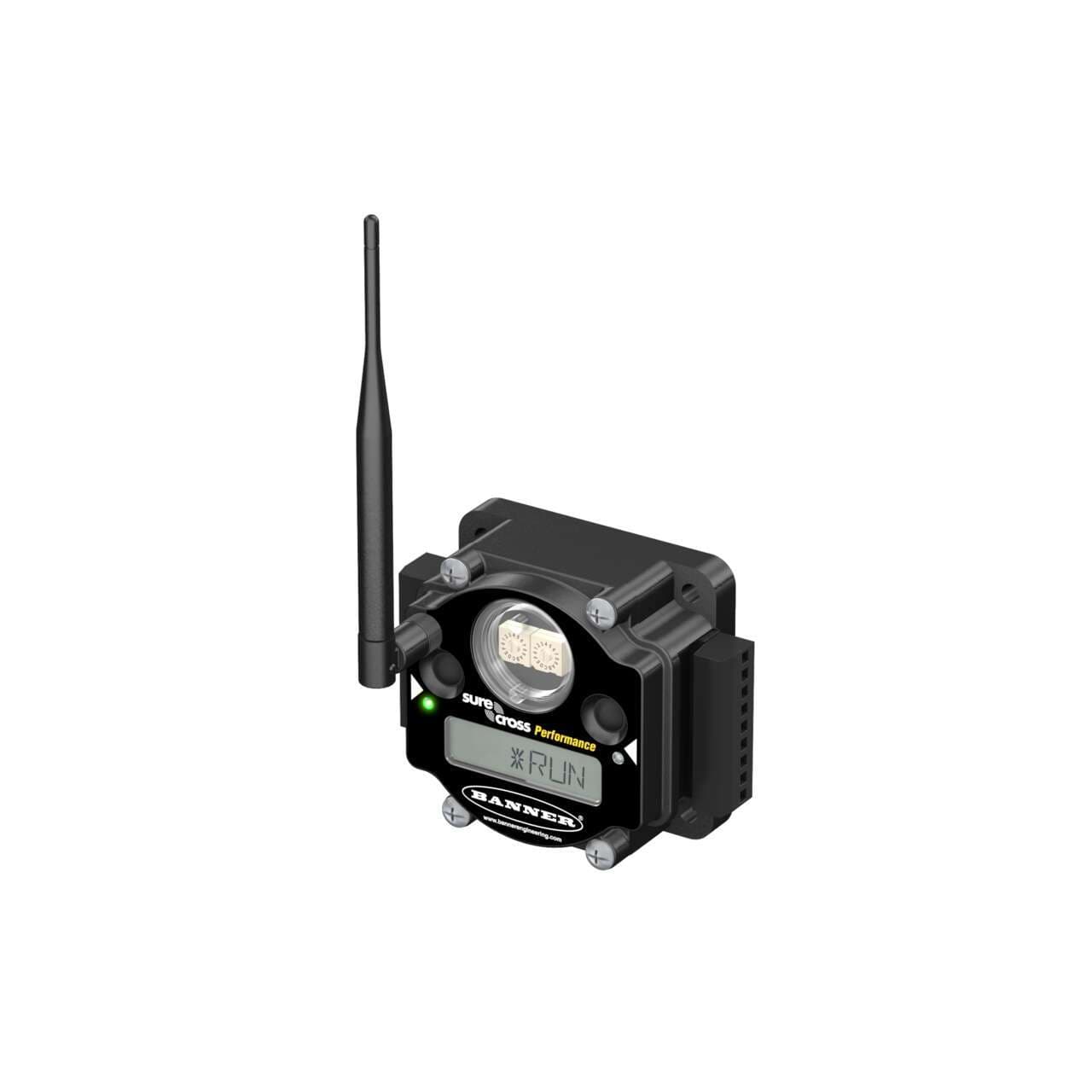

DX80G2M6S-PM2C Banner I/O Modules

Banner Engineering DX80G2M6S-PM2C is a gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 NEMA 1. This gateway features dimensions of H44.5mm x W103.3mm x D80.1mm and is equipped with 2 analog outputs (0-20mA; 12-bit), 4 digital outputs (30Vdc; PNP; 100mA), 2 analog inputs (0-20mA; 12-bit), and 4 digital inputs (30Vdc 3mA; PNP/NPN). It operates on a transmission frequency of 2400 MHz within a rectangular shape. The DX80G2M6S-PM2C is part of the PM series, designed for wire replacement and includes I.O. mapping, 2 buttons, 2 bi-color LEDs for Ex e II applications, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology. Connection is facilitated through detachable screw-clamp connectors and an RP-SMA connector, with a supply voltage requirement of 10-30Vdc (12Vdc-24Vdc nom.). It supports RS-485 Modbus RTU communication protocol, operates on a 2.4GHz ISM band at 65mW, and can achieve a maximum transmission distance of 3.2km at nominal emission power.
