DX80G2M6S-P8C Banner I/O Modules

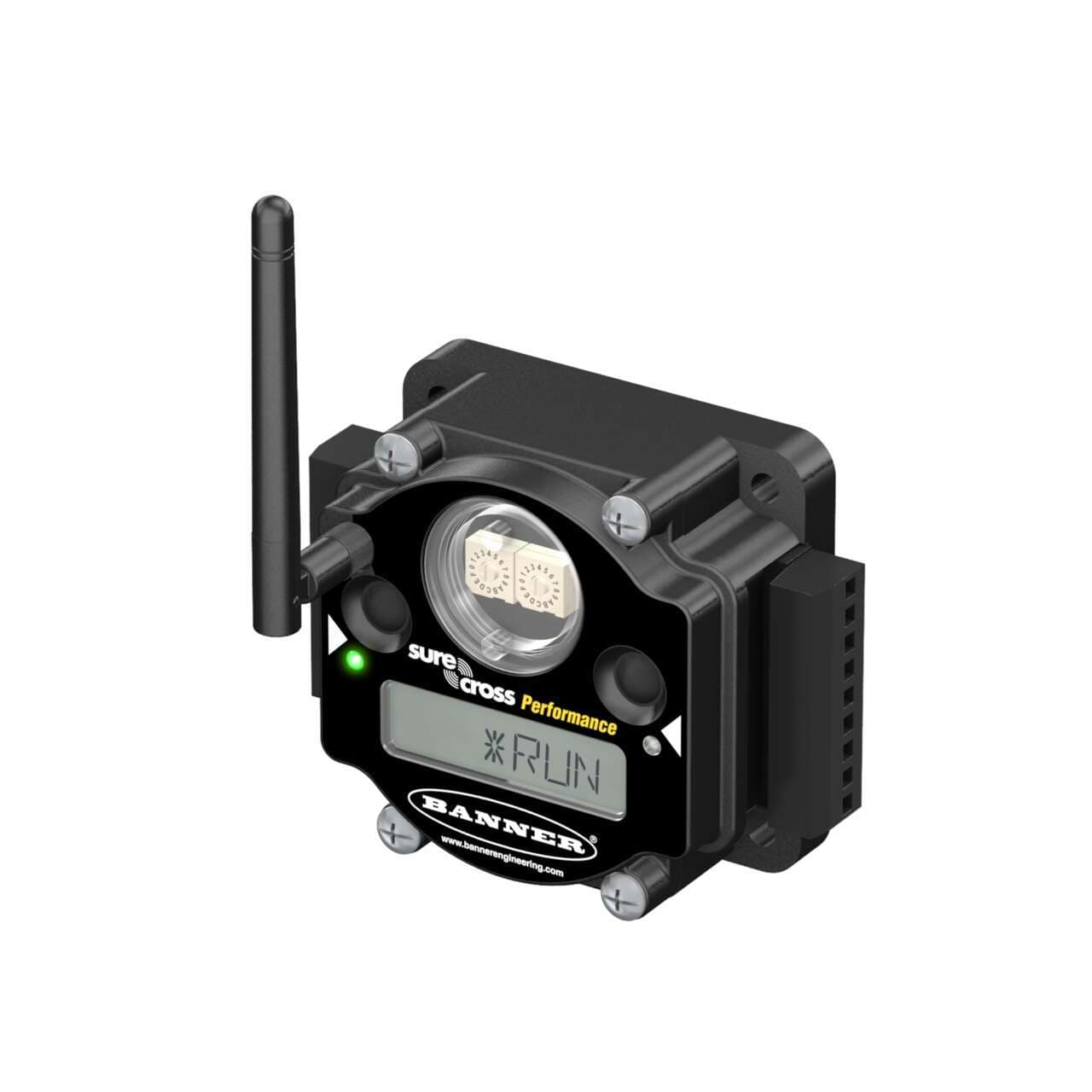

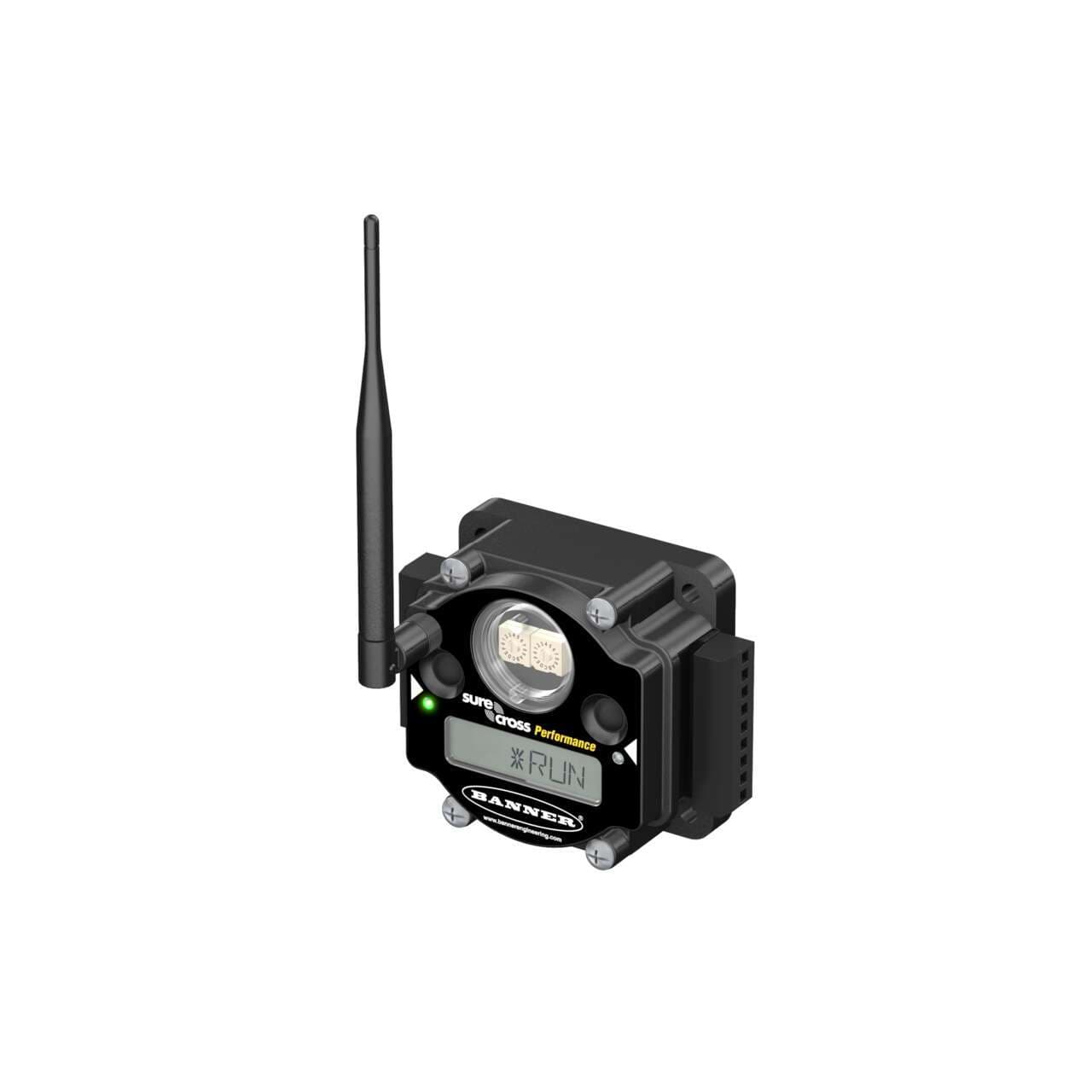

Banner Engineering DX80G2M6S-P8C is a gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 NEMA 1. The dimensions of this rectangular-shaped gateway are H44.5mm x W103.3mm x D80.1mm. It operates at a transmission frequency of 2400 MHz and includes 12 x digital inputs (30Vdc 3mA; Sourcing) which can also be used as digital sourcing outputs (100mA 30Vdc). This performance gateway, part of the SureCross DX80 series, features I.O. with 2 x buttons, 2 x bi-color LEDs suitable for Ex e II applications, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology alongside Time Division Multiple Access (TDMA). Connection is facilitated through detachable screw-clamp connectors and an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) and communicates via RS-485 Modbus RTU protocol. The frequency is set within the 2.4GHz ISM band at 65mW, supporting a maximum transmission distance of 3.2km at nominal emission power.
