DX80G2M6S-P2C Banner I/O Modules

DX80G2M6S-P2C on Powermatic Associates
Banner

Part#:DX80G2M6S-P2C

Alt. Part#:18788

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

DX80 Perf 2.4 GHz Gateway 65 mW IP20 C; 10-30 V dc Ext Antenna RS485; In: 4 Disc 2 Anlg Uni; Out: 4 Disc PNP 2 Anlg 0-20 mA; External Terminals

Product Details

  • Weight
    612.3492 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    No
  • Wireless Radio Frequency
    2.4 GHz
  • Wireless
    Yes
  • RS-485
    Yes
  • PROFINET
    No
  • Modbus/TCP
    No
  • Modbus RTU
    Yes
  • Feature: Hazardous Area
    Yes
  • RS-232
    No
  • EtherNet/IP
    No
  • Tree Topology
    No
  • Star Topology
    Yes
  • Point-to-Point Topology
    Yes
  • Relative Humidity
    95%
  • Min Operating Temperature ( °C)
    -40
  • Point-to-Multipoint Topology
    Yes
  • Max Operating Temperature ( °C)
    85
  • Min Temp Operating Conditions
    -40
  • LCD Display
    Yes
  • Hazardous/Intrinsically Safe Classification
    Class I, Division 2/Zone 2; ATEX Zone 2
  • Environmental Rating (NEMA)
    NEMA 1
  • Environmental Rating (IP)
    IP20
  • Max Temp Operating Conditions
    85
  • Power Supply
    10-30 V dc
  • Output Details
    4 Sourcing Discrete, 2 0-20mA Analog
  • Input Details
    4 Selectable Discrete, 2 0-20 mA or 0-10 V
  • Discrete Outputs
    Yes
  • Analog Inputs
    Yes
  • Housing Style
    External Terminals
  • Input/Output
    Analog & Discrete
  • Discrete Inputs
    Yes
  • Analog Outputs
    Yes
  • Device Type
    Gateway
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DX80G2M6S-P2C on Powermatic Associates is $699.00. Order now.


About the product

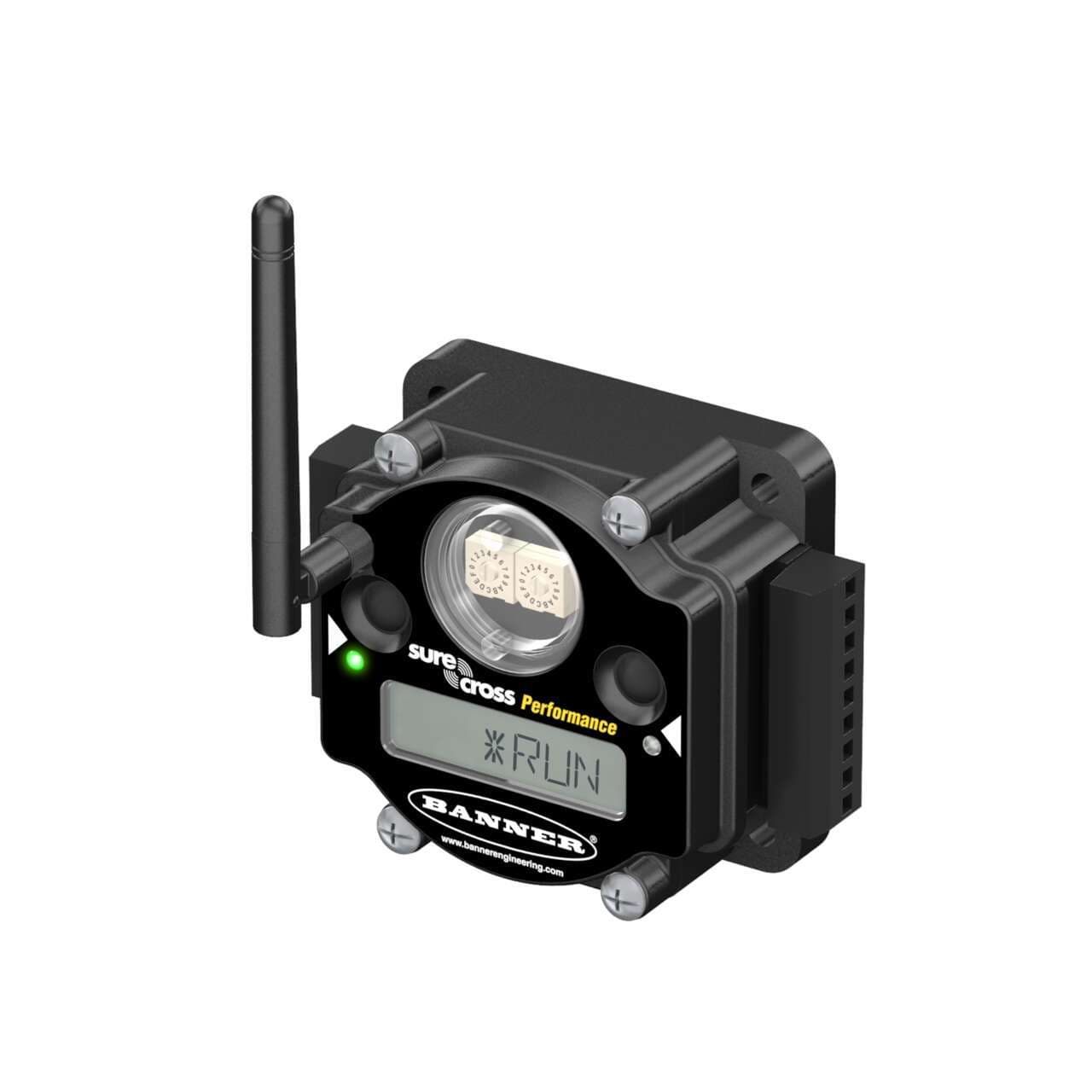

Banner Engineering DX80G2M6S-P2C is a gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers 2 analog outputs (0-20mA; 12-bit), with a degree of protection rated at IP20 NEMA 1. The dimensions of this rectangular-shaped gateway are H44.5mm x W103.3mm x D80.1mm. It features 4 digital outputs (30Vdc; PNP; 100mA) and 2 analog inputs (0-20mA / 0-10Vdc; 12-bit), alongside 4 digital inputs (30Vdc 3mA; PNP/NPN). This performance gateway, part of the SureCross DX80 series, is designed with 2 buttons, 2 bi-color LEDs for Ex e II applications, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology. It includes detachable screw-clamp connectors and an RP-SMA connector for connectivity, requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.), and supports RS-485 Modbus RTU communication protocol. Operating on a 2.4GHz ISM band frequency with 65mW, it can achieve a maximum transmission distance of 3.2km at nominal emission power.
