DX80DR9M-H12C Banner Electronic Components

DX80DR9M-H12C on Powermatic Associates
Banner

Part#:DX80DR9M-H12C

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

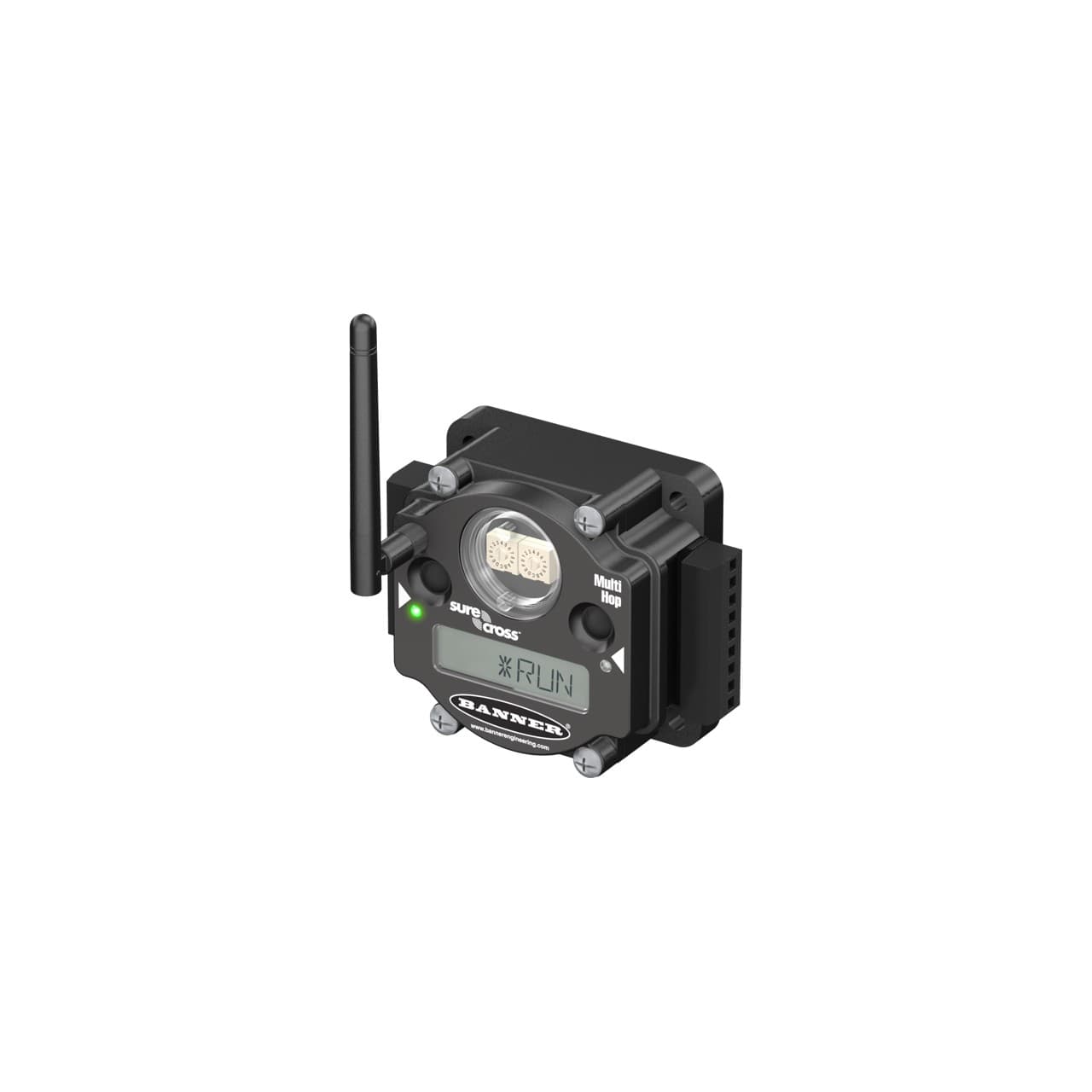

Banner Engineering DX80DR9M-H12C is a Gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 NEMA 1. The dimensions of this rectangular-shaped gateway are H44.5mm x W103.3mm x D80.1mm. It features 2 digital outputs (30Vdc; NMOS; 1A), 2 analog inputs (0-20mA), and 1 analog input (Thermistor 10kΩ). The DX80DR9M-H12C operates on a 900 MHz transmission frequency with 2 digital inputs (30Vdc 3mA; NPN). It is part of the MultiHop Modbus IO data radios sub-range and incorporates MultiHop flexpower data radio functionality. The design includes SDI-12 data collection, 2 buttons, 2 bi-color LEDs for Ex e II applications, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology. Connection is facilitated through detachable screw-clamp connectors and an RP-SMA connector. The supply voltage requirement is 10-30Vdc (12Vdc-24Vdc nom.), and it supports RS-485 Modbus TCP communication protocol. The frequency is set at 900MHz ISM band 1W, capable of a maximum transmission distance of 9.6km at nominal emission power.

Product Details

  • Discrete Inputs
    Yes
  • Hazardous/Intrinsically Safe Classification
    Class I, Division 2/Zone 2; ATEX Zone 2
  • Feature: Hazardous Area
    Yes
  • Power Supply
    10-30 V dc or 3.6-5.5 V dc low power option
  • Max Operating Temperature ( °C)
    80
  • Relative Humidity
    95%
  • Power
    Flex Power
  • Output Details
    2 NMOS Discrete
  • Device Type
    Multihop Data Radio
  • Point-to-Multipoint Topology
    Yes
  • Tree Topology
    Yes
  • Discrete Outputs
    Yes
  • LCD Display
    Yes
  • Min Operating Temperature ( °C)
    -20
  • PROFINET
    No
  • Input/Output
    Analog & Discrete
  • Environmental Rating (IP)
    IP20
  • Point-to-Point Topology
    Yes
  • 1-wire Serial Interface
    No
  • Housing Style
    External Terminals
  • Min Temp Operating Conditions
    -20
  • Ships With Battery
    No
  • Max Temp Operating Conditions
    80
  • Application: Temperature Input
    Yes
  • RS-232
    No
  • Analog Inputs
    Yes
  • Environmental Rating (NEMA)
    NEMA 1
  • Star Topology
    Yes
  • EtherNet/IP
    No
  • Input Details
    2 Discrete, 2 0-20 mA, 1 Thermistor, 2 SDI-12
  • Wireless Radio Frequency
    900 MHz
  • Modbus/TCP
    No
  • Wireless
    Yes
  • Modbus RTU
    Yes
  • RS-485
    Yes
  • Application: Soil Moisture Monitoring
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DX80DR9M-H12C Related Documents

MultiHop H12 Radio with SDI-12-1630954437416.pdfDX80...C TYPICAL-1630954437418.stpDX80...C TYPICAL-1630954437412.pdf
