DEK100-A2R1-A Banner I/O Modules

DEK100-A2R1-A on Powermatic Associates
Banner
  • DEK100-A2R1-A
  • DEK100-A2R1-A

Part#:DEK100-A2R1-A

Alt. Part#:812536

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

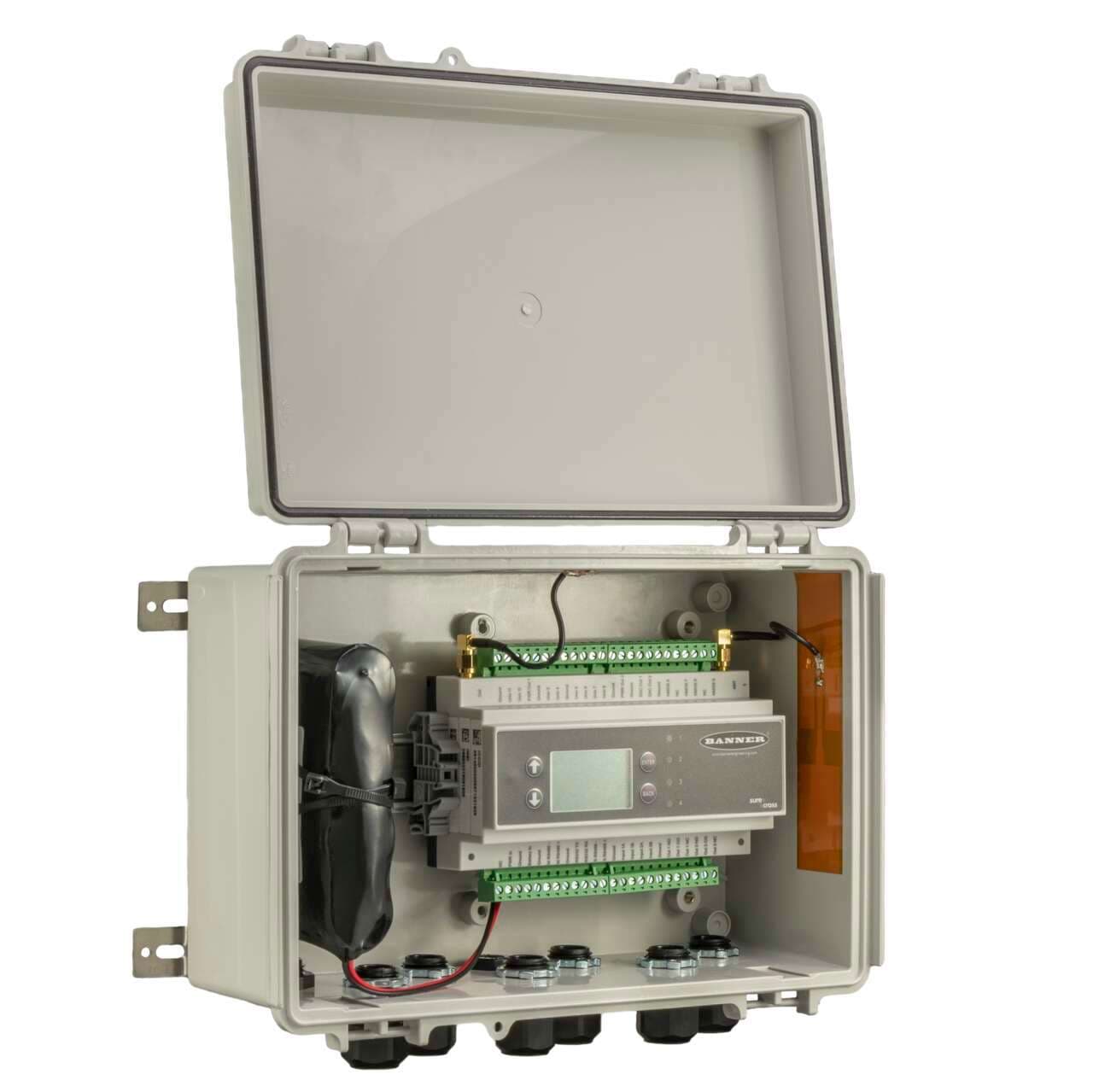

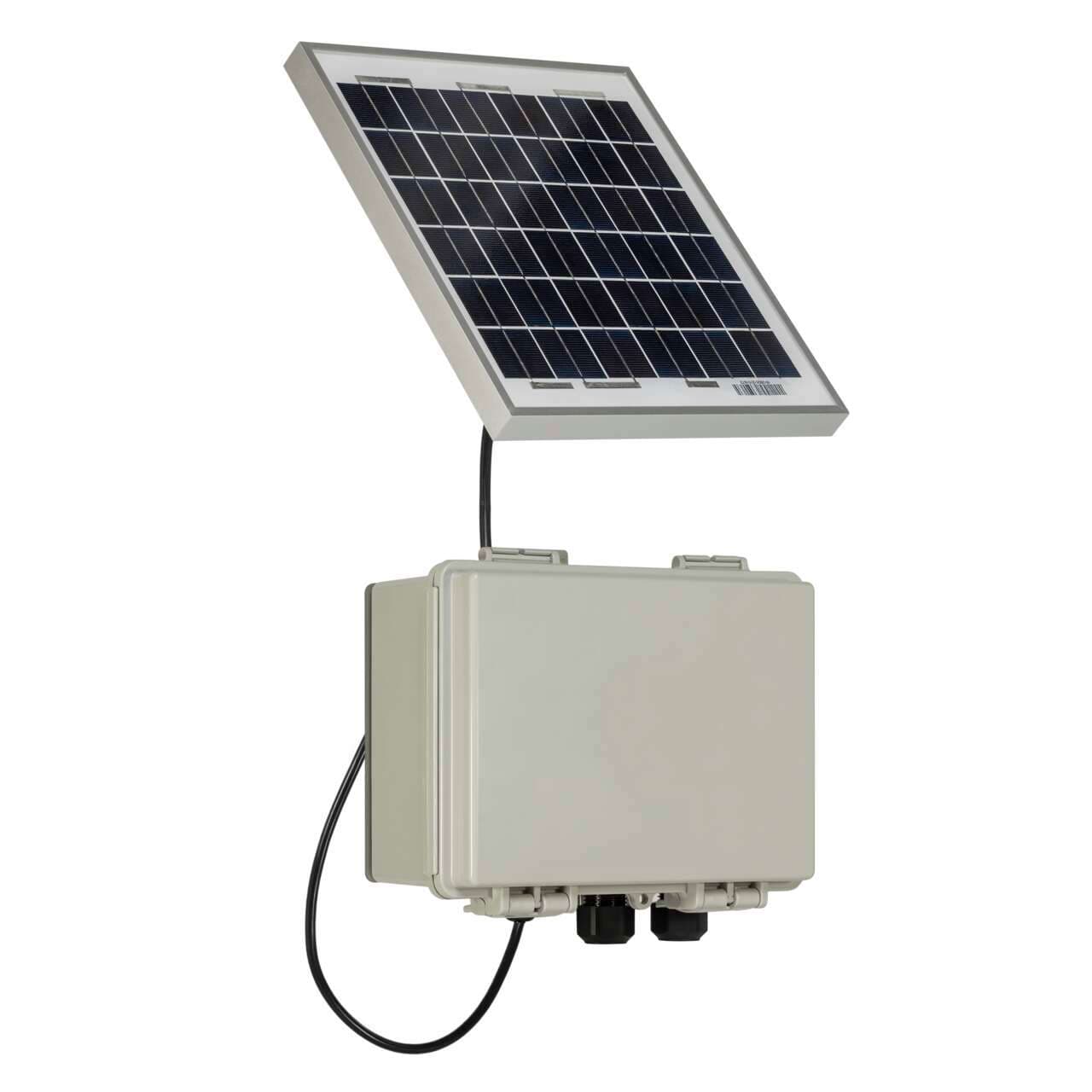

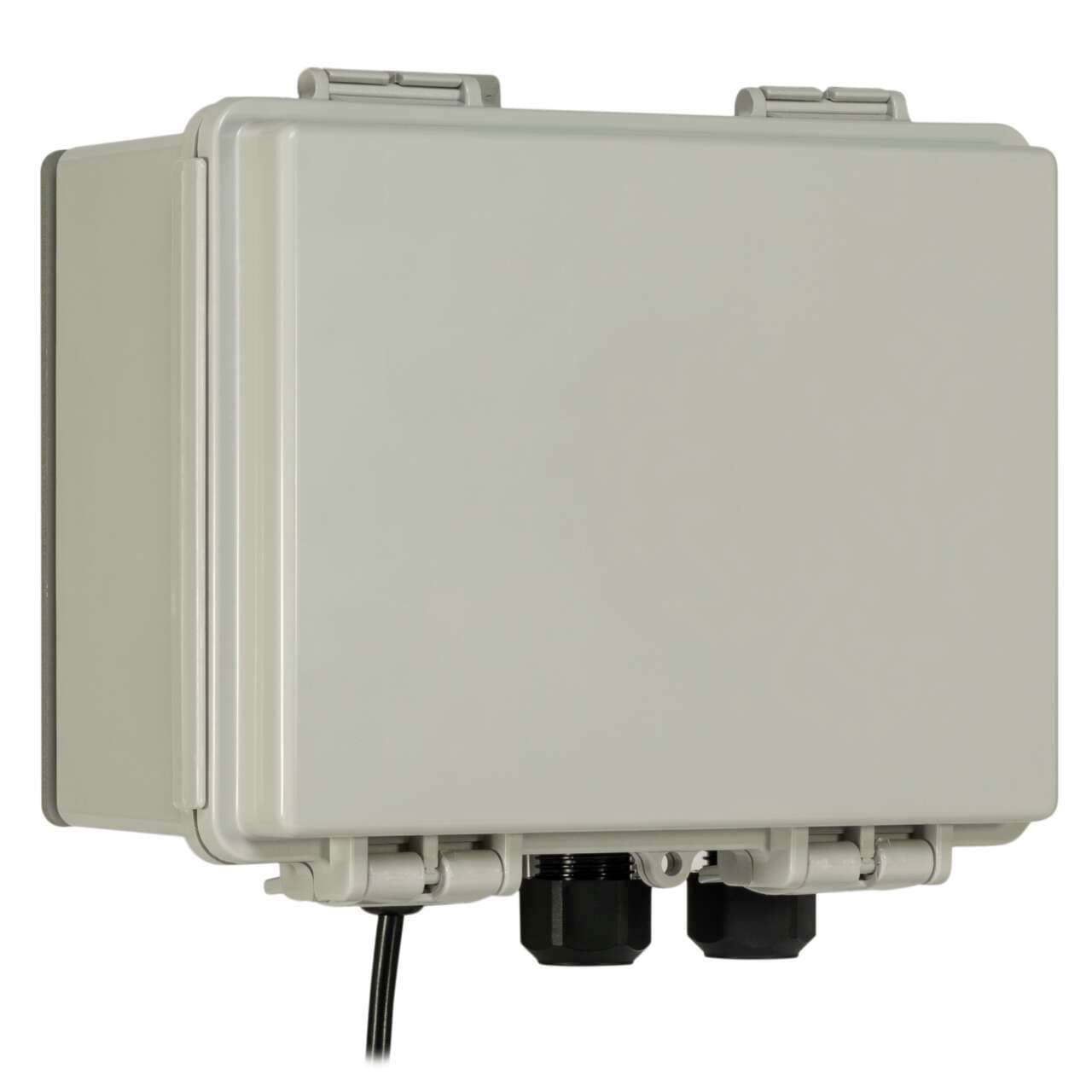

DXM100 A2 Controller; AT&T North America Only; 900 MHz ISM Radio; NEMA Rated Enclosure; 4 Holes with Glands & Vent; 5W Solar Panel with Battery

Product Details

  • Weight
    3687.70296 g
  • Country Of Origin
    US
  • Battery Type/Size
    LiFePO
  • Tree Topology
    No
  • Voltage
    12-30 V dc
  • Min Op. Temperature (°C)
    -20
  • Point-to-Point Topology
    Yes
  • Relative Humidity
    95%
  • Star Topology
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Cord Length (m)
    3
  • Max Op. Temperature (°C)
    60
  • Outside Housing Dimensions (cm)
    21.15 x 16.15 x 10.00
  • Wireless
    Yes
  • RS-485
    Yes
  • Wireless Radio Frequency
    900 MHz
  • Power Supply
    Solar Panel
  • RS-232
    No
  • Modbus/TCP
    No
  • Modbus RTU
    Yes
  • EtherNet/IP
    No
  • Pressure Sensor Input
    Yes
  • Application: Tank Level
    Yes
  • Application: Vibration Sensor Input
    Yes
  • Power
    Battery & DC Supply
  • Ships With Battery
    Yes
  • Feature: Hazardous Area
    No
  • Application: Temperature Input
    Yes
  • Application: Relative Humidity Input
    Yes
  • Primary Housing Material
    PBT

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DEK100-A2R1-A on Powermatic Associates is $1,846.00. Order now.

About the product

Banner Engineering DEK100-A2R1-A is a remote I/O controller designed for surface mounting with an ambient air temperature for operation ranging from -20 to +60 °C. It features 2 analog outputs (0-10Vdc; 32-bit) and 4 digital outputs (12Vdc-30Vdc; NMOS; 1A), alongside 4 digital inputs (12-30Vdc; Sink/Source/Counter) that can also function as 4 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). This part, belonging to the DEK wireless kits sub-range, is equipped with a Modbus controller function and operates on a 900 MHz transmission frequency within the 900MHz ISM band. It offers a degree of protection rated at IP20 NEMA 4X and is housed in a 4 holes (gld. and vent) PBT enclosure with a 5W solar panel and battery backup designed for AT&T. The supply voltage required is 12-30Vdc (12Vdc-24Vdc nom.), and it utilizes an RS-485 Modbus RTU communication protocol.
