Part#:D10BFPGQ

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

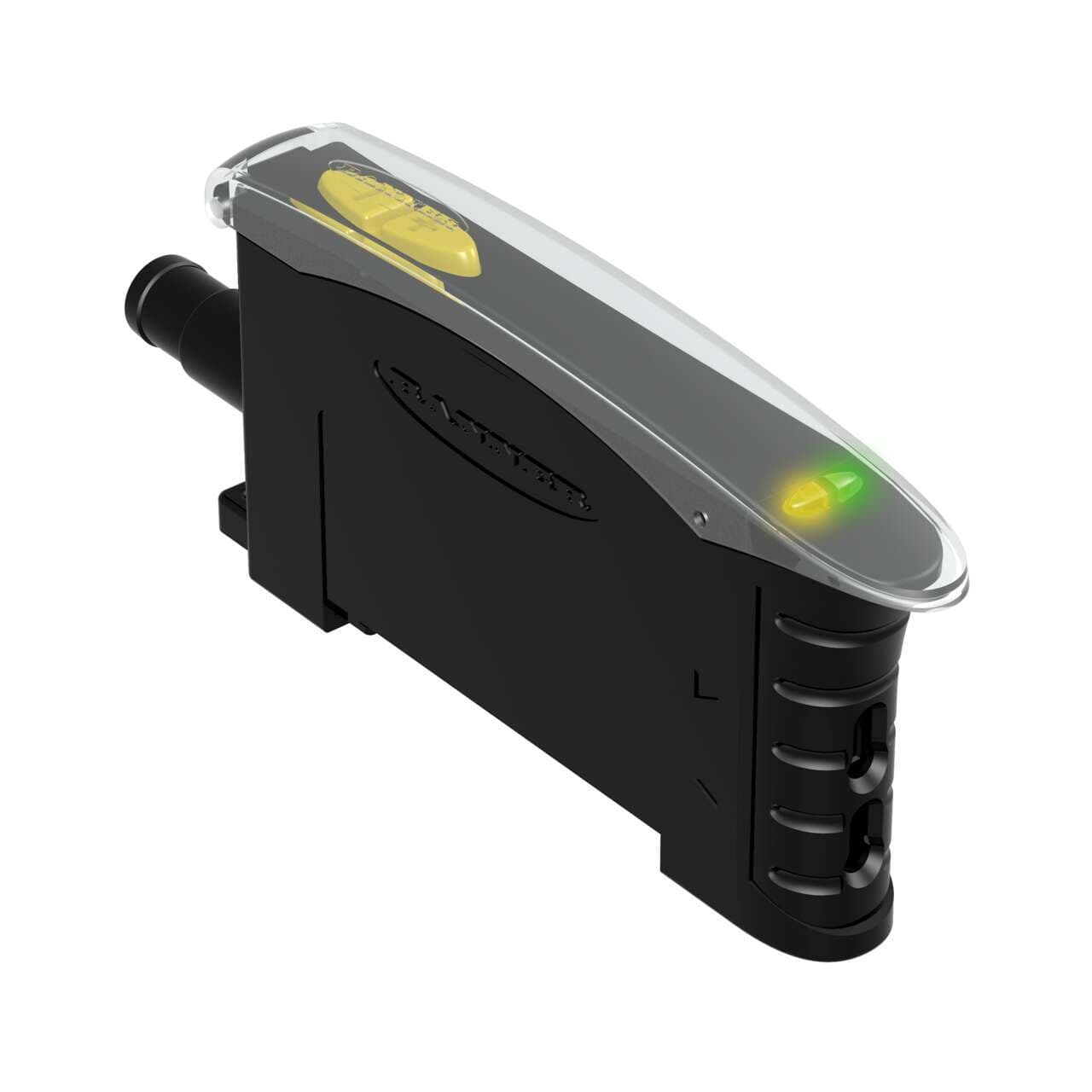

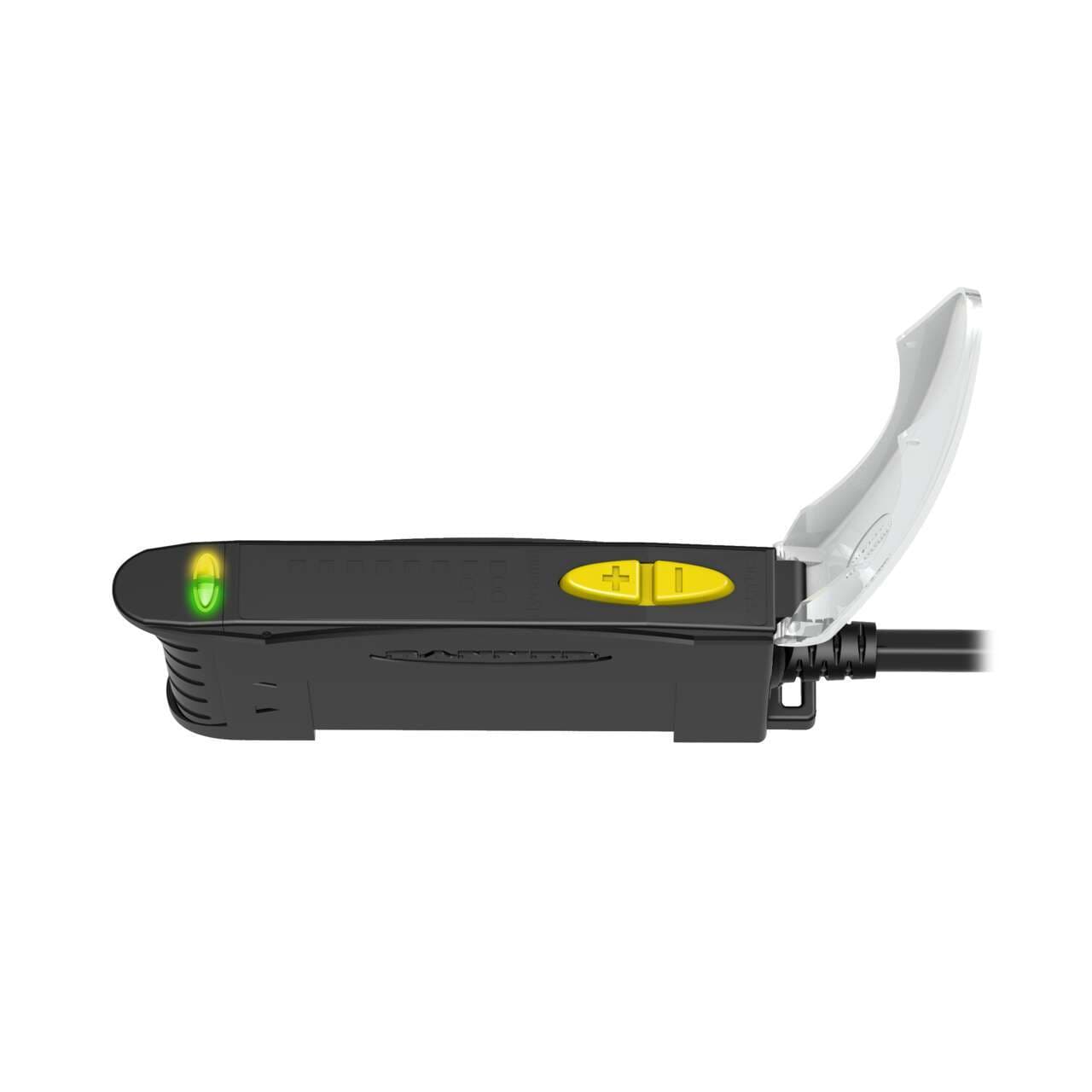

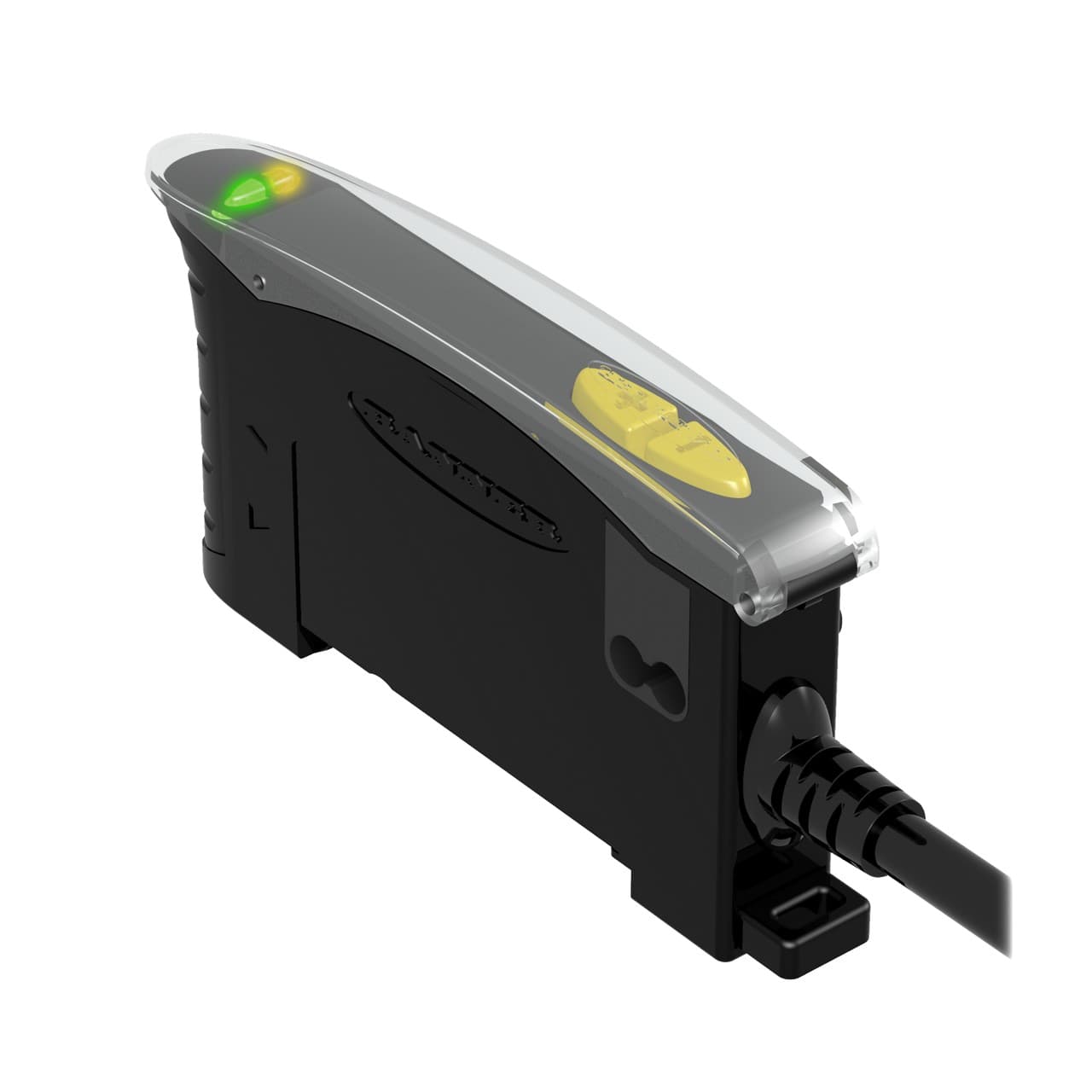

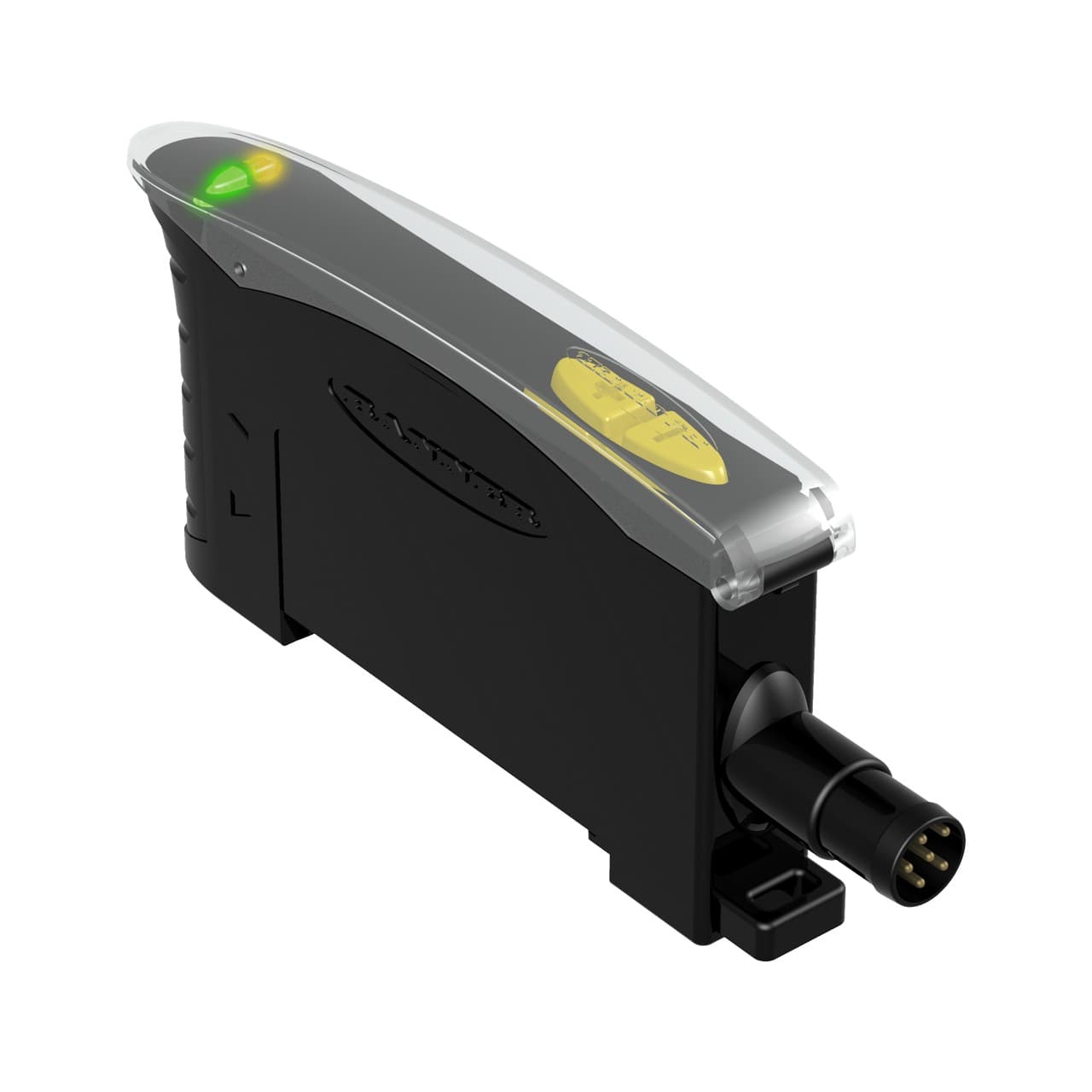

Banner Engineering D10BFPGQ is an amplifier for sensor applications, designed for DIN rail mounting. It features a net width of 11 mm and is constructed with a thermoplastic housing and a polycarbonate (PC) cover. This part operates within an ambient air temperature range of -20 to +55 °C and offers a degree of protection rated at IP50 NEMA 1. It emits visible green light with a wavelength of 525 nm and has a response time of 200ms / 0.2 s. The D10BFPGQ includes 2 x digital outputs (NPN/PNP transistor) and is characterized by its rectangular shape. It belongs to the D10 Expert series and incorporates high-performance fiber optic sensor amplifier functions with a TEACH mode design. The connection is facilitated by a pre-equipped 6-pin Pico-style M8 connector, and it requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.). The net depth and height are 36 mm and 69 mm, respectively.

Product Details

  • IO Link
    No
  • Housing Material
    Thermoplastic
  • Feature: Audible
    No
  • Minimum response time (ms)
    .2
  • Special Feature: Bussable Power
    No
  • Feature: Hazardous Area
    No
  • Feature: Timing (Hold/Delay)
    Yes
  • Indicator Display Type
    Bargraph
  • Delay at Power-up (ms)
    200
  • Power Supply/Supply Voltage
    10-30 V dc
  • Intrinsically Safe
    No
  • Adjustments
    Teach Button
  • Crosstalk Avoidance
    Yes
  • Max Op. Temperature (°C)
    55
  • IP Rating
    IP50
  • NEMA Rating
    NEMA 1
  • Number of Pins
    6
  • Repeatability (µs)
    66 to 100
  • Output Type (Specific)
    Single Discrete
  • Special Feature: Remote Teach
    Yes
  • Max Op. Relative Humidity (%)
    90% @ 55°C
  • Min Op. Temperature (°C)
    -20
  • Output
    Bipolar (NPN & PNP)
  • Connection
    Integral QD
  • Quick Disconnect Type
    M8 (Pico)
  • Power
    DC
  • Primary Housing Material
    Thermoplastic
  • Fiber Type
    Plastic and Glass
  • Input/Output
    Discrete
  • Color LED - Amplifiers
    Green
  • Housing Style
    DIN Rail
  • Primary brand
    Banner Engineering
  • Wavelength
    525 nm
  • Material
    thermoplastic housing Polycarbonate cover
  • Contents
    mounting bracket M3 hardware
  • Sub-range name
    D10 Expert series
  • Light Color
    Visible green
  • Mounting mode
    DIN rail mounting
  • Connection type
    Pre-equipped with 6-pin Pico-style M8 connector
  • Compliant with standard(s)
    cURus CE
  • Display
    LED 8 digits display
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Degree of protection
    IP50 NEMA 1
  • Technical compatibility with
    plastic fiber optic cable
  • Net Height (mm)
    68.1 mm
  • Main function
    Amplifier for sensor
  • Functions
    High-performance fiber optic sensor amplifier green LED (power ON) yellow LED (output state) TEACH mode
  • Digital outputs
    2 x digital outputs (NPN/PNP transistors)
  • Ambient air temperature for operation
    -20...+55 °C
  • Order code / Manufacturer SKU
    72617
  • Net Depth (mm)
    35.9 mm
  • Product series / family name
    Fiber optic amplifiers
  • Shape
    Rectangular
  • Response time
    200ms / 0.2 s
  • Net Width (mm)
    10.5 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
