BA.443SMETA Banner Fiber Optic Sensors
Part#:BA.443SMETA
Alt. Part#:24026
Manufacturer:Banner
Category:Fiber Optic Sensors
Product Lifecycle:Active
Product description
FIBER BA.443SMETA
Product Details
- Weight 80.6486576 g
- Country Of Origin US
- Fiber Sensing End Size - Mounting Area 4.8 mm
- Max Distance: DF-G2 (mm) No Data
- Max Distance: DF-G3 (mm) No Data
- Max Distance: DF-G1 (mm) No Data
- Application: Vacuum Feed Through None
- Max Temp ( °C) 249
- Retractile No
- Measured Max Distance (mm) No Data
- Tariff Fiber Meters (fbm) 128
- Termination Type Glass Fiber Sensors
- Feature: Small Object Detection No
- Application: Liquid Level No
- Feature: Chemical Resistant No
- Integrated Lens No
- Minimum Bend Radius (mm) 25
- Termination Terminated
- Core Diameter (mm) 0.7
- Flex Relief No
- Sensing End Segment 2 Sideview
- Sensing End Segment 1 Ferrule
- Fiber Length (m) 0.914
- Fiber Sensing End Size 4.8 mm
- Sensing Mode (General) Diffuse
- Sensing End Material (Specific) Stainless Steel
- Quantity Included 1
- Fiber Sensing End Tip Sideview
- Fiber Sheathing Material (Jacket) Stainless Steel Monocoil
- Sensing Mode (Detailed) Reflective
- Beam Exit Right Angle
- Housing Style Round
- Fiber Optic Type Glass
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BA.443SMETA on Powermatic Associates is $204.00. Order now.
About the product

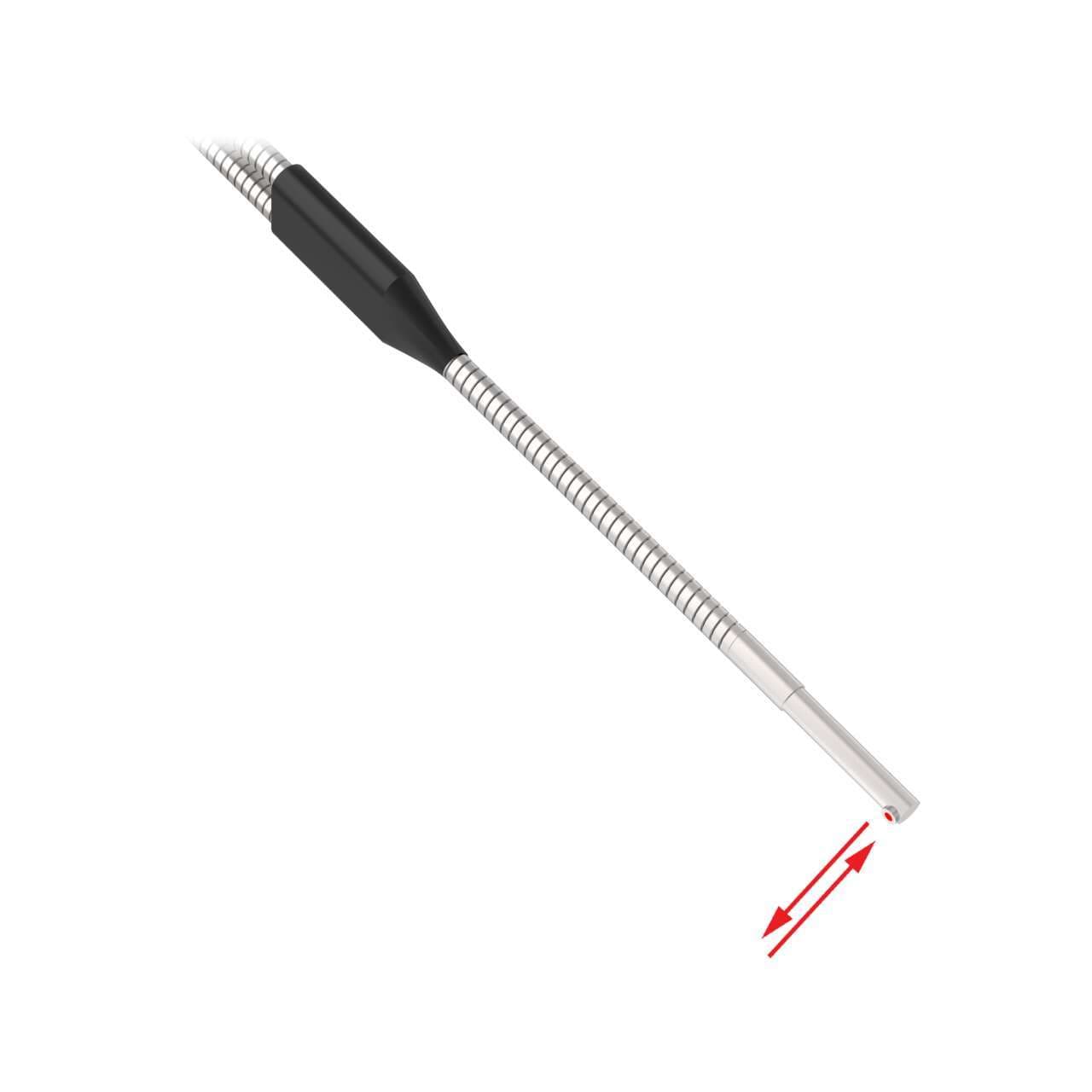

Banner Engineering BA.443SMETA is a fiber sensor belonging to the Glass fiber series, designed with a diffuse-reflective system and bifurcated fiber side with a right-angled sensing approach. It features a stainless steel sensing end, glass fiber, and a stainless steel monocoil construction. The sensor has a 0.7mm fiber core diameter and comes in a cylindrical shape with a smooth end tip. Its length is 3ft or 910mm, and it is capable of operating in ambient air temperatures up to +249°C.
