859-392 WAGO Signal Relays

859-392 on Powermatic Associates
WAGO

Part#:859-392

Manufacturer:WAGO

Category:Signal Relays

Product Lifecycle:Active

Product description

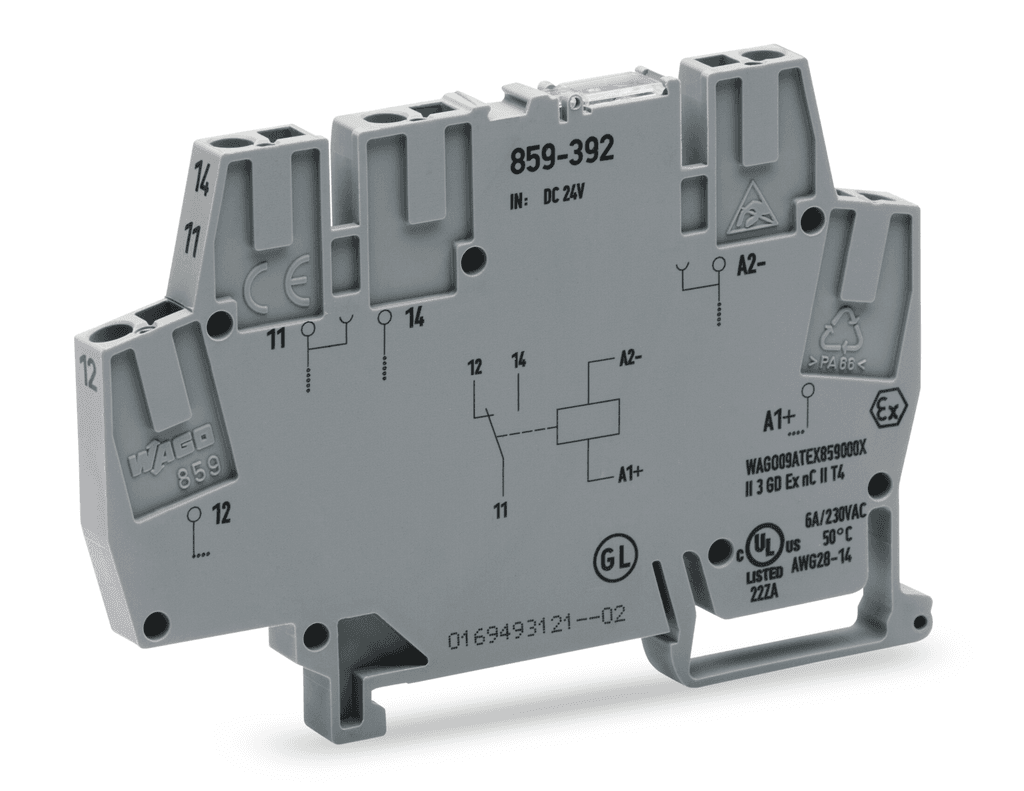

859-392 WAGO - Relay module; Nominal input voltage: 24 VDC; 1 changeover contact; with gold contacts; Railway; Red status indicator; Module width: 6 mm; 2,50 mm²; gray

Product Details

  • Weight
    22.32900587 g
  • Country Of Origin
    Germany
  • HTS Code
    85364900990
  • Width
    0.236 inches, 6 millimeters
  • Weight
    22.099 grams
  • Strip Length
    0.24 inches, 6 millimeters
  • Package Type
    Box
  • Mounting Type
    DIN-35 Rail
  • Height
    3.583 inches, 91 millimeters
  • Country of Origin
    Germany
  • Contact Material
    AgNi + Au
  • Conductor Size
    14 american wire gauge, 2.5 millimeters
  • At Rated Voltage
    300 volts
  • Color
    Gray

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 859-392 on Powermatic Associates is $39.06. Order now.

About the product

Wago 859-392 is a fixed-type relay module designed for railway applications with electromechanical design features. It utilizes CAGE-CLAMP spring connections for secure and reliable connectivity. This module supports a rated current of 50mA at 30Vdc (DC-13) for maximum recommended current to avoid evaporating the Gold flash and 5A for continuous operation. It includes Normally Open (NO) auxiliary contacts indicated by a red LED. The rated power is specified as 1C/O / SPDT (Single Pole Double Throw) contact. It operates efficiently within an ambient air temperature range of -40°C to +70°C for both operation and storage. The control voltage (DC) is rated at 16.8-30Vdc (24Vdc nom.), with a rated voltage (AC) of 250Vac max. and a rated impulse voltage (Uimp) of 4kV. Its mounting mode is single-pole / 1-pole (1P) on a DIN-35 rail, with connection capacity dimensions of H91mm x W6mm x D56mm and a net width of 6mm. The relay's contacts are made from hard Gold-plated Silver-Nickel (AgNi + Au) to ensure durability and reliable performance. The operating and release times are 15ms and 25ms, respectively, with a rated operating voltage (Ue) of 250V. It is designed for a lifespan of 50,000 operations at rated voltage (AC) and can handle up to 5,000,000 operations for power dissipation/losses. The module is compatible with environments having 5-95% relative humidity (RH), with no condensation permissible.

Manufacturer warranty

859-392 WAGO

$39.06

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$39.06

$39.06 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

WAGO

Powermatic Associates is an authorized WAGO distributor, proud to offer a diverse range of high-quality and innovative industrial automation solutions. As a leading manufacturer, WAGO excels in designing and producing cutting-edge electrical interconnection, automation, and interface electronics technologies. Powermatic Associates leverages WAGO's expertise to provide customers with top-of-the-lin...
