857-718 WAGO Signal Relays

857-718 on Powermatic Associates
WAGO

Part#:857-718

Manufacturer:WAGO

Category:Signal Relays

Product Lifecycle:Active

Product description

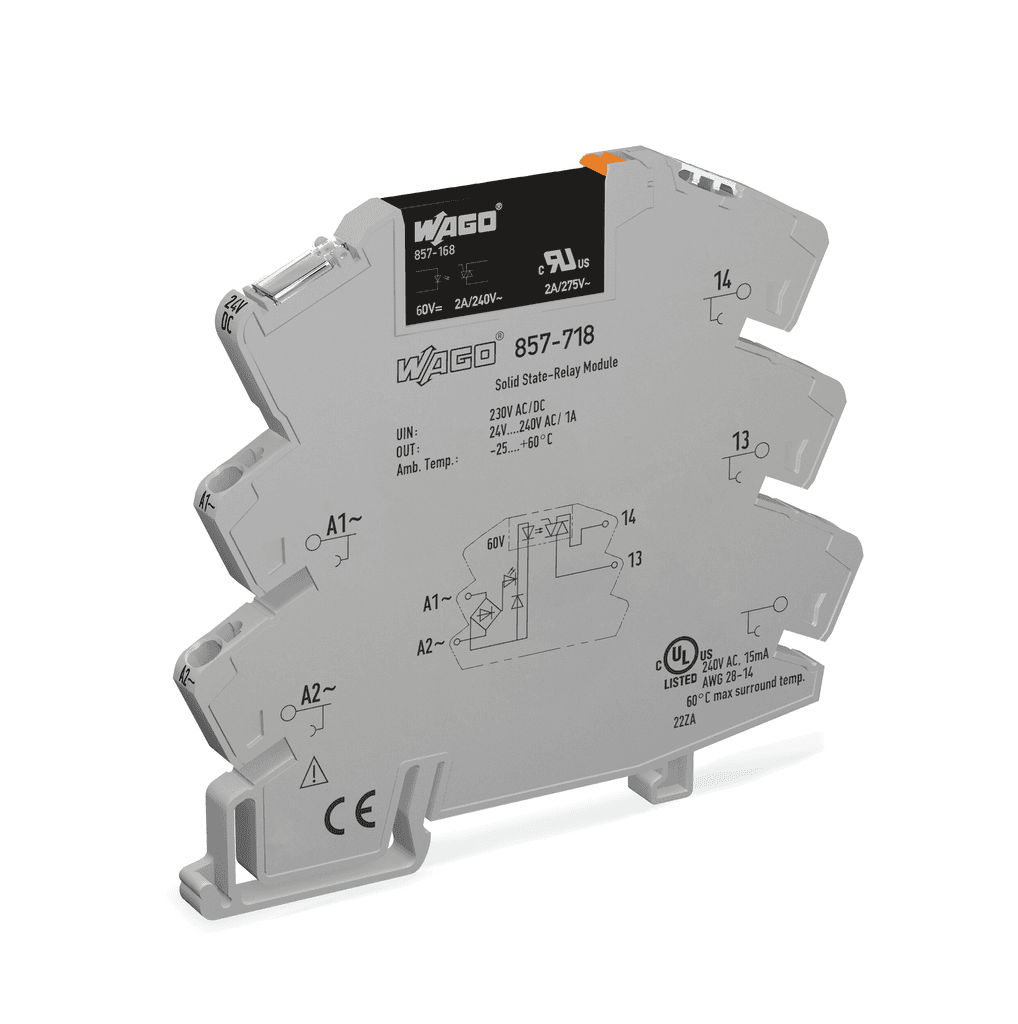

857-718 WAGO - Solid-state relay module; Nominal input voltage: 230 V AC/DC; Output voltage range: 24 … 240 VAC; Limiting continuous current: 2 A; 2-wire connection; zero-cross switching; Yellow status indicator; Module width: 6 mm; gray

Product Details

  • Weight
    29.17700767 g
  • Country Of Origin
    Germany
  • HTS Code
    85365005000
  • Width
    0.236 inches, 6 millimeters
  • Weight
    29.177 grams
  • Strip Length
    0.39 inches, 10 millimeters
  • Package Type
    Box
  • Mounting Type
    DIN-35 Rail
  • Height
    3.701 inches, 94 millimeters
  • Country of Origin
    Germany
  • At Rated Voltage
    300 volts
  • Conductor Size
    14 american wire gauge, 2.5 millimeters
  • Color
    Gray

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 857-718 on Powermatic Associates is $58.04. Order now.

About the product

Wago 857-718 is a Solid State Relay (SSR) designed for plug-in input with push-in CAGE CLAMP spring connections. It features a pre-assembled socket base, a yellow LED indicator, and supports a 2-wire connection with zero-cross switching. This SSR is rated for a continuous current of 2A and operates within a supply voltage range of 200-253Vdc (230Vdc nominal) for control, with an output rated impulse voltage of 24Vac-240Vac (230Vac nominal). It is designed for single-pole / single-phase / 1-pole (1P) applications and offers a response time of 10ms for both switching ON and OFF. The unit is compatible with a DIN-35 rail for mounting, has dimensions of H94mm x W6mm x D81mm, and is designed to operate in ambient air temperatures ranging from -20°C to +60°C, with storage temperatures from -40°C to +70°C. The SSR is protected to IP20 standards and is suitable for environments with 5-85% relative humidity, without condensation.

Manufacturer warranty

857-718 WAGO

$58.04

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$58.04

$58.04 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
