788-906 WAGO Signal Relays

788-906 on Powermatic Associates
WAGO

Part#:788-906

Manufacturer:WAGO

Category:Signal Relays

Product Lifecycle:Active

Product description

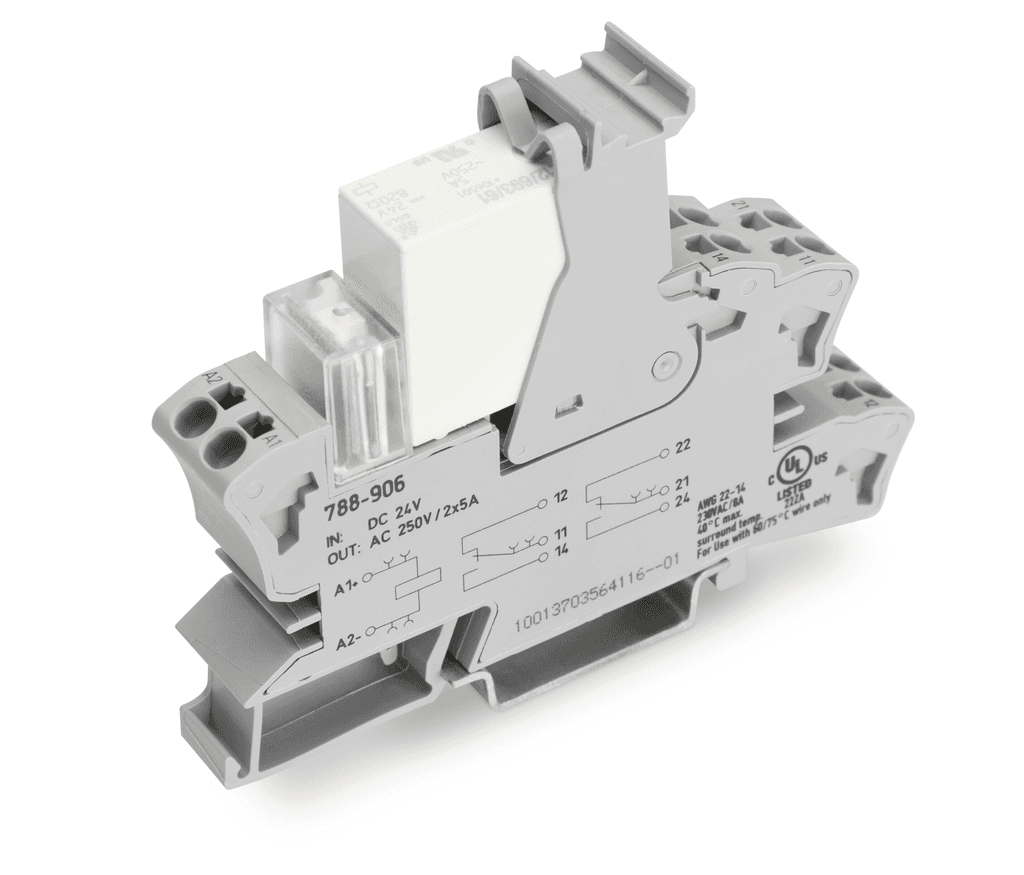

788-906 WAGO - Relay module with driven contacts; Nominal input voltage: 24 VDC; 2 changeover contacts; Limiting continuous current: 0.3 A; Green status indicator; Module width: 15 mm

Product Details

  • Weight
    50.00001315 g
  • Country Of Origin
    Germany
  • HTS Code
    85364900990
  • Weight
    50.000 grams
  • Width
    0.591 inches, 15 millimeters
  • Mounting Type
    DIN-35 Rail
  • Strip Length
    0.39 inches, 10 millimeters
  • Country of Origin
    Germany
  • Height
    3.386 inches, 86 millimeters
  • Contact Material
    AgNi + Au
  • Package Type
    Box
  • Conductor Size
    14 american wire gauge, 2.5 millimeters
  • At Rated Voltage
    250 volts

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 788-906 on Powermatic Associates is $50.32. Order now.

About the product

Wago 788-906 is a plug-in relay assembly featuring push-in CAGE CLAMP spring connections for efficient setup. It operates with a rated current of 50mA at 30Vdc for DC-13 applications, with a maximum recommended current of 0.3A to prevent damage to the Gold flash. This relay includes Normally Open (NO) auxiliary contacts, a socket base, and a green LED indicator within its electromechanical design. It supports a minimum switching load of 0.1V / 1mA / 1mW and offers a rated power of 2C/O / DPDT (Double Pole Double Throw) contact. The relay is designed to function within an ambient air temperature range of -40°C to +70°C for both operation and storage. It has a rated impulse voltage of 20.4-26.4Vdc (24Vdc nominal) and is capable of handling a primary current with switching times of 15ms for contacts closing and 12ms for contacts opening. The rated operating voltage (Ue) is 250V, and it is designed for over 200,000 operations phase-to-phase, with a power dissipation/losses expectancy of 50,000,000 operations. Its contacts are made from hard Gold-plated Silver-Nickel (AgNi + Au) for durability. The relay's dimensions are H86mm x W15mm x D64mm, fitting a 15mm width space on a DIN-35 rail for mounting, and it is protected by an IP20 enclosure.

This item can ship within 0 day!

Manufacturer warranty

788-906 WAGO

$50.32

Your price can be lower.
Log in or Create account to check your discount

Stock:

0

Select Qty:

$50.32

$50.32 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

WAGO

Powermatic Associates is an authorized WAGO distributor, proud to offer a diverse range of high-quality and innovative industrial automation solutions. As a leading manufacturer, WAGO excels in designing and producing cutting-edge electrical interconnection, automation, and interface electronics technologies. Powermatic Associates leverages WAGO's expertise to provide customers with top-of-the-lin...
