762-3000 WAGO PLC & I/O System Accessories

Name: 762-3000
Brand: WAGO

Part#:762-3000

Manufacturer:WAGO

Category:PLC & I/O System Accessories

Product Lifecycle:Active

Get a quick Quote!

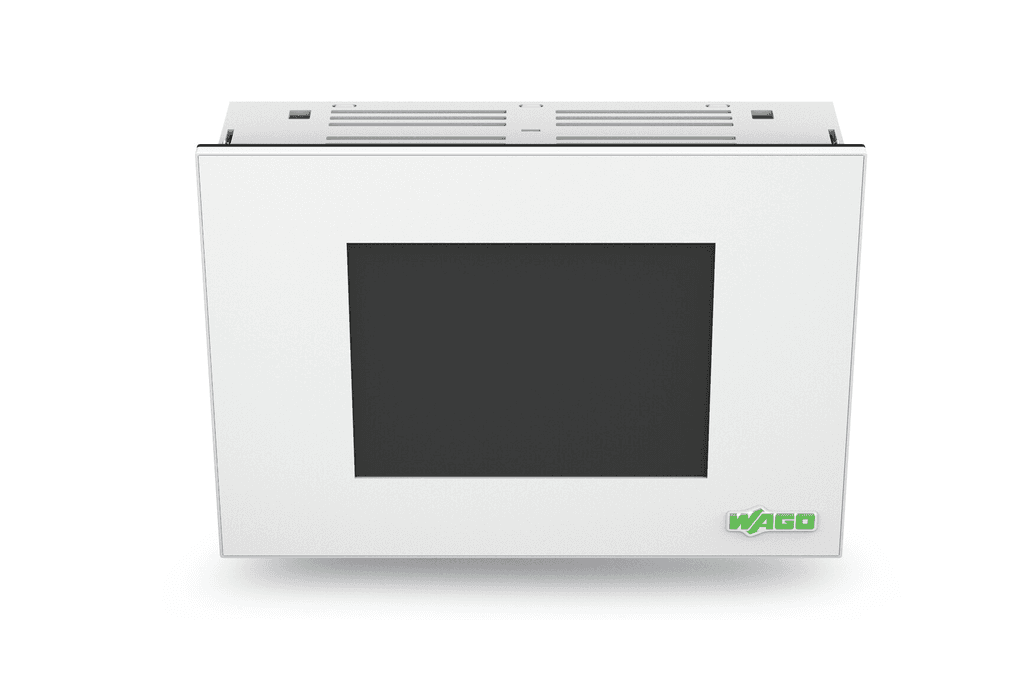

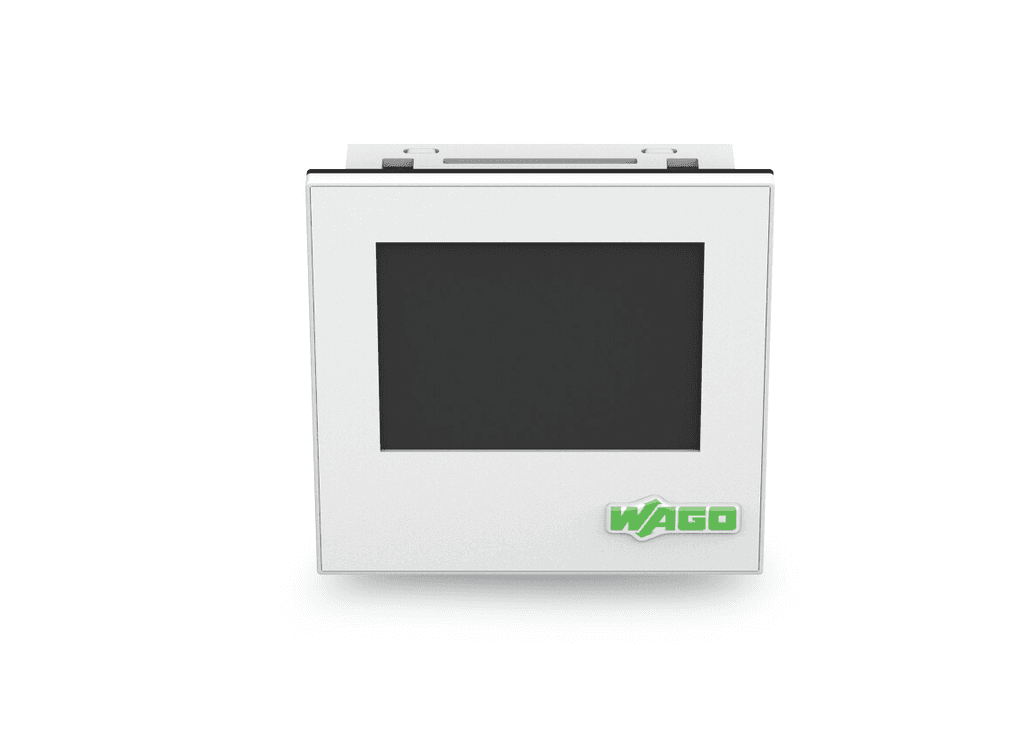

762-3000 WAGO - Web Panel; 4.3" (10.9 cm); 480 x 272 pixels; 2 x USB, 2 x ETHERNET

About the manufacturer: WAGO is one of the manufacturers that offers PLC & I/O System Accessories that you can order at Powermatic Associates site. WAGO is the global leader in spring clamp technology for electrical connections and ranks among the top suppliers of components for industrial and building automation. With 28 companies and 9 production facilities employing around 9,000 people worldwide, we ensure expert advice and close customer relationships.

Check out the 762-3000 WAGO price in the box on the right side or send a quick quote.

Product Details

Weight
728.0001915 g
Country Of Origin
Germany
HTS Code
84714100000
Width
155 millimeters, 6.102 inches
Weight
728.000 grams
Package Type
Box
Mounting Type

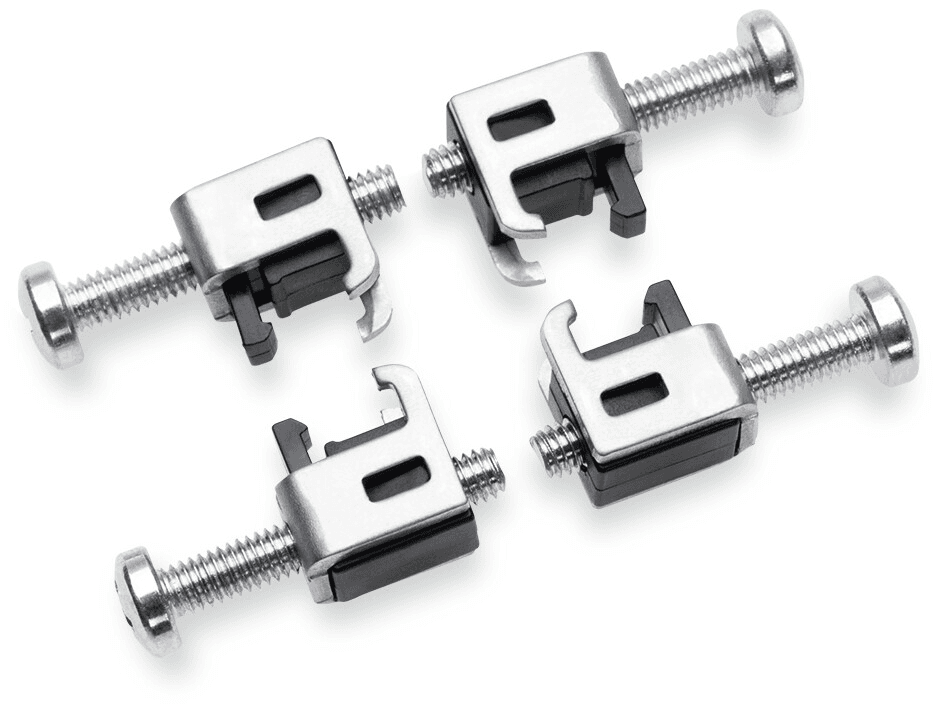

Clamping Elements, VESA Mount
Height
135 millimeters, 5.315 inches
Housing Material
Anodized Aluminum
Depth
2.283 inches, 58 millimeters
Country of Origin
Germany

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

762-3000 Description

Wago 762-3000 is an HMI / Display unit designed with a touchscreen panel that supports various protocols and functions including DHCP, DNS, FTP, FTPS, HTTP, HTTPS, and SSH. It operates on a supply voltage of 18-30Vdc with a nominal 24Vdc and features a PIO1 hardware configuration for web panel applications. The unit is equipped with 2 x RJ45 connectors for fieldbus connectivity and 2 x USB type-A host ports. It does not operate on AC supply voltage and is designed to function within an ambient air temperature range of 0°C to +55°C for operation and -20°C to +80°C for storage. The device offers an IP65 degree of protection and communicates via Ethernet. It has a flush and VESA mountable design, with dimensions of H135mm x W155mm x D58mm, and is housed in an anodized aluminum casing. The unit includes 512MB of RAM and 1024MB of internal flash memory, supports the Linux operating system, and is powered by a Cortex A8 processor. It also features a microSD and SDHC card slot supporting up to 32GB for additional storage.

Manufacturer warranty

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Relevant products

762-4304/8000-002

Verified stock: 4

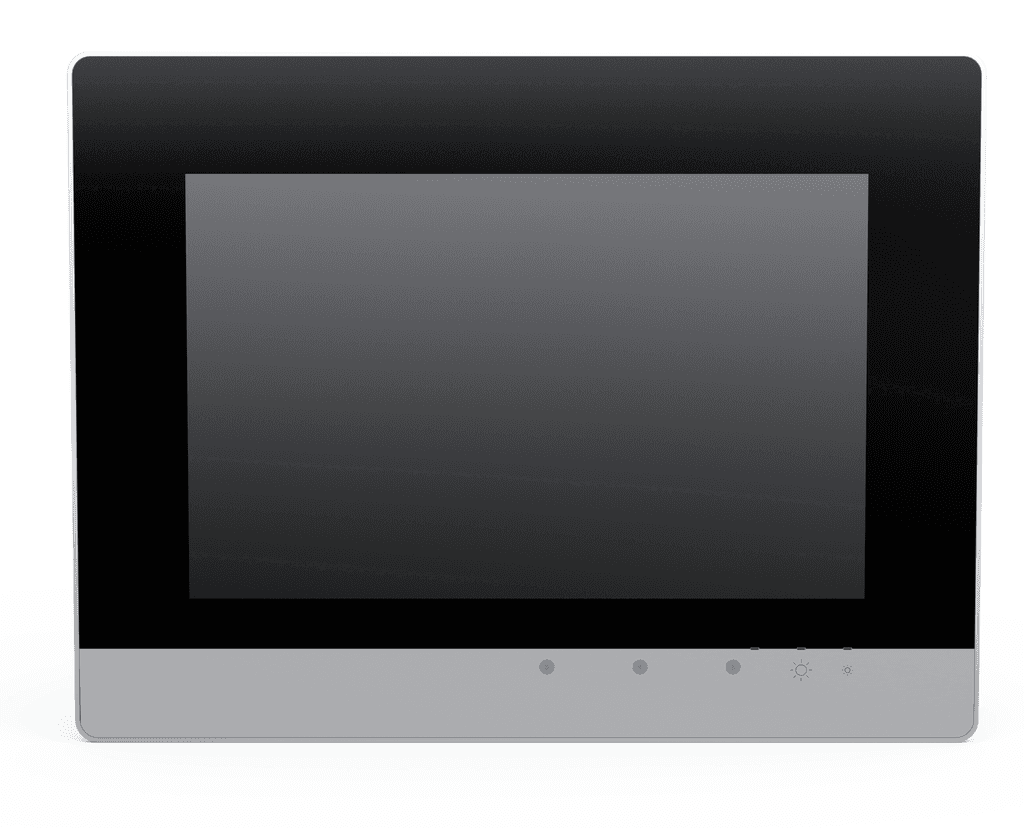

762-4304/8000-002 WAGO - Standard Line; 10.1" (25.7 cm); 1280 x 800 pixels; 2 x ETHERNET, 2 x USB, CAN, DI/DO, RS-232/485, Audio; Control Panel
