750-672 WAGO Programmable Logic Controllers

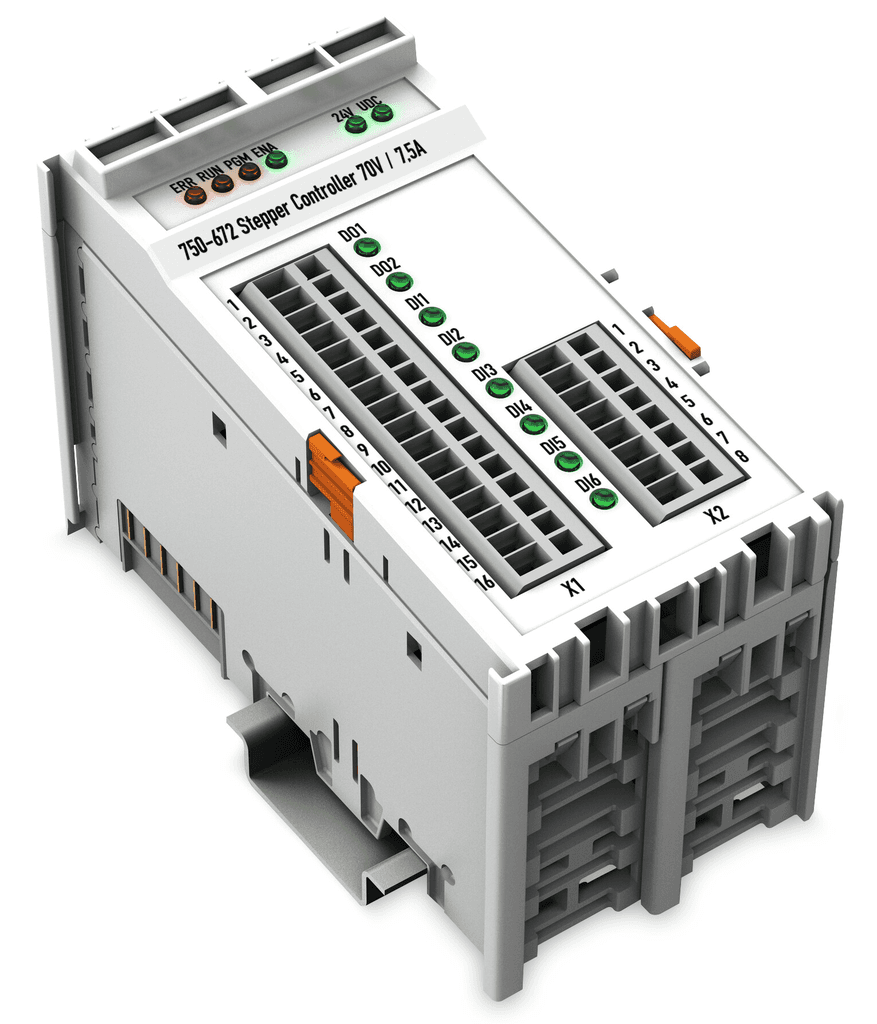

Wago 750-672 is a stepper motor controller designed for precise control of stepper motors. It operates with a supply voltage of 5Vdc provided by the system and features push-in spring cage-clamp connections for easy installation. The controller is designed to output 55Vdc to the motor and operates within an ambient air temperature range of -25°C to +55°C for operation and -25°C to +85°C for storage. It supports a control voltage (DC) and offers IP20 protection. The device uses a communication protocol with a rated insulation voltage (Ui) of 12 mm and includes short-circuit and wire-break protection features. It is designed for mounting on a DIN-35 rail and measures H100mm x W48mm x D69.8mm. The housing is made from Polycarbonate (PC) / Polyamide (PA) 6.6, ensuring durability. It features 2 x digital inputs (24Vdc transistor) with voltage ranges of -3...+5Vdc (OFF) / 15-30Vdc (ON) and outputs including 1 x digital output (2-Phase / 7.5A / 7812Hz) and 2 x digital outputs (24Vdc / 5Hz). The controller is shock resistant according to EN 60068-2-27 at --15g and operates with a primary voltage of 70mA (5Vdc system supply) in environments with up to 95% relative humidity (RH), non-condensing.
