745-383 WAGO Industrial Automation Components

745-383 on Powermatic Associates
WAGO

Part#:745-383

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

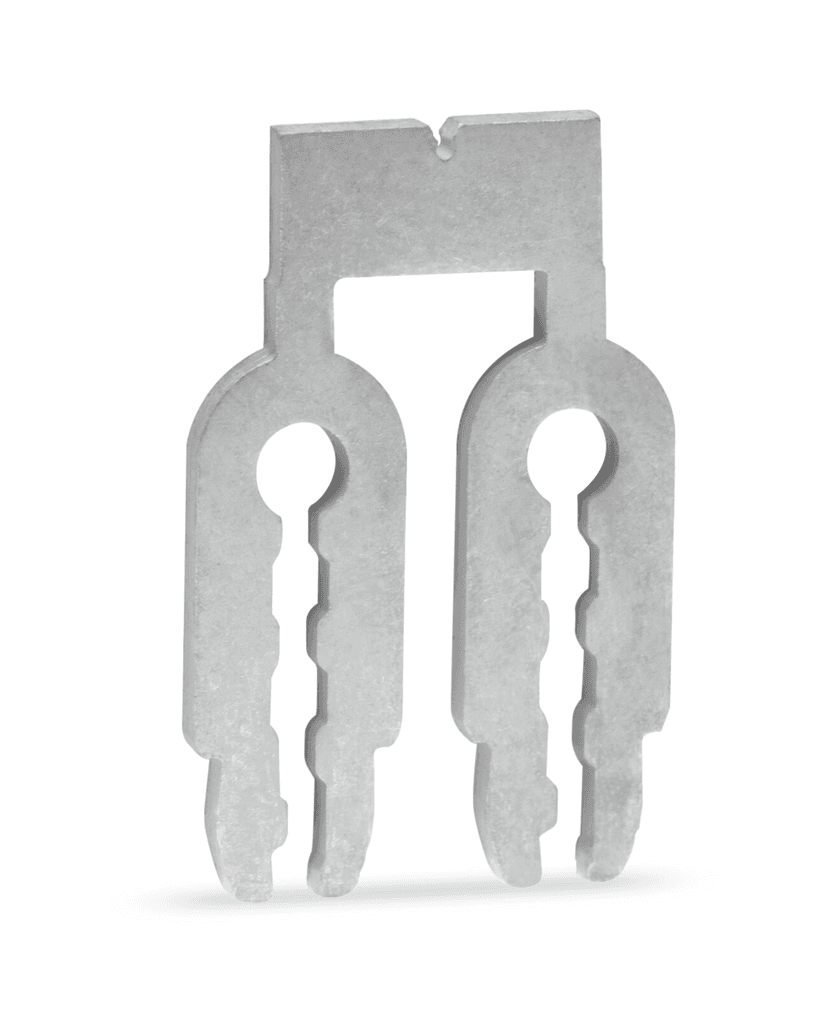

745-383 WAGO - Jumper; 3-way; silver-colored

Product Details

  • Weight
    1.680000442 g
  • Country Of Origin
    Switzerland
  • HTS Code
    85366990990
  • Weight
    2.608 grams
  • Package Type
    Box
  • Contact Type
    Tin
  • Current
    41 amperes
  • Contact Material
    Copper Alloy
  • Color
    Silver

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 745-383 on Powermatic Associates is $0.56. Order now.

About the product

WAGO 745-383 is a printed circuit connector with a rated current of 41A, according to IEC/EN standards. It features a pin spacing of 7.5mm or 0.295 inches and a jumper assignment of 1-2-3. This part is specifically suitable for use with the 745 Series (6mm2) and 2706 Series. The connector is silver-colored, with the contact material made from a copper alloy and plated with tin. It weighs 2.6g. In terms of commercial data, it falls under Product Group 4 (Printed Circuit Connectors) and is classified under eClass 10.0 and 9.0 as 27-14-11-40 and 27-44-04-92, respectively, with an ETIM classification of EC000489 for both versions 8.0 and 7.0. The unit is packaged in boxes with a standard packing unit (SPU) of 250 pieces and a smaller packing unit (SPU) of 50 pieces. The country of origin is CH (Switzerland), and it has a GTIN of 4017332608411 with a customs tariff number of 85366990990. This product is RoHS compliant without any exemptions.
