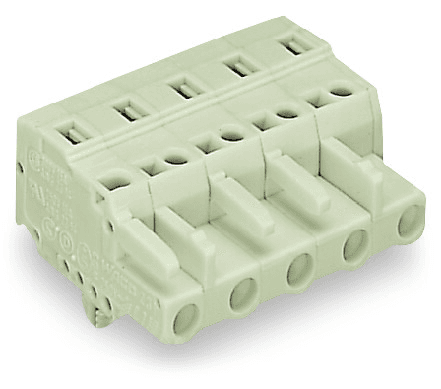

721-212/008-000 WAGO Electrical Connector Accessories

WAGO 721-212/008-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 500V (III/3), 630V (III/2), and 1000V (II/2), and a rated impulse voltage of 6kV across these categories. The rated current is 16A. For UL standards, it has a rated voltage of 300V for Use Group B and D, with rated currents of 15A and 10A respectively, and under UL 1977, a rated voltage of 600V and a rated current of 15A. CSA approvals mirror the UL ratings for Use Groups B and D. This connector features 12 connection points, supports a single connection type across one level, utilizing CAGE CLAMP technology with various actuation types and directions. It accommodates solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), with specific sizes for ferruled conductors. The physical dimensions include a pin spacing of 7.5mm, width of 89mm, height of 18.8mm, and depth of 26.45mm. It offers variable coding, snap-in foot/panel mounting, and anti-rotation protection, with a female connector/socket type for pluggable connections, without mismating protection. The light gray connector is made from Polyamide (PA66) with a flammability class of UL94 V0, and chrome-nickel spring steel for the clamping spring. It operates within a temperature range of -60 to +85°C and weighs 25.2g. This product is RoHS compliant, packaged in boxes of 25 pieces, and manufactured in Germany with a GTIN of 4044918382212.
