286-826 WAGO Industrial Automation Components

286-826 on Powermatic Associates
WAGO

Part#:286-826

Manufacturer:WAGO

Product Lifecycle:Active

Get a quick Quote!

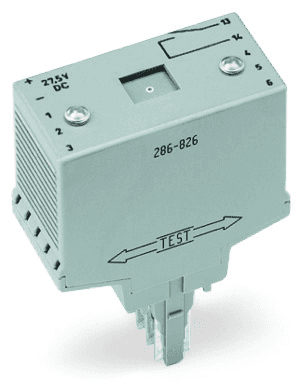

AND gate module with 6 inputs; light gray

About the manufacturer: WAGO is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. WAGO is the global leader in spring clamp technology for electrical connections and ranks among the top suppliers of components for industrial and building automation. With 28 companies and 9 production facilities employing around 9,000 people worldwide, we ensure expert advice and close customer relationships.

Check out the 286-826 WAGO price in the box on the right side or send a quick quote.

Product Details

  • Weight
    34.00000894 g
  • Country Of Origin
    Germany
  • HTS Code
    85369010000
  • Width
    0.984 inches, 25 millimeters
  • Weight
    34.000 grams
  • Package Type
    Box
  • Operating Voltage
    27.5 volts
  • Mounting Type
    Pluggable Module For Receptacle Terminal Blocks
  • Depth
    2.047 inches, 52 millimeters
  • Country of Origin
    Germany
  • Color
    Gray
  • At Rated Voltage
    250 volts

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

286-826 Description

Wago 286-826 is a spare part designed as an AND gate module with 6 inputs. It operates on a supply voltage range of 16.8-26.4Vdc, with a nominal 24Vdc, and a rated voltage of 24-27.5Vdc. This module does not have a specified supply voltage for AC and is characterized by an ambient air temperature for operation ranging from -25°C to +40°C, and the same range is applicable for its storage temperature. It is a plug-in type module with a rated active power in kW not specified. The color of the module is light gray, and it has a cross-section width of 25mm. Its thermal resistance is noted at 34.6mA at 24Vdc, with efficiency at nominal load not specified. The module is designed to operate within a cable category that can withstand 5-95% relative humidity, with no condensation permissible. The number of available modules is not specified.
