2606-1102/020-006 WAGO Industrial Automation Components

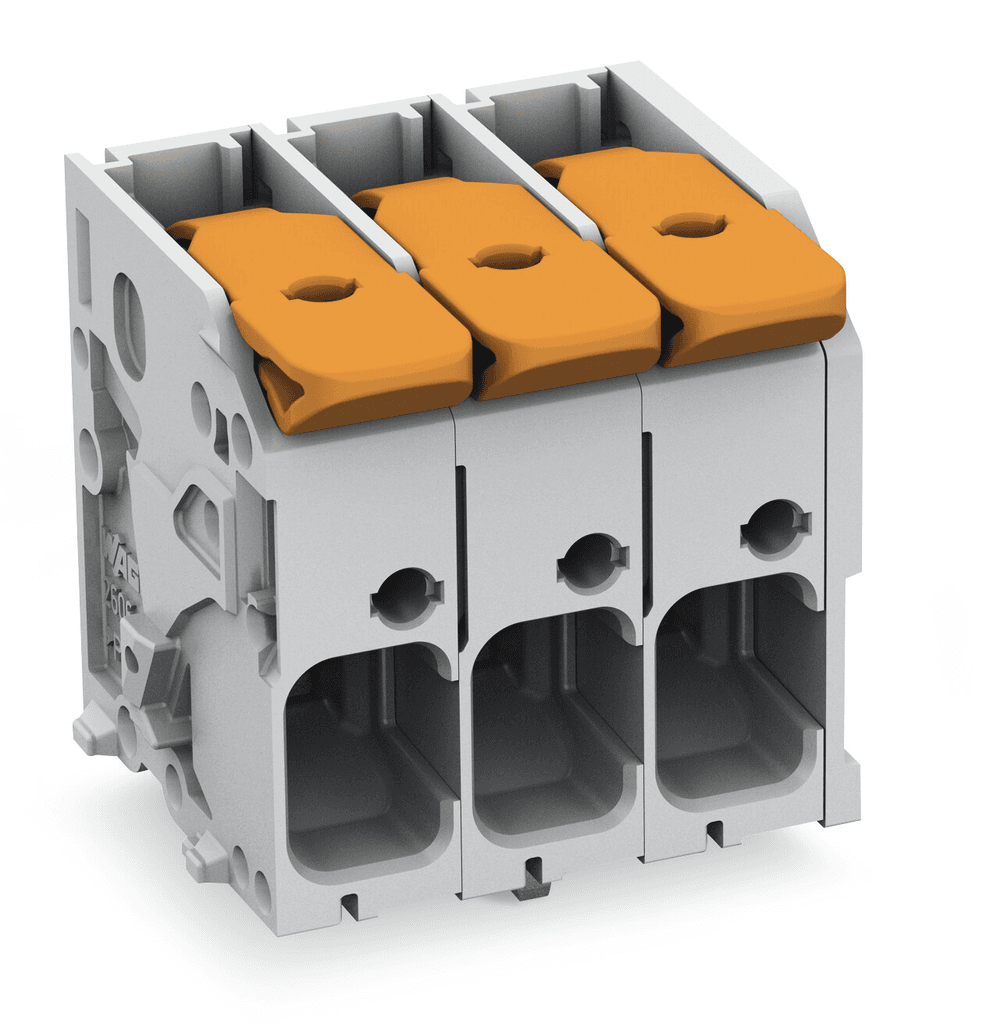

WAGO 2606-1102/020-006 is an automation part with a short circuit breaking rating as per IEC/EN 60664-1, featuring nominal voltages of 800V (III/3) and 1000V (II/2, III/2), rated impulse voltages of 8kV (III/2, III/3, II/2), and a rated current of 41A according to IEC/EN standards. It has UL 1059 approval with rated voltages of 600V and rated currents of 31A for both Use Group B and C, alongside CSA approval for the same voltage and current ratings in Use Groups B and C. The part includes 2 connection points, supports a total of 2 potentials, and offers 1 connection type across 1 level with a Push-in CAGE CLAMP connection technology, lever actuation type, and accommodates solid and fine-stranded conductors ranging from 0.2 to 10mm2 (24 to 8 AWG), including various ferrule types. It has a strip length of 11 to 13mm, a pole number of 2, and a conductor connection direction to PCB of 0°. Physical specifications include a pin spacing of 7.5mm, width of 17.85mm, height of 28mm, depth of 24.3mm, with a solder pin length of 4mm and dimensions of 1.5 x 1.2mm. The drilled hole diameter with tolerance is specified as 2 (+0.1)mm. The terminal strip supports THT PCB contact with staggered solder pin arrangement and one solder pin per potential. It is made from Polyamide (PA66) in blue, with a flammability class of V0, chrome-nickel spring steel (CrNi) for the clamping spring, electrolytic copper (ECu) for contact material, and tin plating. The actuator color is orange, and it weighs 8.1g. It operates within a temperature range of -60 to +105°C, with a processing temperature range of -35 to +60°C. The product is RoHS compliant, packaged in boxes of 120 pieces, originates from PL, and has a GTIN of 4066966103939 with a customs tariff number of 85369010000.
