231-938/001-000 WAGO Industrial Automation Components

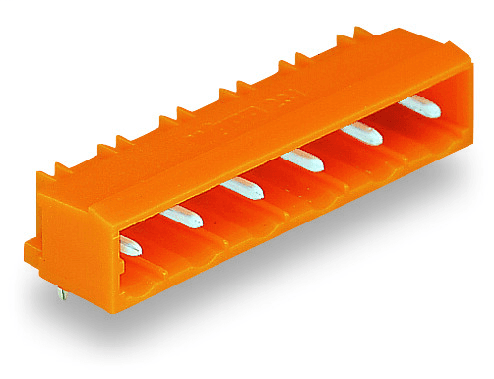

WAGO 231-938/001-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed for PCB integration with a total of 8 potentials and a single connection type across one level. It features a male connector/plug type for PCB connection, with a pole number of 8 and a pin spacing of 7.62mm. The dimensions include a width of 61.54mm, a height of 12.2mm, and a depth of 12mm, with solder pin length at 3.8mm and dimensions of 1 x 1mm. The drilled hole diameter with tolerance is specified at 1.4 (+0.1)mm. This part offers variable coding, anti-rotation protection, and is made from orange Polyamide (PA66) with a flammability class of UL94 V0. The contact material is Electrolytic Copper (ECu) with tin plating. It operates within a temperature range of -60 to +100°C and has a processing temperature range of -35 to +60°C. The product is RoHS compliant, with a packaging unit of 50 pieces per box, originating from Poland. Its electrical specifications include a nominal voltage of up to 1000V, rated impulse voltage of 6kV, and a rated current of 12A according to IEC/EN standards, with UL and CSA ratings also provided.
