231-570/001-000 WAGO Electrical Connector Accessories

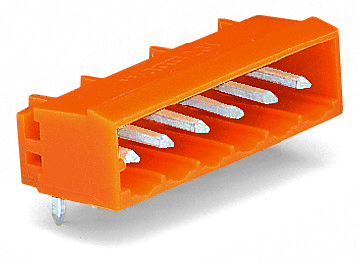

WAGO 231-570/001-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as specified in DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 250V (III/3), 320V (III/2), and 630V (II/2), all with a rated impulse voltage of 4kV and a rated current of 16A. UL and CSA approvals include ratings of 300V and 600V with currents ranging from 10A to 15A, depending on the use group. It features a single connection type across one level, with a total of 10 poles, and a pin spacing of 5.08mm. The connector's dimensions are 53.92mm in width, 12.2mm in height, with a depth of 12mm, and it includes a solder pin length of 3.8mm. It offers variable coding, anti-rotation protection, and is designed for PCB mounting with THT contacts. The connector is orange, made from Polyamide (PA66) with a UL94 V0 flammability class, and uses tin-plated electrolytic copper contacts. It operates within a temperature range of -60 to +100°C and weighs 3.9g. This product is RoHS compliant, packaged in boxes of 100 pieces, and manufactured in Germany with a GTIN of 4044918931274.
