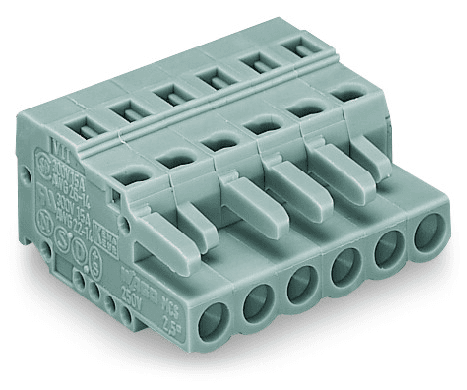

231-119/026-000 WAGO Electrical Connector Accessories

WAGO 231-119/026-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 320V and 630V under different conditions, rated impulse voltage of 4kV, and a rated current of 16A. UL and CSA approvals are noted, with specific ratings for different use groups, including a UL 1977 rating of 600V and 15A. This part features 19 connection points, a single connection type with CAGE CLAMP technology, and supports solid and fine-stranded conductors of various sizes. The physical dimensions include a pin spacing of 5mm, width of 96.5mm, height of 14.3mm, and depth of 26.45mm. It offers variable coding, anti-rotation protection, and is made from Polyamide (PA66) with a flammability class of UL94 V0. The connector is gray, with a tin-plated copper alloy contact material and a chrome-nickel spring steel clamping spring. It operates within a temperature range of -60 to +85°C, has a fire load of 0.641MJ, and weighs 33.3g. Packaged in boxes of 10, it is RoHS compliant without exemptions, manufactured in Germany, and has a GTIN of 4044918342650.
