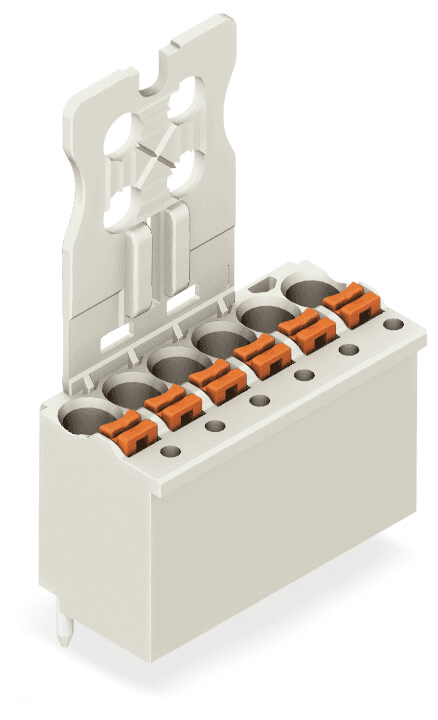

2091-1153/000-1000 WAGO Electrical Connector Accessories

WAGO 2091-1153/000-1000 is a picoMAX Pluggable Connection System connector designed for PCB applications, featuring a push-in CAGE CLAMP connection technology with push-button actuation. It supports a nominal voltage of 160V (III/3), 320V (II/2), and a rated impulse voltage of 2.5kV across different overvoltage categories and pollution degrees, with a rated current of 10A. The connector accommodates 3 connection points, with a single connection type and level, and is compatible with solid and fine-stranded conductors ranging from 0.2 to 1.5mm2 (24 to 14 AWG), including fine-stranded conductors with both insulated and uninsulated ferrules. It has a 90-degree conductor connection direction to PCB, a pole number of 3, and a strip length requirement of 8 to 9mm. Physically, it has a pin spacing of 3.5mm, dimensions of 10.5mm in width, 30mm in height, and 11.4mm in depth, with a solder pin length of 3.6mm and diameter of 1mm. The connector is made from light gray Polyphthalamide (PPA GF) with a flammability class of UL94 V0, and features chrome-nickel spring steel for the clamping spring and electrolytic copper with tin plating for contacts. It operates within a temperature range of -60 to +100°C and is RoHS compliant. The product is packaged in boxes of 100 pieces, with the country of origin being Germany and a GTIN of 4050821366836.
