2042-3014 WAGO Industrial Automation Components

2042-3014 on Powermatic Associates
WAGO

Part#:2042-3014

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

2042-3014 WAGO - Relay module; Nominal input voltage: 24 VDC; 2 make contact; Limiting continuous current: 8 A; Railway; Green status indicator; Module width: 20 mm

Product Details

  • Weight
    36.9000097 g
  • Country Of Origin
    Germany
  • HTS Code
    85364900990
  • Width
    0.815 inches, 20.7 millimeters
  • Weight
    36.900 grams
  • Mounting Type
    Pluggable Module For TOPJOB® S Carrier Terminal Block
  • Package Type
    Box
  • Height
    3.059 inches, 77.7 millimeters
  • Flammability Class
    V0
  • Depth
    2.047 inches, 52 millimeters
  • Country of Origin
    Germany
  • At Rated Voltage
    250 volts
  • Contact Material
    AgNi

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 2042-3014 on Powermatic Associates is $62.47. Order now.


About the product

Wago 2042-3014 is a replacement plug-in relay designed for railway applications with an electromechanical design. It features a green LED indicator and operates with a rated current of 8A continuously and can handle up to 15A AC inrush maximum current for 4 seconds. The relay is designed with 2NO / DPST-NO (Double Pole Single Throw - Normally Open) contact type and recommends a minimum switching load of 12V / 10mA. It operates within an ambient air temperature range of -40°C to +70°C for operation and -40°C to +85°C for storage. The relay has a degree of protection rated at IP20 and is designed to work with a control voltage range of 16.8-30Vdc (24Vdc nominal). It has a net height of H77.7mm x W20.7mm x D52mm, and the contacts are made of Silver-Nickel (AgNi) for durability. The rated impulse voltage (Uimp) is between 0.7 and 1.25 times the control voltage, with a net width accommodating a 250Vac maximum switching voltage. The rated insulation voltage (Ui) is 4 kV, and it features plug-in power consumption with Normally Closed (NC) auxiliary contacts. The relay's short circuit breaking rating and manufacturer product specifications include switching times of 8ms for contacts closing and 6ms for contacts opening. It operates at a frequency of 250 V and is designed for up to 10,000,000 operations, with the number of Normally Closed (NC) circuits rated for 100,000 operations.


Manufacturer warranty

2042-3014 WAGO

$62.47

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$62.47

$62.47 each

Average response time: 11 minutes

Worldwide Shipping and Delivery


Secure Payment Processing


Warranty


Responsive Customer Support

Got Questions? We've Got Answers!


Need more details?

Feel free to chat with us

Compare 2042-3014 with other Industrial Automation Components products

Weight

Country Of Origin

HTS Code

Width

Mounting Type

Package Type

Height

Flammability Class

Depth

Country of Origin

Selected product

2042-3014
Backordered
2042-3014
WAGO

2042-3014 WAGO - Relay module; Nominal input voltage: 24 VDC; 2 make contact; Limiting continuous cu...

Weight36.9000097 g

Country Of OriginGermany

HTS Code85364900990

Width0.815 inches, 20.7 millimete...

Mounting TypePluggable Module For TOPJOB®...

Package TypeBox

Height3.059 inches, 77.7 millimete...

Flammability ClassV0

Depth2.047 inches, 52 millimeters

Country of OriginGermany

788-384
10 in stock
788-384
WAGO

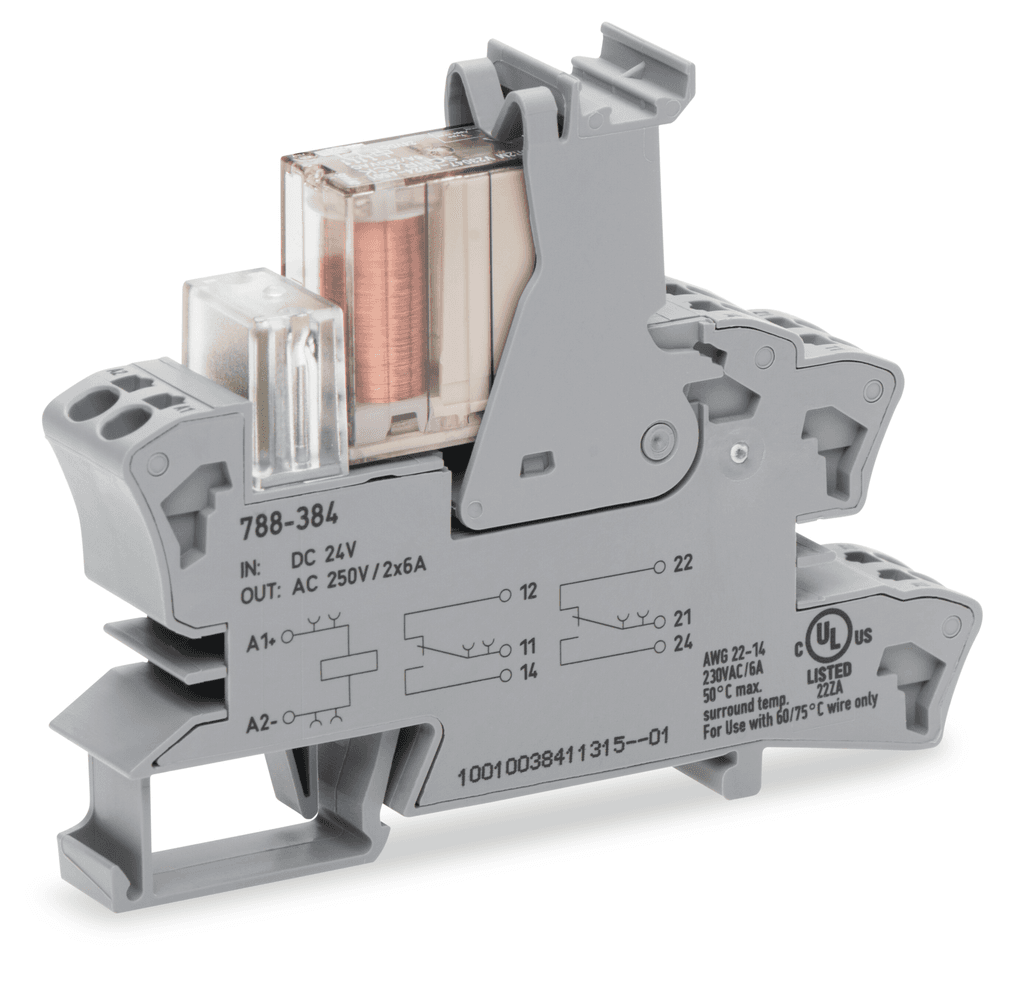

788-384 WAGO - Relay module with driven contacts; Nominal input voltage: 24 VDC; 2 changeover contac...
