2003-6645 WAGO Industrial Automation Components

2003-6645 on Powermatic Associates
WAGO

Part#:2003-6645

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

2003-6645 WAGO - Multilevel installation terminal block; L/L/PE

Product Details

  • Weight
    20.05200527 g
  • Country Of Origin
    China
  • HTS Code
    85369010000
  • Width
    0.205 inches, 5.2 millimeters
  • Weight
    20.052 grams
  • Voltage
    250 volts, 300 volts
  • Package Type
    Box
  • Strip Length
    0.47 inches, 12 millimeters
  • Operating Temperature
    105 degrees celsius
  • Insulation Material
    Polyamide
  • Current
    20 amperes, 24 amperes
  • Height
    110 millimeters, 4.331 inches
  • Mounting Type
    DIN-35 Rail
  • Flammability Class
    V0
  • Country of Origin
    China
  • Color
    Gray
  • Conductor Size
    12 american wire gauge, 4 millimeters
  • Conductor Material
    Copper
  • Actuator
    Operating Tool

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 2003-6645 on Powermatic Associates is $10.20. Order now.


About the product

Wago 2003-6645 is a terminal designed for multilevel installation feed-through/thru and ground/earthing terminal block applications. It features push-in CAGE CLAMP spring connections for secure and efficient wiring. This terminal block is rated for currents up to 24A (IEC), 28A (IEC), 20A (UL), and 20A (CSA), and is designed with a triple-deck configuration. The net height is specified for 4 kV (IEC) and 6 kV (IEC) with a rated impulse voltage (Uimp) of 5.2 mm. Its net width accommodates 2 feed-through poles plus a protective-earth (2P+PE) connection. The terminal is designed for mounting on a DIN-35 rail and comes in gray. It has dimensions of H110mm x W5.2mm x D45.2mm and is suitable for 0.25mm2 to 4mm2 fine stranded or solid conductors, as well as #22AWG to #12AWG fine stranded or solid conductors, with a 2.5mm2 nominal cross-section. The terminal block is made from Polyamide (PA) 66 and supports 5-wires (2 push-in + 3 push-in) (2+3) connections. It is rated for voltages up to 250 V (IEC), 400 V (IEC), 300 V (UL), and 300 V (CSA). This part is part of the TOPJOB S series.


This item can ship within 0 day!

Manufacturer warranty

2003-6645 WAGO

$10.20

Your price can be lower.
Log in or Create account to check your discount

Stock:

0

Select Qty:

$10.20

$10.20 each

Worldwide Shipping and Delivery


Secure Payment Processing


Warranty


Responsive Customer Support

Got Questions? We've Got Answers!


Need more details?

Feel free to chat with us

Compare 2003-6645 with other Industrial Automation Components products

Weight

Country Of Origin

HTS Code

Width

Voltage

Package Type

Strip Length

Operating Temperature

Insulation Material

Current

Selected product

2003-6645
Backordered
2003-6645
WAGO

2003-6645 WAGO - Multilevel installation terminal block; L/L/PE

Weight20.05200527 g

Country Of OriginChina

HTS Code85369010000

Width0.205 inches, 5.2 millimeter...

Voltage250 volts, 300 volts

Package TypeBox

Strip Length0.47 inches, 12 millimeters

Operating Temperature105 degrees celsius

Insulation MaterialPolyamide

Current20 amperes, 24 amperes

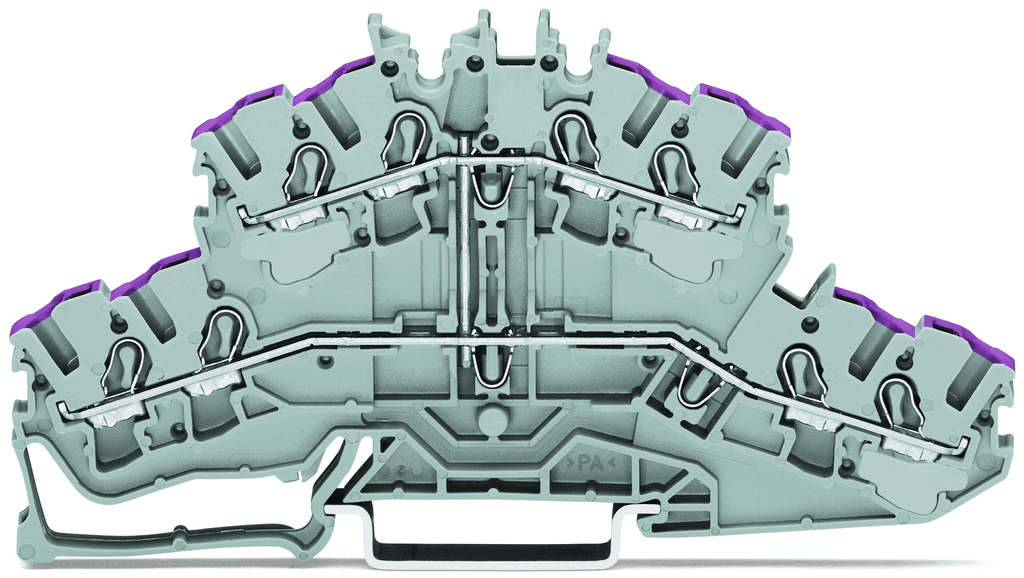

2002-2408
6 in stock
2002-2408
WAGO

2002-2408 WAGO - TOPJOB®S double-deck terminal block; internally commoned; rail mount; 8-conductor; ...

Weight16.14200425 g

Country Of OriginChina

HTS Code85369010000

Width-

Voltage-

Package Type-

Strip Length-

Operating Temperature-

Insulation Material-

Current20 amperes, 24 amperes

2002-2201
68 in stock
2002-2201
WAGO

2002-2201 WAGO - TOPJOB®S double-deck terminal block; through/through (L/L); rail mount; 2-conductor...

Weight10.15300267 g

Country Of OriginGermany

HTS Code85369010000

Width-

Voltage-

Package Type-

Strip Length-

Operating Temperature-

Insulation Material-

Current20 amperes, 24 amperes

About the manufacturer

WAGO

Powermatic Associates is an authorized WAGO distributor, proud to offer a diverse range of high-quality and innovative industrial automation solutions. As a leading manufacturer, WAGO excels in designing and producing cutting-edge electrical interconnection, automation, and interface electronics technologies. Powermatic Associates leverages WAGO's expertise to provide customers with top-of-the-lin...

Recently viewed products

Relevant products

FAQ

What is the price of 2003-6645?
Purchase the 2003-6645 from Powermatic Associates at the price of $10.20. Order today.

Out if stock but available for backorder.

2003-6645 WAGO - Multilevel installation terminal block; L/L/PE
