TTM100C-103A-G1/8-LI6-H1140-L013 Turck Temperature Sensors

Turck TTM100C-103A-G1/8-LI6-H1140-L013 TTM100C-103A-G1/8-LI6-H1140-L013 Temperature Detection, With Current Output
Turck

Part#:TTM100C-103A-G1/8-LI6-H1140-L013

Manufacturer:Turck

Alt. Part#:9910549

Product Lifecycle:Active

Get a quick Quote!

TTM100C-103A-G1/8-LI6-H1140-L013 Temperature Detection, With Current Output

About the manufacturer: Turck is one of the manufacturers that offers Temperature Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the TTM100C-103A-G1/8-LI6-H1140-L013 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    34 g
  • Ambient temperature
    -40…+80 °C
  • Housing material
    Stainless-steel/Plastic, 1.4404 (AISI 316L)
  • Protection class
    IP67
  • Immersion depth (L)
    13  mm
  • Measuring range
    0…100 °C
  • Electrical connection
    Connector, M12 × 1
  • Current output
    4…20 mA
  • Operating voltage
    5…32 VDC
  • Electrical output
    Current output (2-wire)
  • Process connection
    G1/8'' male thread
  • Detection type
    medium contact
  • Design
    Without display (integrated probe)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TTM100C-103A-G1/8-LI6-H1140-L013 Description

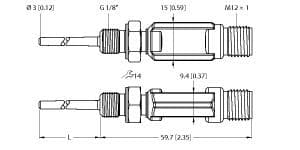

Turck TTM100C-103A-G1/8-LI6-H1140-L013 is a sensor designed for temperature measurement within the TTM series. This miniature temperature sensor/transmitter/thermosensor features an RTD Pt1000 Class A probe encased in a 1.4401 (316) stainless steel housing. The probe has a diameter of 3mm and is 13mm long. It comes pre-equipped with a 4-pin M12 Eurofast QD male connector and a G1/8" (1/8" BSPP) threaded male connection port. The sensor operates on a supply voltage of 10-24Vdc, including nominal values of 12Vdc and 24Vdc, and can function in ambient air temperatures ranging from -40°C to +80°C. It offers a degree of protection of IP67 and can withstand pressures up to 100bar (1450psi). The temperature measurement range of this sensor is 0°C to +100°C. It includes protection functions against short-circuit and reverse polarity, and features 1 x analog output (4-20mA) for transmitting measurements.

Related documents TTM100C-103A-G1/8-LI6-H1140-L013 Specs

TTM100C-103A-G1/8-LI6-H1140-L013 English.pdf

Manufacturer warranty

$173.00

Request a quote, and we will send availability within minutes.

Select Qty:

$173.00

$173.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
