TP-504A-TRI1.5-H1141-L100 Turck Temperature Sensors

Name: TP-504A-TRI1.5-H1141-L100
Brand: Turck

Turck TP-504A-TRI1.5-H1141-L100 TP-504A-TRI1.5-H1141-L100 Temperature Detection, Probe

Part#:TP-504A-TRI1.5-H1141-L100

Manufacturer:Turck

Alt. Part#:9910860

Product Lifecycle:Active

Get a quick Quote!

TP-504A-TRI1.5-H1141-L100 Temperature Detection, Probe

About the manufacturer: Turck is one of the manufacturers that offers Temperature Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the TP-504A-TRI1.5-H1141-L100 Turck price in the box on the right side or send a quick quote.

Product Details

Weight
113 g
Protection class
IP67
Ambient temperature
-40…+120 °C
Housing material
Stainless steel, 1.4404 (AISI 316L)
Electrical output
Resistance
Electrical connection
Connector, M12 × 1
Process connection
Tri-Clamp 1 1/2”
Immersion depth (L)
100 mm
Design
Temperature probe
Measuring range
-50…120 °C
Detection type
medium contact

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TP-504A-TRI1.5-H1141-L100 Description

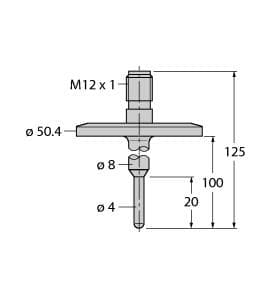

Turck TP-504A-TRI1.5-H1141-L100 is a sensor designed for temperature measurement within the TP series. It features an instrumentation temperature probe or thermosensor equipped with an RTD Pt100 Class A element. The probe is made from 1.4404 (316L) stainless steel with a plastic housing, having a diameter of 4mm and a length of 100mm. It comes pre-equipped with a 4-pin M12 Eurofast QD male connector and a 1-1/2" (1.5") tri-clamp connection port. This sensor operates in ambient air temperatures ranging from -40°C to +120°C and can withstand pressures up to 40bar (580psi) with a temperature measurement range of -50°C to +120°C. It is protected against reverse polarity, has a degree of protection of IP67, and a response time between 3 to 10 seconds.
