TP-306A-CF-H1141-L1000 Turck Temperature Sensors

Turck TP-306A-CF-H1141-L1000 TP-306A-CF-H1141-L1000 Temperature Detection, Probe
Turck

Part#:TP-306A-CF-H1141-L1000

Manufacturer:Turck

Alt. Part#:9910479

Product Lifecycle:Active

Get a quick Quote!

TP-306A-CF-H1141-L1000 Temperature Detection, Probe

About the manufacturer: Turck is one of the manufacturers that offers Temperature Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the TP-306A-CF-H1141-L1000 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    33 g
  • Measuring range
    -50…105 °C
  • Electrical connection
    Connector, M12 × 1
  • Protection class
    IP67
  • Electrical output
    Resistance
  • Immersion depth (L)
    1000  mm
  • Detection type
    medium contact
  • Process connection
    For compression fittings, for direct mounting
  • Housing material
    Stainless steel, 1.4404 (AISI 316L)
  • Design
    Temperature probe

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TP-306A-CF-H1141-L1000 Description

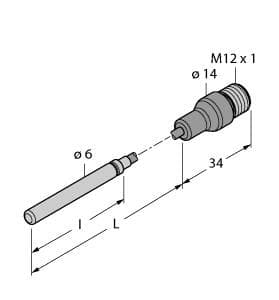

Turck TP-306A-CF-H1141-L1000 is a sensor designed for temperature measurement within the TP series. This sensor features an instrumentation temperature cable probe or thermosensor equipped with an RTD Pt100 Class A element. It is constructed from 1.4404 (316L) stainless steel for the probe and has a plastic housing, ensuring durability and compatibility with various environments. The probe has a diameter of 6mm and is 1m (1000mm) long. It comes pre-equipped with a 4-pin M12 Eurofast QD male connector and a 6mm diameter compression fitting connection port for easy installation. The sensor operates effectively in ambient air temperatures ranging from -20°C to +90°C and can measure temperatures between -50°C and +105°C. It is designed to withstand pressures up to 15bar (217psi) and offers a degree of protection rated at IP67, making it suitable for challenging conditions. Additionally, it includes protection functions against reverse polarity and has a response time between 8 to 20 seconds.

Related documents TP-306A-CF-H1141-L1000 Specs

TP-306A-CF-H1141-L1000 English.pdf
