TB-4M8M-3-0.5-WSCV 8.6T Turck I/O Junction Boxes

Name: TB-4M8M-3-0.5-WSCV 8.6T
Brand: Turck

Turck TB-4M8M-3-0.5-WSCV 8.6T TB-4M8M-3-0.5-WSCV 8.6T M8, 3 pole I/O port with cable homerun

Part#:TB-4M8M-3-0.5-WSCV 8.6T

Manufacturer:Turck

Alt. Part#:UX08929

Product Lifecycle:Active

Get a quick Quote!

TB-4M8M-3-0.5-WSCV 8.6T M8, 3 pole I/O port with cable homerun

About the manufacturer: Turck is one of the manufacturers that offers I/O Junction Boxes that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the TB-4M8M-3-0.5-WSCV 8.6T Turck price in the box on the right side or send a quick quote.

Product Details

Weight
1000 g
Design port
M12 × 1
Housing material
Plastic, PA 6 GF30
Homerun Type
M12 x 1 with cable
Homerun Exit Location
Side exit
Approvals
CE, RoHS
Number of ports
4
Voltage
30 V

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TB-4M8M-3-0.5-WSCV 8.6T Description

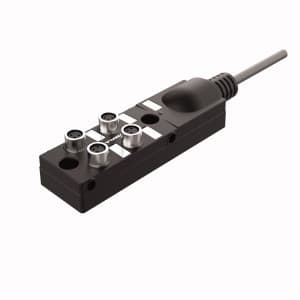

Turck TB-4M8M-3-0.5-WSCV 8.6T is a passive junction box from the TB series, featuring a side-exit homerun with 1 signal per port. It is constructed with a PA6-GF30 plastic housing in black and designed for surface mounting. This junction box offers a connection capacity of 4 ports through 4 x 3-pin M8 picofast connectors with a 50cm / 20" pigtail, terminated with an 8-pin M12 eurofast male angled homerun connector. It operates at a supply voltage of 30Vdc and is rated with a degree of protection of IP67, ensuring its suitability for various industrial applications.
