PKG 4M-10 Turck Cordsets

Turck PKG 4M-10 PKG 4M-10 Actuator and Sensor Cordset, Connection Cable
Turck

Part#:PKG 4M-10

Manufacturer:Turck

Alt. Part#:U99-10780

Product Lifecycle:Active

In-stock parts: 1

Sep 28, 2024

PKG 4M-10 Actuator and Sensor Cordset, Connection Cable

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the PKG 4M-10 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    264 g
  • Cable length (L)
    10.0  m
  • Approvals
    UL Listed, CSA, CE, RoHS
  • Cable Jacket Color
    Yellow
  • Cable Jacket Material
    PVC
  • Current
    2 A
  • Voltage
    125 V
  • Application
    Actuator and Sensor
  • Material coupling/housing A
    Brass
  • Connector A - Number of Pins
    4
  • Connector A - Style
    Straight, Female
  • Connector A
    M8 × 1
  • Number of Conductors
    4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PKG 4M-10 Description

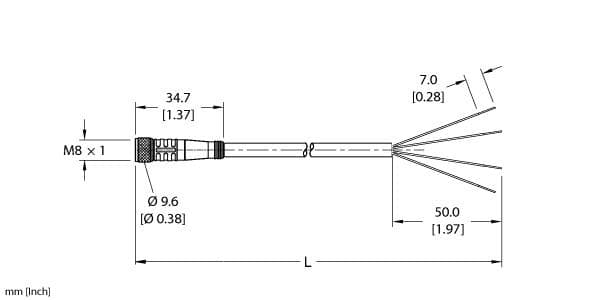

Turck PKG 4M-10 is a single-ended mating cable/cordset designed with a special cable that features a 4.4mm cable sheath outer diameter. It is equipped with a 4-pin M8 picofast female connector (M8x1 threaded coupling nut) and bare end flying leads, falling under the M8 picofast to bare leads sub-range. The cable has a length of 10 meters (approximately 32 feet) and is constructed with a nickel-plated brass coupling nut and a PVC jacket in yellow. It is rated for a current of 2A and a voltage of 125Vac, with a 4-wire, 4 x #26AWG cross-section. The PKG 4M-10 offers a degree of protection rated at IP67, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P, ensuring its suitability for various environmental conditions.

Related documents PKG 4M-10 Specs

PKG 4M-10 edb_U99-10780_eng_us.pdf
