RU40U-M18MS-UN8X2-H1151 Turck Ultrasonic Sensors

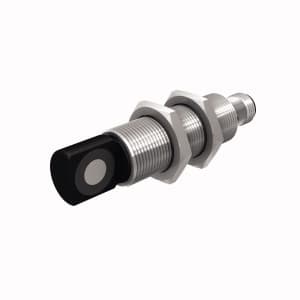

Turck RU40U-M18MS-UN8X2-H1151 RU40U-M18MS-UN8X2-H1151 Ultrasonic Sensor, Diffuse Mode Sensor
Turck

Part#:RU40U-M18MS-UN8X2-H1151

Manufacturer:Turck

Alt. Part#:1610082

Product Lifecycle:Active

Get a quick Quote!

RU40U-M18MS-UN8X2-H1151 Ultrasonic Sensor, Diffuse Mode Sensor

About the manufacturer: Turck is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the RU40U-M18MS-UN8X2-H1151 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    76 g
  • Housing surface
    Nickel Plated
  • Protection class
    IP67
  • Housing material
    Metal
  • Ambient temperature
    -25…+70 °C
  • Housing quality
    CuZn
  • Special features
    Compact
  • Design
    Threaded barrel
  • Construction size
    M18 x 1
  • Output function
    NPN
  • Electrical connection
    Connector, M12 × 1
  • Range
    25…400 mm
  • Radiation direction
    side
  • Function
    Proximity
  • Operating voltage
    15…30 VDC
  • Switching element function
    NO/NC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RU40U-M18MS-UN8X2-H1151 Description

Turck RU40U-M18MS-UN8X2-H1151 is an ultrasonic sensor from the RU40U series, designed with a 9° sonic cone for diffuse mode side sensing. This sensor features ultrasonic sensor TEACH-by-wire functionality and is constructed with a chrome-plated brass housing and a sensing face made of PET (Polyethylene terephthalate), PU (Polyurethane), and Epoxy. It comes pre-equipped with a 5-pin M12 Eurofast QD male connector for connectivity. The sensor operates on a supply voltage of 15-30Vdc, with a nominal voltage of 24Vdc, and can function within an ambient air temperature range of -25°C to +70°C. It boasts an IP67 degree of protection, indicating its dust tightness and immersion resistance. The shape of the sensor is an M18 partially threaded medium length cylindrical/barrel, and it features one digital output (15-30Vdc; NPN; 150mA max.). The sensing distance ranges from 25-400mm, with a no-load current consumption of 50mA. It has a maximum switching frequency of 10.4Hz, and includes protection functions against short-circuit (pulsed) and reverse polarity. The operating mode can be programmed as NO (Normally Open) or NC (Normally Closed). The thread size is M18, with a transmission frequency of 300kHz / 0.3 MHz, and it offers a measurement accuracy (resolution) of 0.5mm. The control circuit is rated for a current of 50mA / 0.05 A.

Related documents RU40U-M18MS-UN8X2-H1151 Specs

RU40U-M18MS-UN8X2-H1151 English.pdf

Manufacturer warranty
